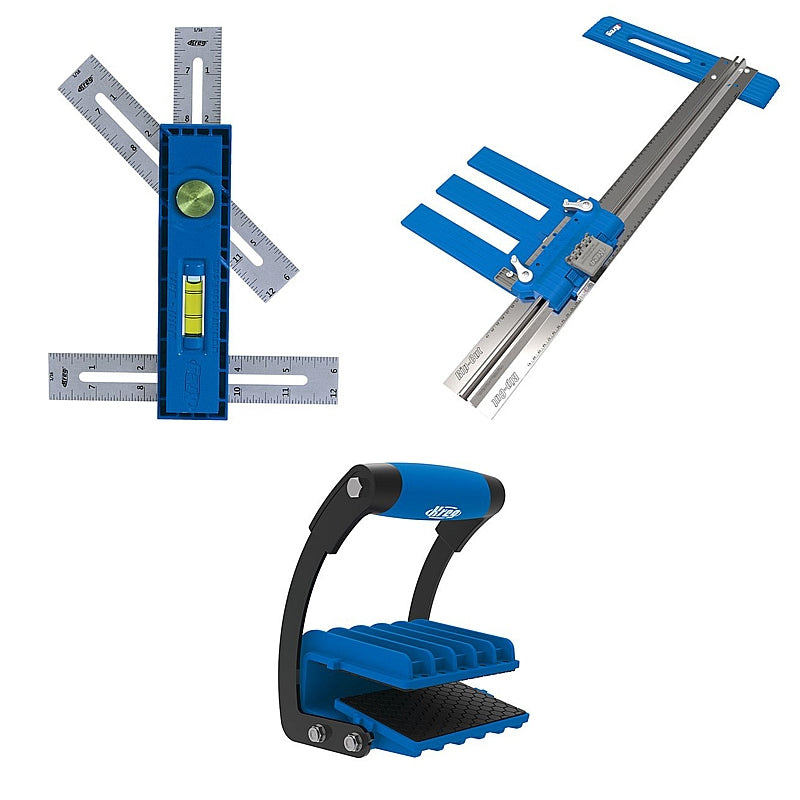

Kreg Rip-Cut, Multi-Purpose Layout Tool and Panel Carrier | COMBO 405

1 x Kreg Rip-Cut™ Circular Saw Edge Guide | KMA2685-INT.

The Kreg Rip-Cut™ Circular Saw Edge Guide turns an ordinary circular saw into a precision edge-guided cutting tool for making straight, accurate and repeatable cuts in plywood, MDF and other large sheet materials. Instead of taking a large sheet to a stationary saw, the Rip-Cut™ allows you to take your circular saw to the material, making large sheets easier to break down while working on your own.

The Rip-Cut™ can make rip cuts and crosscuts up to 24" (610mm) wide without requiring you to measure and mark every individual cut or manually keep the saw aligned with a layout line. Its long edge guide follows the straight edge of the sheet, while the built-in measuring scale and precision cursor allow you to set the required cutting width. Once the width is set, you can make a single cut or produce multiple pieces at the same size without repeating the measuring and layout process for every piece.

To use the system, mount a compatible circular saw onto the Universal Saw Sled and slide the sled onto the aluminium guide rail. The Universal Saw Sled accepts most circular saws with either left- or right-positioned blades. After completing the simple one-time calibration, adjust the sled to the required cutting width using the built-in measuring scale and adjustable precision cursor. Then hold the edge guide against the edge of the sheet and guide the saw through the cut.

The oversized edge guide helps provide precise control throughout the cutting process, while its reversible, dual-position design accommodates both left- and right-handed use. Constructed from impact-resistant polymer and aluminium, the Rip-Cut™ combines a practical edge-guided cutting system with the portability of a circular saw for sheet-material cutting applications.

Straight, Repeatable Cuts Without Layout Lines:

The Rip-Cut™ uses the edge of the sheet material as its reference point. Therefore, you do not need to mark a conventional cutting line for every cut or concentrate on manually following a line with the saw. Set the required width using the measuring scale and precision cursor, position the edge guide against the sheet and guide the saw through the material.

Ideal for Breaking Down Large Sheet Materials:

Rather than moving a large sheet to a saw, the Rip-Cut™ allows you to bring the circular saw and guide to the workpiece. This makes it easier to cut down large sheets, particularly when working by yourself. It is designed for rip cuts and crosscuts in plywood, MDF and other sheet goods.

Repeat Multiple Cuts from One Setup:

When several pieces need to be cut to the same width, the Rip-Cut™ can remain at the selected setting. This allows multiple pieces of the same size to be produced without measuring, marking and laying out the cutting width again for each individual piece.

Features & Benefits:

• Up to 24" (610mm) Cutting Capacity: Makes rip cuts and crosscuts up to 24" (610mm) wide in compatible sheet materials.
• Precision Edge-Guided Cutting: Turns a compatible circular saw into an edge-guided cutting system for straight, accurate and repeatable cuts.
• Built-In Measuring Scale: Allows the required cutting width to be set directly on the guide without measuring and marking every individual cut.
• Precision Cursor: Provides a clear reference for setting the required cutting width and can be adjusted during calibration.
• Universal Saw Sled: Accepts most circular saws for versatile compatibility.
• Left- or Right-Blade Saw Compatibility: The Universal Saw Sled accommodates most circular saws with either blade configuration.
• Oversized Edge Guide: Provides controlled guidance against the edge of the sheet throughout the cut.
• Reversible Edge Guide: Dual-position design accommodates left- or right-handed use.
• Repeatable Cutting: Allows multiple pieces to be cut to the same size using a single setup.
• No Layout Lines Required: Eliminates the need to measure, mark and follow a conventional cutting line for each cut.
• Material-to-Saw Convenience: Allows you to take the saw to large sheet materials rather than moving the material to a stationary saw.
• One-Time Calibration: Once the saw is mounted and calibrated, the measuring scale and precision cursor can be used to set subsequent cutting widths.
• Impact-Resistant Polymer Construction: Forms part of the durable guide system construction.
• Aluminium Guide Rail: Provides the rail system used by the Universal Saw Sled during cutting.
• Accu-Cut™ Compatibility: Designed to be compatible with the Kreg Accu-Cut™ system.

How to Use:

1. Mount a compatible circular saw onto the Universal Saw Sled.
2. Slide the Universal Saw Sled onto the aluminium guide rail.
3. Complete the required one-time calibration.
4. Set the required cutting width, up to 24" (610mm), using the built-in measuring scale and precision cursor.
5. Lock the saw sled at the required cutting width.
6. Position the edge guide firmly against the straight edge of the sheet material.
7. Guide the circular saw and sled along the rail while keeping the edge guide against the sheet.
8. For repeated pieces of the same width, retain the existing setting and make the additional cuts without repeating the measuring and layout process.

Applications:

• Rip cutting plywood and other sheet goods
• Crosscutting plywood and sheet materials
• Cutting MDF sheets
• Breaking down large sheets into manageable sections
• Making repeated pieces of the same width
• Edge-guided circular saw cutting
• Cutting large sheet materials while working independently

Specifications:

• Code: KMA2685-INT
• Product Type: Circular Saw Edge Guide
• Cutting Capacity: Up to 24" (610mm) wide
• Cut Types: Rip Cuts and Crosscuts
• Suitable Materials: Plywood, MDF and Other Sheet Goods
• Construction: Impact-Resistant Polymer and Aluminium
• Sled Adjustment Range: 1-24" (25.4-610mm) Cuts
• Edge Guide: Dual-Position, Reversible for Left- or Right-Handed Use
• Cursor: Adjustable Precision Lens Cursor for Calibration
• Saw Compatibility: Accepts Most Circular Saws
• Blade Configuration Compatibility: Left- or Right-Blade Circular Saws
• System Compatibility: Kreg Accu-Cut™

Scope of Delivery:

• 1 x Universal Saw Sled
• 1 x Aluminium Guide Rail
• 1 x Precision Edge Guide
• 1 x Owner's Manual

1 x Kreg Multi-Mark Multi-Purpose Layout Tool | KMA2900.

The Kreg Multi-Mark™ Layout Tool is a versatile marking, measuring and layout tool designed to simplify a wide variety of household, workshop and jobsite tasks. Its compact design combines several useful layout functions in one convenient tool, making it suitable for transferring measurements, laying out mitred corners, checking alignment and straightening project components.

The adjustable ruler can be positioned at 0°, 45° and 90°, providing three scale configurations for different measuring and layout requirements. It also slides to accommodate different positions and measurements. Both imperial and metric markings are provided, with a measuring range of 0-6" (0-15cm), allowing measurements to be taken or transferred using the preferred scale.

In addition to its measuring and marking functions, the Multi-Mark™ incorporates a built-in torpedo level for checking alignment and a 3/16" (5mm) reveal gauge for consistent layout work. Its combination of plastic polymer and stainless steel construction provides a durable yet compact tool that can be kept close at hand for everyday measuring and layout tasks.

Three Adjustable Scale Positions:

The Multi-Mark™ ruler adjusts to three positions at 0°, 45° and 90°. This allows the same compact tool to perform different measuring, marking and layout tasks, including transferring measurements and laying out mitred corners. The ruler also slides, providing additional adjustment for positioning it according to the task.

Imperial & Metric Measuring:

Both imperial and metric markings are incorporated into the scale, allowing measurements to be taken using either system. The tool provides a measuring range of 0-6" (0-15cm), making it convenient for a variety of smaller measuring and layout applications.

Built-In Torpedo Level:

A built-in torpedo level adds alignment and levelling capability without requiring a separate tool. This makes the Multi-Mark™ useful when aligning and straightening project components as part of measuring, marking and assembly work.

Features & Benefits:

• Multipurpose Layout Tool: Combines several common measuring, marking and alignment functions in one compact tool.
• Three Scale Configurations: The ruler adjusts to 0°, 45° and 90° positions for different measuring and layout tasks.
• Sliding Ruler: Allows the ruler position to be adjusted according to the measurement or layout requirement.
• Imperial & Metric Markings: Provides both measurement systems for greater flexibility when working on different projects.
• 0-6" (0-15cm) Measuring Range: Provides a practical range for everyday marking, measuring and layout work.
• Built-In Torpedo Level: Helps check the level and alignment of project components without requiring a separate level.
• 3/16" (5mm) Reveal Gauge: Provides a convenient built-in reference for consistent reveal measurements.
• Measurement Transfer: Helps transfer an existing measurement accurately from one position or component to another.
• Mitred Corner Layout: The adjustable ruler can be used when laying out mitred corners.
• Alignment & Straightening: Useful for aligning and straightening project parts during layout and assembly.
• Durable Construction: Manufactured from plastic polymer and stainless steel.
• Compact Design: Combines multiple functions in a convenient format for household, workshop and jobsite use.

Applications:

• General measuring and marking
• Transferring measurements
• Laying out mitred corners
• 45° and 90° layout work
• Checking level and alignment
• Aligning and straightening project parts
• Setting a 3/16" (5mm) reveal
• Household measuring and layout tasks
• Workshop projects
• Jobsite measuring and layout work

Specifications:

• Code: KMA2900
• Product Type: Multipurpose Marking, Measuring & Layout Tool
• Scale Configurations: 3
• Ruler Positions: 0°, 45° and 90°
• Ruler Adjustment: Adjustable and Sliding
• Measurement Scales: Imperial and Metric
• Measuring Range: 0-6" (0-15cm)
• Reveal Gauge: 3/16" (5mm)
• Level: Built-In Torpedo Level
• Construction: Plastic Polymer and Stainless Steel
• Dimensions: 9.25" x 5" x 1.25" (235 x 127 x 31.8mm)

Scope of Delivery:

• 1 x Kreg Multi-Mark™ Layout Tool
• 1 x Owner's Manual

1 x Kreg Panel Carrier | KMA3000.

The Kreg Panel Carrier makes it easier to lift, carry and move large sheet materials, including full-size 4 x 8 ft (1.22 x 2.44m) sheets. Designed for one-handed carrying, it allows a single person to move large panels with less strain while helping protect the material from damage. Simply position the large pads over the panel, lift the ergonomic handle and the carrier automatically clamps onto the material.

The self-adjusting design accommodates material thicknesses from 0 to 3/4" (19mm), eliminating the need to manually set the carrier for different sheets within this range. As you lift the handle, the pads tighten their grip on the material, helping prevent the panel from slipping while it is being carried. The carrier has a maximum weight capacity of 100 lb (45kg), making it suitable for handling a variety of sheet goods.

For additional grip, the large contact pads feature Kreg GripMaxx™ anti-slip surfaces. These pads provide a strong, secure hold while helping prevent damage, dents and marks on the material, including fragile plywood veneers. This combination of secure clamping and material protection makes the Panel Carrier useful when working with sheet materials that need to be handled carefully.

The ergonomic carrying handle features thick, durable padding to provide greater comfort and prevent the handle from digging into your hand while carrying material. Whether you are taking sheets from a storage rack, transporting them from one location to another or repositioning panels during cutting and project work, the Kreg Panel Carrier provides a simple clamp, lift and carry solution.

Carry Full-Size Sheets More Easily:

The Panel Carrier is designed to help one person move large sheet goods, including full 4 x 8 ft (1.22 x 2.44m) sheets. Instead of trying to grip the edge of a large panel directly, the carrier provides a padded ergonomic handle and secure clamping pads, making large sheets easier to control while moving them.

Automatic Clamping Action:

There is no need to manually adjust the carrier every time the material thickness changes within its specified range. Position the pads over the sheet and lift the handle to clamp onto the material. The carrier automatically adjusts to materials from 0 to 3/4" (19mm) thick, while increased lifting force causes the pads to squeeze more firmly to help prevent slipping.

GripMaxx™ Material Protection:

The large clamping pads incorporate Kreg GripMaxx™ anti-slip surfaces to provide a strong and secure grip on the sheet. At the same time, the pads are designed to hold the material without causing damage, dents or marks, making the carrier suitable for handling materials such as plywood with fragile veneers.

Features & Benefits:

• One-Handed Panel Carrying: Ergonomic design allows large and heavy sheet materials to be carried using one hand.
• Full-Sheet Capability: Designed to carry full 4 x 8 ft (1.22 x 2.44m) sheets as well as other sizes of sheet goods.
• 100 lb (45kg) Weight Capacity: Provides the carrying capacity required for a variety of large sheet materials.
• Self-Adjusting Clamping: Automatically adjusts to material thicknesses from 0 to 3/4" (19mm).
• GripMaxx™ Anti-Slip Surfaces: Help maintain a strong and secure grip on the panel while it is being carried.
• Material-Friendly Grip: Large pads are designed to hold sheet material securely without causing damage, dents or marks.
• Suitable for Fragile Veneers: The GripMaxx™ pads provide secure contact while helping protect delicate plywood veneer surfaces.
• Grip Tightens as You Lift: The more the handle is lifted, the tighter the pads squeeze the material to help prevent slipping.
• Padded Ergonomic Handle: Thick, durable padding provides greater carrying comfort and helps prevent the handle from digging into your hand.
• Simple Clamp, Lift & Go Operation: Position the carrier over the panel, lift the handle to engage the clamping action and carry the material.
• Versatile Sheet Handling: Useful for collecting sheets from storage racks, transporting panels and repositioning material during cutting and project work.

How to Use:

1. Position the Kreg Panel Carrier over the edge of the sheet material.
2. Slide the large GripMaxx™ pads over the panel.
3. Lift the padded handle to engage the clamping action.
4. Allow the carrier to automatically adjust to the material thickness, up to 3/4" (19mm).
5. Lift and carry the sheet using the ergonomic handle.
6. Maintain control of the panel while transporting or repositioning it.

Applications:

• Carrying full 4 x 8 ft (1.22 x 2.44m) sheets
• Moving plywood and other large panels
• Handling sheet goods with fragile plywood veneers
• Removing sheet materials from storage or retail racks
• Transporting panels from one location to another
• Repositioning sheet materials during cutting
• Moving panels around the workshop or project area

Specifications:

• Code: KMA3000
• Product Type: Panel Carrier
• Maximum Weight Capacity: 100 lb (45kg)
• Material Thickness Capacity: 0 to 3/4" (19mm)
• Sheet Size Capability: Suitable for full 4 x 8 ft (1.22 x 2.44m) sheets and other sizes of sheet goods
• Adjustment: Self-adjusting clamping action
• Grip Surface: GripMaxx™ Anti-Slip Surfaces
• Handle: Padded Ergonomic Handle
• Carrying Method: One-Handed

Scope of Delivery:

• 1 x Kreg Panel Carrier

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
