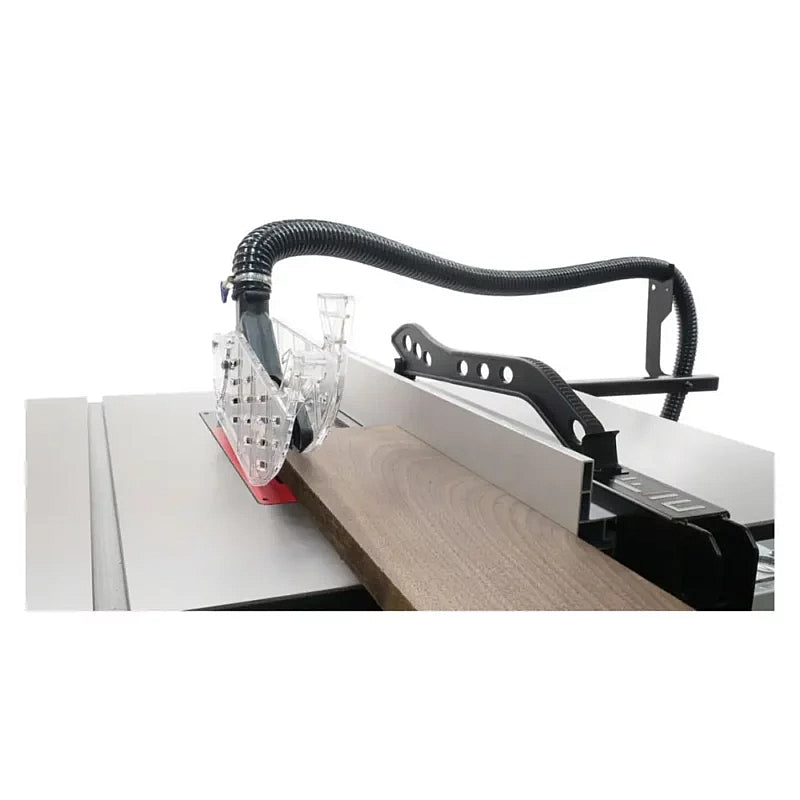

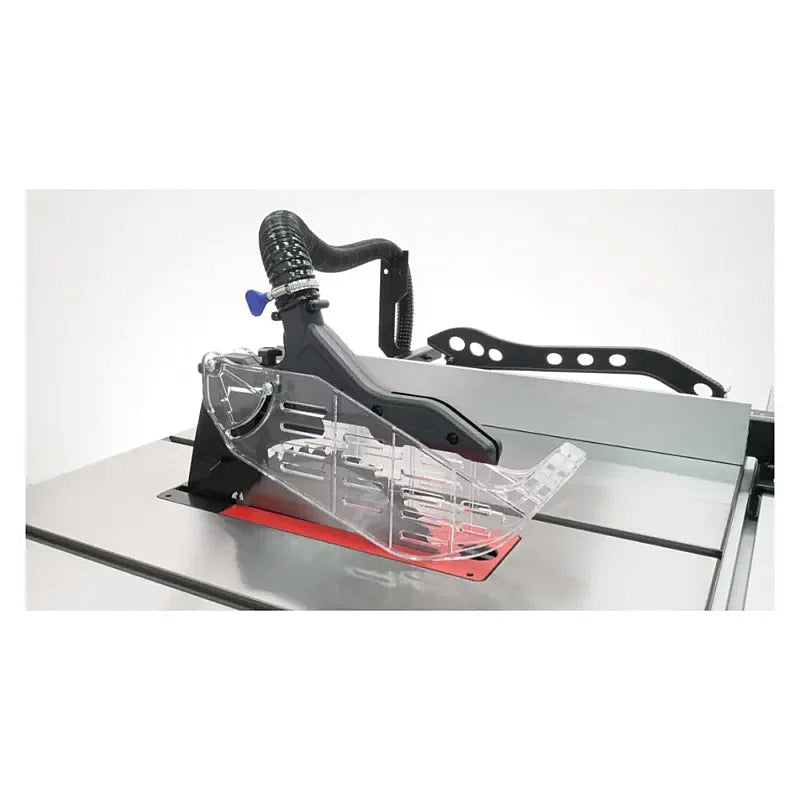

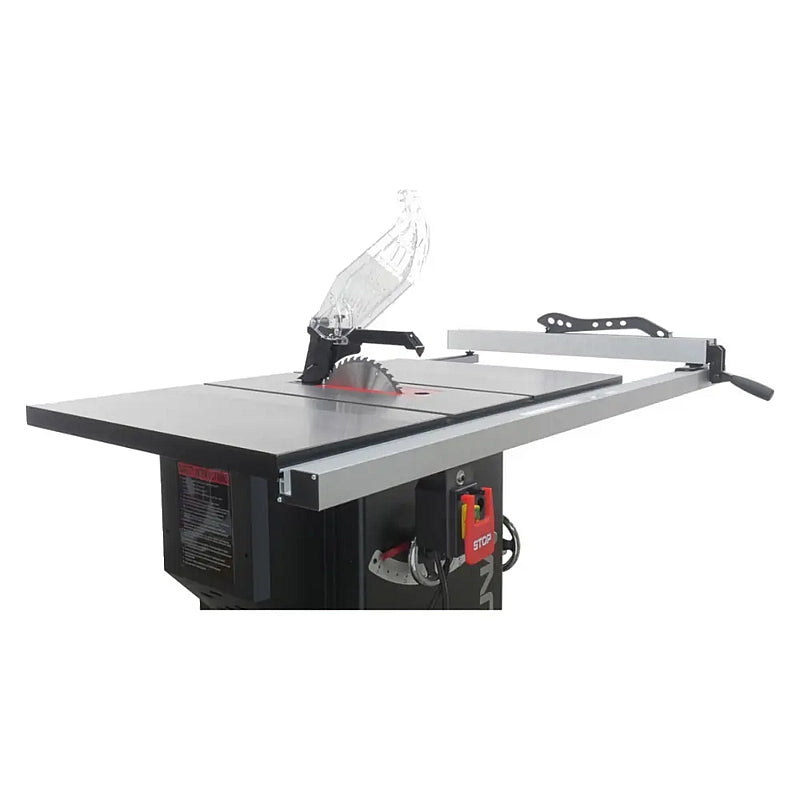

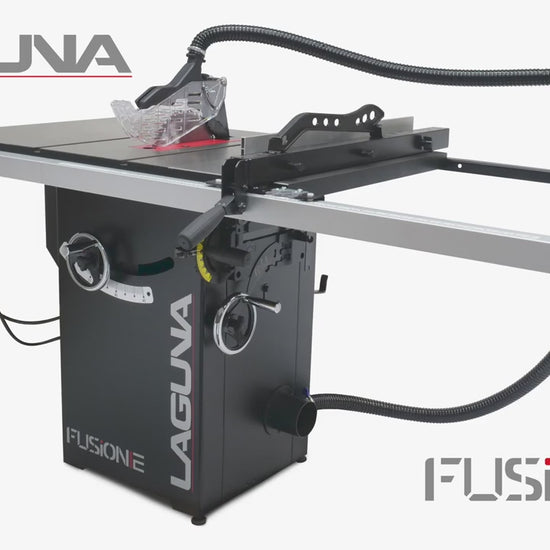

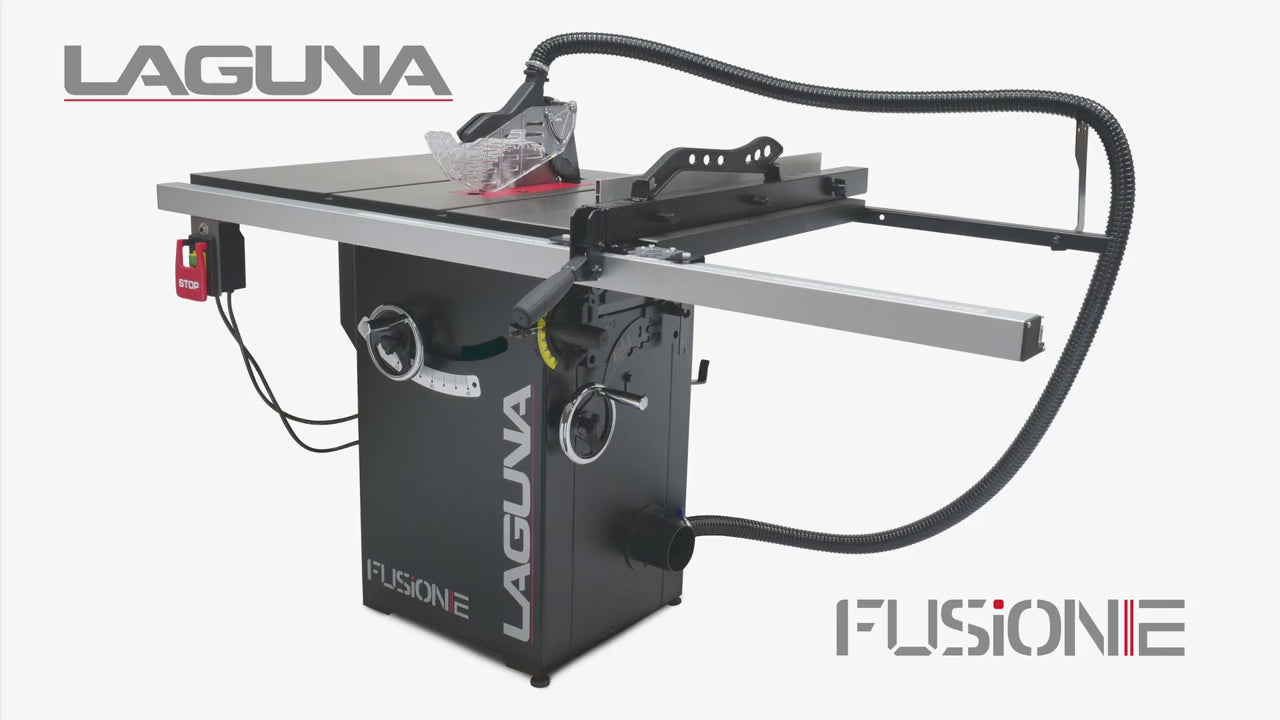

The Laguna F2 Fusion Table Saw is engineered for demanding woodworkers who require exceptional precision, reliability, and cleanliness. Featuring a 1.75HP TEFC motor and cabinet-mounted design, this saw delivers consistent power while maintaining stability with its cast iron table and wings. The hybrid European Hi/Low fence combines the best of European and American fence designs, providing precise rip cuts with a 37" (939.8mm) right rip capacity, though it is not designed for use on the left side of the blade. The Fusion Dust Collection System utilises over/under collection with sealed bottoms, ensuring a clean and safe workspace. Permanently lubricated bearings, Acme screws, integrated tool storage, polished handles, and a premium arbor enhance long-term performance. The saw is supplied with a 10" (254mm) x 40T carbide-tipped blade, riving knife, splitter, camlock T-shape fence, miter gauge, and additional included tools, enabling immediate and versatile woodworking applications. Digital readout (DRO) for blade tilt further improves precision and ease of use, while mobility built into the cabinet allows repositioning without compromising stability.

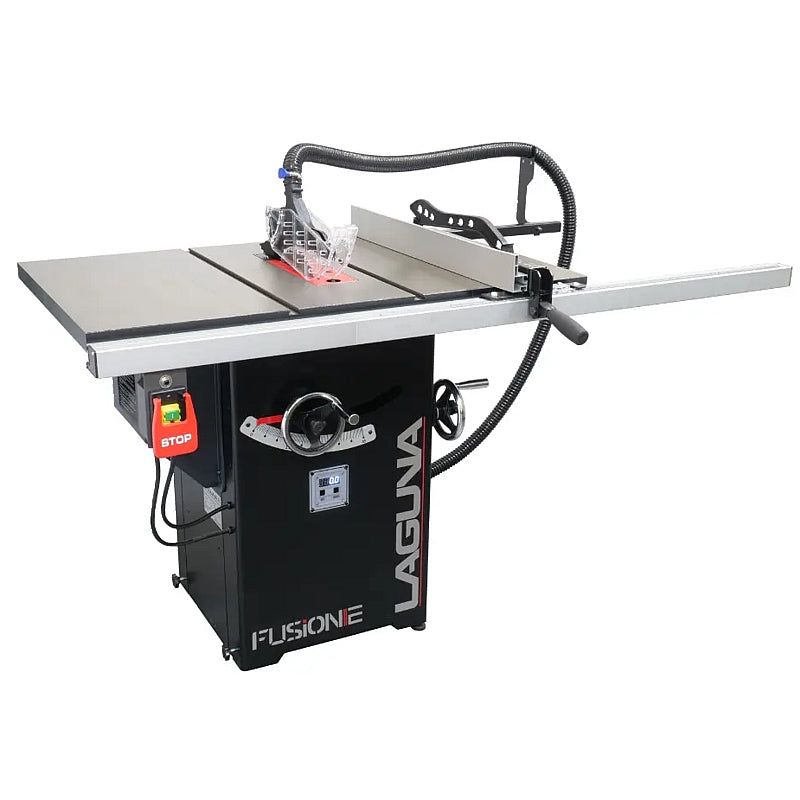

Digital Readout:
Laguna has added DRO for the tilt on the Fusion F2 & F3 as standard equipment.

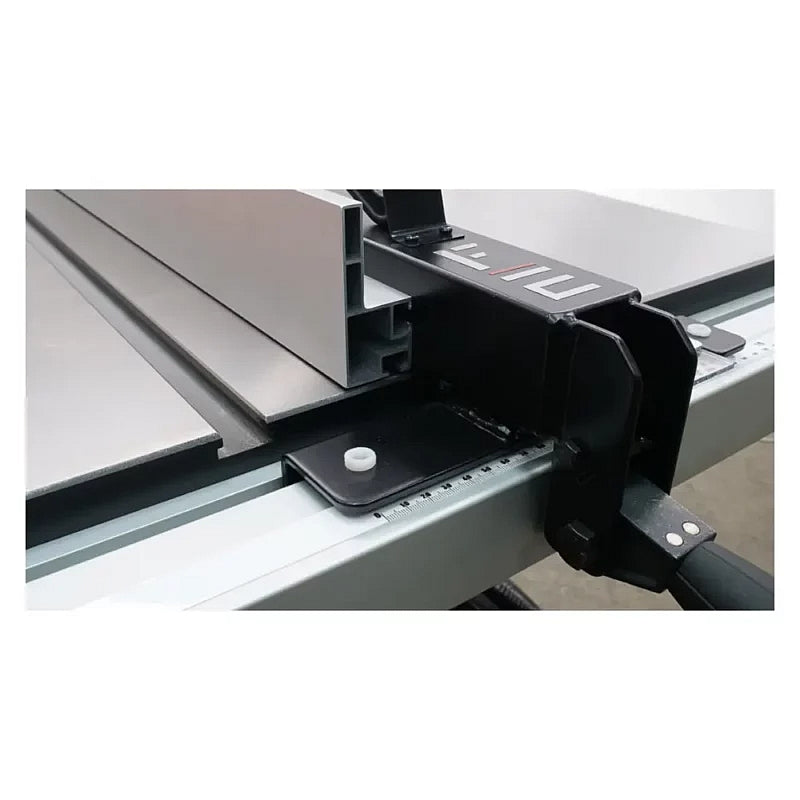

European Hi/Low Fence:
The Rip fence on Fusion F2 & F3 now features a Hi/Low window to work with the European style Hi/Low fence.

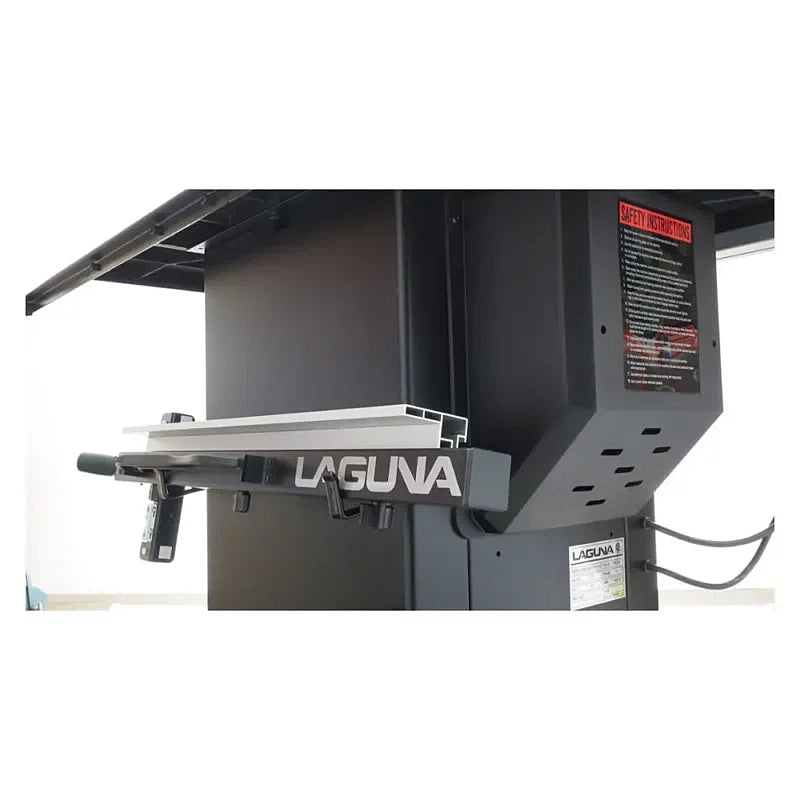

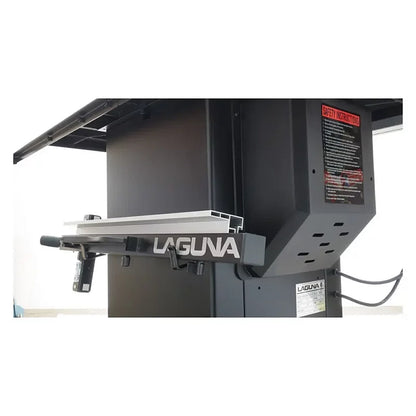

On-Board Tool Storage:
Have your rip fence and other Fusion accessories out of the way but easily accessible.
Table Saw Type: Cabinet
Motor Power: 1.75HP TEFC
Voltage: 220V, Single-Phase, 60Hz
Blade Diameter: 10" (254mm)
Blade Teeth: 40T
Arbor Size: 5/8" (15.88mm)
Arbor Speed: 4500 RPM
Maximum Width of Dado: 3/4" (19.05mm)
Blade Tilt Direction: Left
Max Blade Tilt: 45°
Maximum Depth of Cut at 90°: 3-1/8" (79.38mm)
Maximum Depth of Cut at 45°: 2-1/8" (53.98mm)
Max Rip Right of Blade With Included Fence & Rails: 37" (939.8mm)
Dust Port Size: 4" (101.6mm)
Blade Guard Dust Port Size: 1-1/2" (38.1mm)
Riving Knife/Spreader Thickness: 3/32" (2.38mm)
Required Blade Body Thickness: >1/8" (3.18mm)
Required Blade Kerf Thickness: <5/64" (1.98mm)
Floor to Table Height: 35" (889mm)
Table Size With Extension Wings Width: 44" (1117.6mm)
Table Size With Extension Wings Depth: 27" (685.8mm)
Distance Front of Table to Center of Blade: 13-3/8" (339.7mm)
Distance Front of Table to Blade at Maximum Cut: 8-21/32" (219.1mm)
Main Table Thickness: 1-1/2" (38.1mm)
Fence Type: Camlock T-Shape with Aluminum European Hi-Lo Fence
Fence Size (L x W x H): 33-7/16" x 9-13/16" x 3" (849mm x 249.5mm x 76.2mm)
Fence Rail Type: Aluminum Extrusion/Angle Steel
Fence Rail Dimensions (L x W x H): 66-9/16" x 3" x 2" (1690mm x 76.2mm x 50.8mm)
Overall Width: 66-13/16" (1695.6mm)
Overall Depth: 39-3/8" (1000mm)
Overall Height: 42-7/8" (1089.5mm)
Net Weight: 276 lbs (125.2 kg)
Shipping Weight: 435 lbs (197.3 kg)
Construction: Cast Iron Table & Wings, Pre-Formed Steel Cabinet, Cast Alloy Trunnions, Aluminum Fence, Steel Rails, Aluminum/Steel Miter Gauge, Steel & Clear Plastic Guard
Finish: Powder-Coated Cabinet
NEMA Plug: 5-15P
* The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on LEFT side is provided only to make the ON/OFF switch position adjustable.
