Laguna 18|BX Bandsaw, 1 Phase, 3HP, 12 Amp | MBAND18BX

Laguna 18|BX Bandsaw | 1 Phase | 3HP | 12 Amp | MBAND18BX.

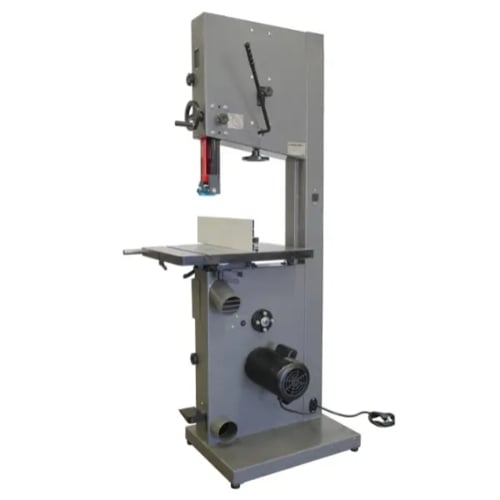

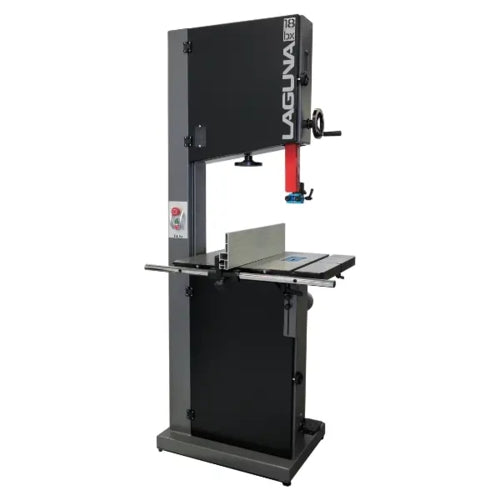

The **Laguna 18|BX Bandsaw** upholds the legacy of high-performance woodworking machinery established by the renowned Laguna 14|12 and 14|BX models. Built around a **powerful 3HP 220V motor** and utilizing a **145″ (3683 mm) blade**, it delivers consistent and precise cuts, regardless of the wood type.

Designed for both professional and serious hobbyist woodworkers, this bandsaw features a **heavy-duty cast-iron table measuring 20″ x 26″ (508 mm x 660 mm)**, providing ample workspace. Its **quick-release blade tension system** streamlines adjustments, while the **dynamically balanced cast-iron wheels** enhance stability. Additionally, the **worm gear & pinion upper guide** allows for smooth and accurate blade positioning.

A **foot-operated disc brake** with a micro switch improves safety by stopping the blade immediately when needed. The saw also includes a **magnetic blade tension guide** and a **window for tension monitoring**, ensuring optimal performance. With **dual 4″ (102 mm) dust ports**, this model effectively manages dust collection, keeping the workspace cleaner.

Features & Benefits:

• Powerful 3HP Motor: Ensures reliable, high-performance cutting across various wood materials.
• Generous Resaw Capacity: A 16″ (406 mm) resaw height accommodates larger workpieces.
• Heavy-Duty Cast-Iron Table: Provides a stable and durable work surface, measuring 20″ x 26″ (508 mm x 660 mm).

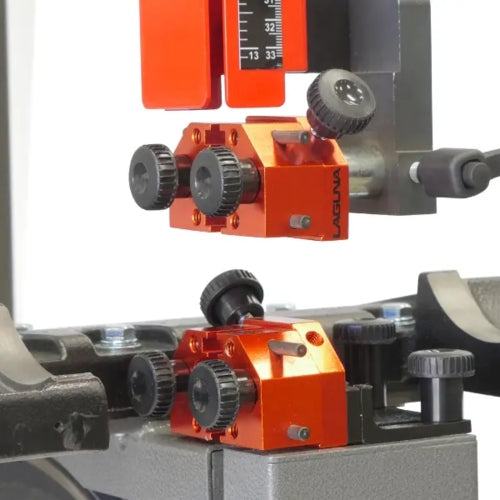

• Laguna Ceramic Blade Guides: Enhance cutting precision and prolong blade life.

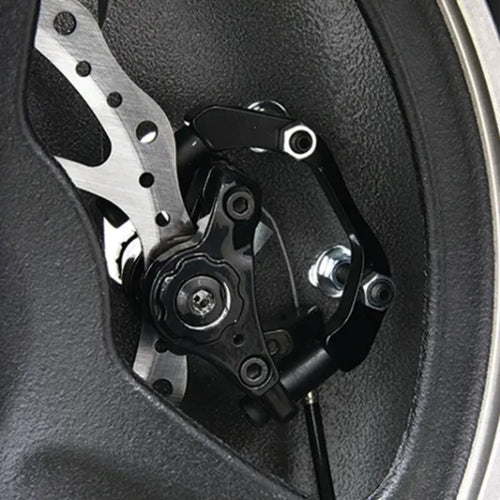

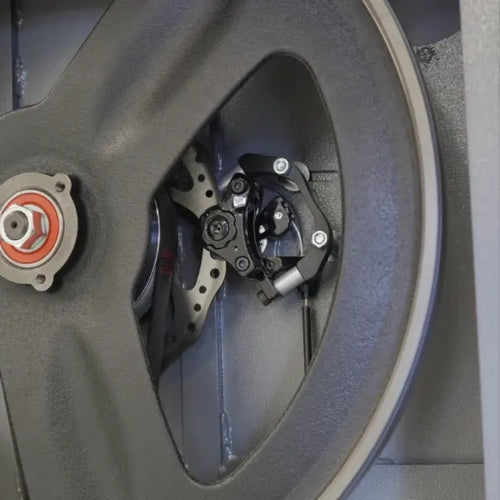

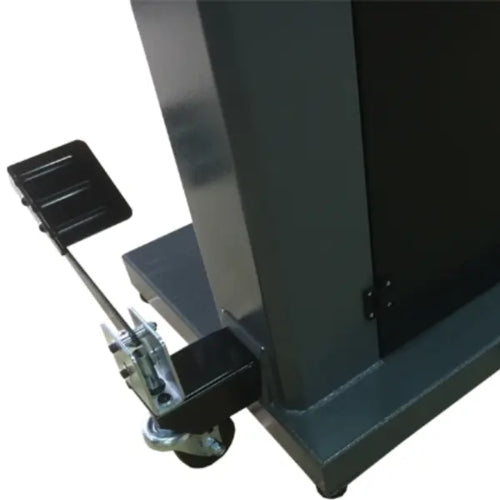

• Foot-Operated Disc Brake: Increases safety by allowing immediate stopping.
• Quick-Release Tension: Simplifies blade changes and adjustments.
• Magnetic Blade Tension Guide: Ensures optimal blade tension for accurate cuts.
• Window for Tension Monitoring: Allows users to check tension at a glance.
• Premium Anodized Insert: Features micro-adjustment for improved precision.

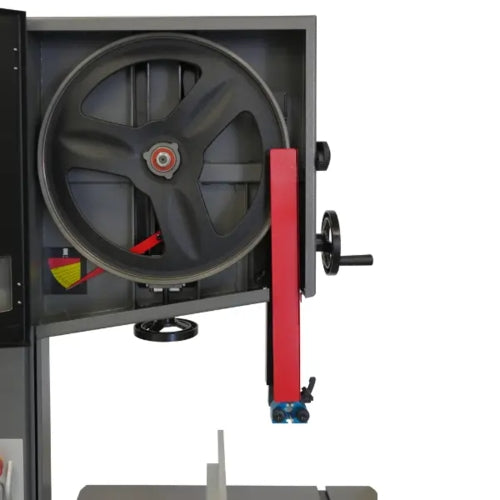

• Worm Gear & Pinion Upper Guide: Ensures smooth blade height adjustments.

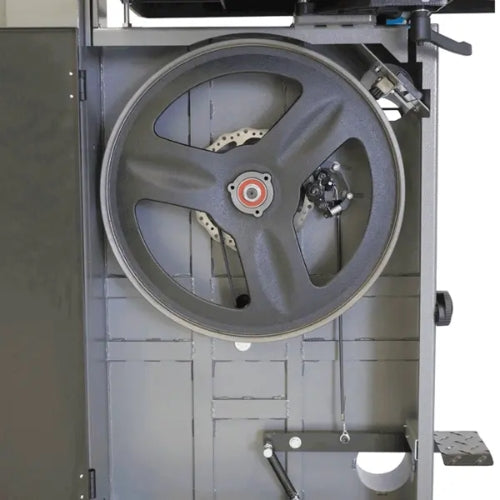

• Dynamically Balanced Cast-Iron Wheels: Reduce vibration and improve stability.

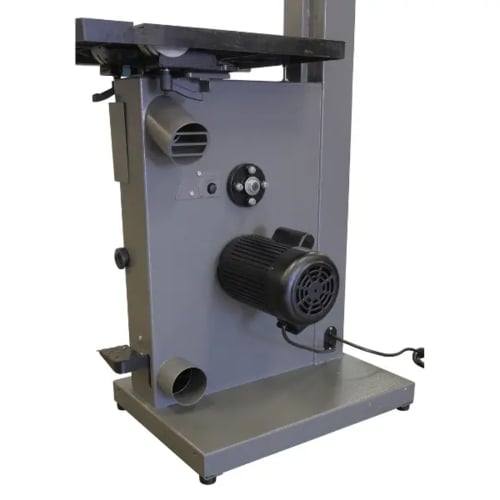

• Dual 4″ (102 mm) Dust Ports: Enhances dust collection for a cleaner workspace.

Specifications:

Motor: 3HP 220 Volt
Resaw Height: 16″ (406 mm)
Fence: Hi/Low Fence, 5-3/4″ x 22-1/2″ (146 mm x 572 mm)
Foot Brake: Disc Brake
Table: Cast Iron, 20″ x 26″ (508 mm x 660 mm)

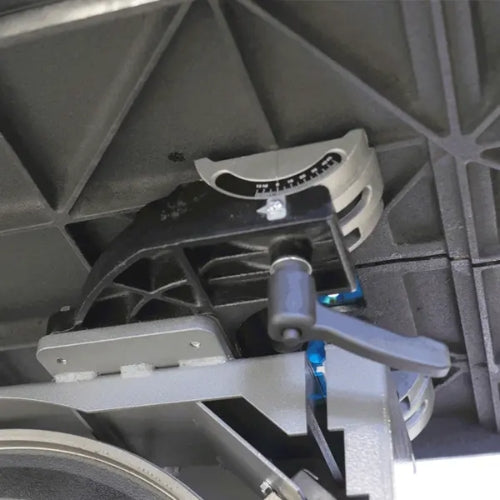

Table Tilt: -6°, +45°
Mitre Slot: 3/8″ x 3/4″ (10 mm x 19 mm)
Blade Length: 145″ (3683 mm)
Guides: Laguna Ceramic Guides
Disc-Brake with Micro Switch: Yes
220V Outlet on Back for Light: Yes
Window for Tension: Yes
Magnetic Blade Tension Guide: Yes
Worm Gear & Pinion Upper Guide: Yes
10 Point Laguna Ceramic Guides: Yes
Flat Poly-Groove Drive Belt: Yes
Premium Anodized Insert with Micro Adjustment: Yes
Dynamically Balanced Cast-Iron Wheels: Yes
Urethane Single-Piece Snap-On Tire: Yes
Quick-Release Tension: Yes
Hi/Low Anodized Aluminum Fence: 22-½″ x 5-¾″ x ½″ (572 mm x 146 mm x 13 mm)
Table Height: 38″ (965 mm)
Dust Ports: 4″ x 2 (102 mm)
Overall Height: 77-¾″ (1975 mm)
Base Dimensions: 27″ x 20″ (686 mm x 508 mm)
Overall Dimensions: 36″ x 30″ (914 mm x 762 mm)

Scope of Delivery:

• 1 x Laguna 18|BX Bandsaw | 1 Phase | 3HP | 12 Amp | MBAND18BX

Downloads:

1. Manual - Laguna 18|BX Bandsaw
2. Sell Sheet - Laguna 18|BX Bandsaw

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
