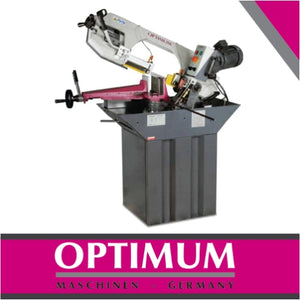

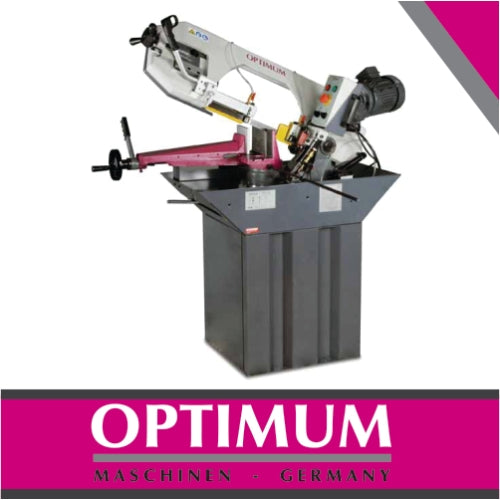

Optimum Bandsaw Metal Optimum | S275G

Metal Band Saw for Easy Sawing

description

• Metal band saws with swivel saw bow. S 275G with continuously adjustable saw blade speed
• Silent run
• Stable cast execution
• High cutting accuracy due to vibration-free running
• Lowering of the saw arm via hydraulic cylinder with throttle valve infinitely adjustable
• Micro switch for automatic limit switch
• Coolant system
• As standard with high-quality bi-metal saw band
• Adjustable material stop for serial work
• Easy to read scale for angle adjustment
• Overload protection

S 275G

• Infinitely adjustable saw blade speed 20 - 90 m / min
• Speed ​​change possible during operation

Room amenities

Control panel

• Clear keyboard for easy operation
• Emergency stop impact switch
• Switch coolant pump
• Speed ​​selector
• For Vario: potentiometer

manometer

• Easy and accurate control of saw blade tension

Ball bearing saw band guide

Action vice

• Adjustable via handwheel
• Clamping the workpiece with a handy quick release lever

substructure

• Robust

Technical Specifications

Electrical connection	230 V / 1 Ph
Engine power	1.5 kW
Lifting the saw bow	manual
infeed	infinitely variable
Saw band speed	20 - 90 m / min
Saw band dimension	2,480 x 27 x 0.9 mm
Cutting angle	0 to 60 degree
Net weight	185 kg
Cutting range 0 ° circle	225 mm
Cutting range 0 ° square	150 mm
Cutting range 0 ° rectangle	150 x 230 mm
Cutting range 45 ° circle	145 mm
Cutting range 45 ° square	145 mm
Cutting range 45 ° rectangle	145 x 180 mm
Cutting range 60 ° circle	90 mm
Cutting range 60 ° square	90 mm
Cutting range 60 ° rectangle	90 x 120 mm



Delivery Information

• material stop
• Bi-metal saw band
• substructure
• Coolant pump
