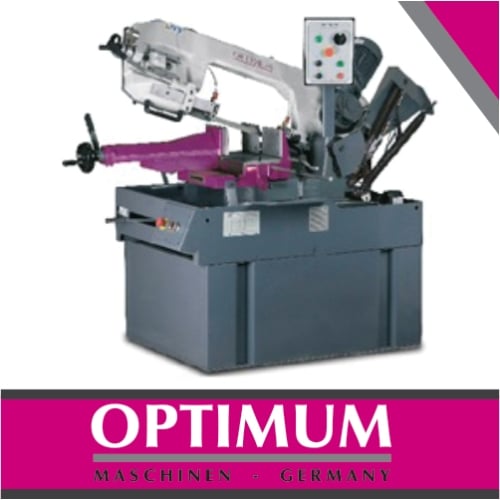

Optimum Bandsaw Metal Double Mitre | S350G

Metal Band Saw for Easy Sawing

Description

• Metal band saw with double mitre of heavy type
• Heavy industrial type
• Low-noise running
• High cutting accuracy due to vibration-free running
• Two switchable speeds 36/72 m/min.
• Mitre adjustment to -60° by slewing the whole saw bow
• Combinable and individually adjustable hard metal and ball bearingguidings of the saw band
• With high-grade bimetallic saw band supplied as standard
• Limit stops exactly adjustable within an accuracy of a degree
• Chip brush
• Micro switch for automatic limit stop
• Roller support adjustable for long and heavy workpieces
• Fully equipped machine, the user can immediately start to work productively

Saw band tension

• Simple and correct setting of the saw band tension by means of a manometer

Saw band guiding

• Ball bearing with hard metal plates for optimum cutting results

Robust quick-action vice

• Generously dimensioned
• Adjustable via handwheel
• Clamping the workpiece by means of the handy quick action lever
• Shiftable for large materials

Control panel

• main switch
• Control light for operation
• Emergency-stop push button
• Switch coolant pump
• Speed selector switch

Hydraulic cylinder

• Precise, infinitely variablesaw bow movement
• CE conformity of the electric system
• EMC filter (electromagnetic compatibility)

Lowering speed

• Simple adjustment via feed gear control valve on the control panel
• Emergency-stop push button

Material stop

• with scale

Coolant pump

Machine substructure

• Robust

Technical Specifications

Length	1750 mm
Width/depth	1075 mm
Height	1420 mm
Max. width/depth	1415 mm
Max. height	2000 mm
Net weight	550 kg
Drive motor output	2.2 kW
Coolant pump motor output	50 W
Supply voltage	400 V
Phase(s)	3 Ph
Current type	~
Mains frequency	50 Hz
Clamping range 0° round (full material)	270 mm
Clamping range 0° quadratic (full material)	230 mm
Clamping range 0° rectangle horizontal (full material)	230 x 350 mm
Clamping range -45° round (full material)	230 mm
Clamping range -45° quadratic (full material)	170 mm
Clamping range -45° rectangle horizontal (full material)	140 x 200 mm
Clamping range 45° round (full material)	230 mm
Clamping range 45° quadratic (full material)	200 mm
Clamping range 45° rectangle horizontal	210 x 220 mm
Clamping range 60° round (full material)	140 mm
Schnittbereich 60° quadrat (Vollmaterial)	140 mm
Clamping range 60° rectangle horizontal	140 x 220 mm
Feed	continuously variable
Saw band speed(s)	36 / 72 m/min
Saw band length	2925 mm
Saw band width	27 mm
Saw band thickness	0,9 mm
Cutting angle	-45 to 60 degree
Lifting the saw bow	manual
