Makita 36V Cordless BL Shear Wrench (Bare Tool) | DWT310ZK

Makita 36V (2 x 18V) Cordless Brushless Shear Wrench (Bare Tool) | DWT310ZK.

The Makita DWT310ZK is a cordless shear wrench (also known as a TC shear wrench or tension control bolt wrench).

Purpose of this tool:

Its main purpose is to tighten high-strength tension control (TC) bolts — also called torque shear bolts or twist-off bolts.

These special bolts have a splined end (twist-off tip). The shear wrench grips both the nut and the spline at the same time. When the bolt reaches the exact designed tension (clamping force), the spline shears off cleanly. This gives precise, verifiable tension without needing torque calibration or guesswork.

It is commonly used in structural steel construction for:

• Steel frames in buildings
• Bridges
• Towers
• Other critical load-bearing connections

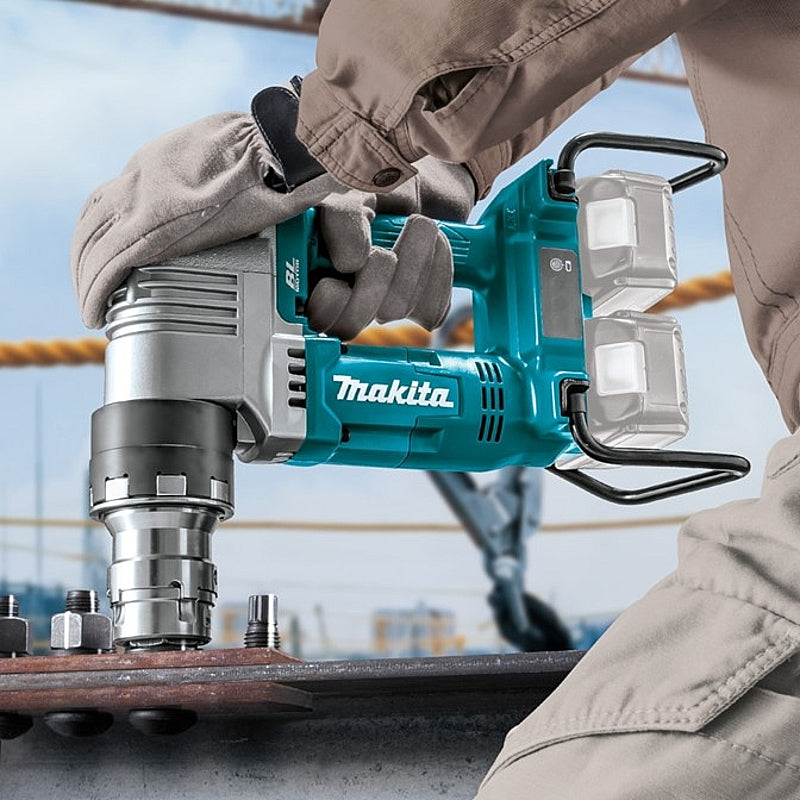

The tool is ideal for one-sided installation (no need to hold the bolt from the other side) and provides fast, quiet, accurate fastening of M16, M20, M22 bolts (and equivalent imperial sizes).

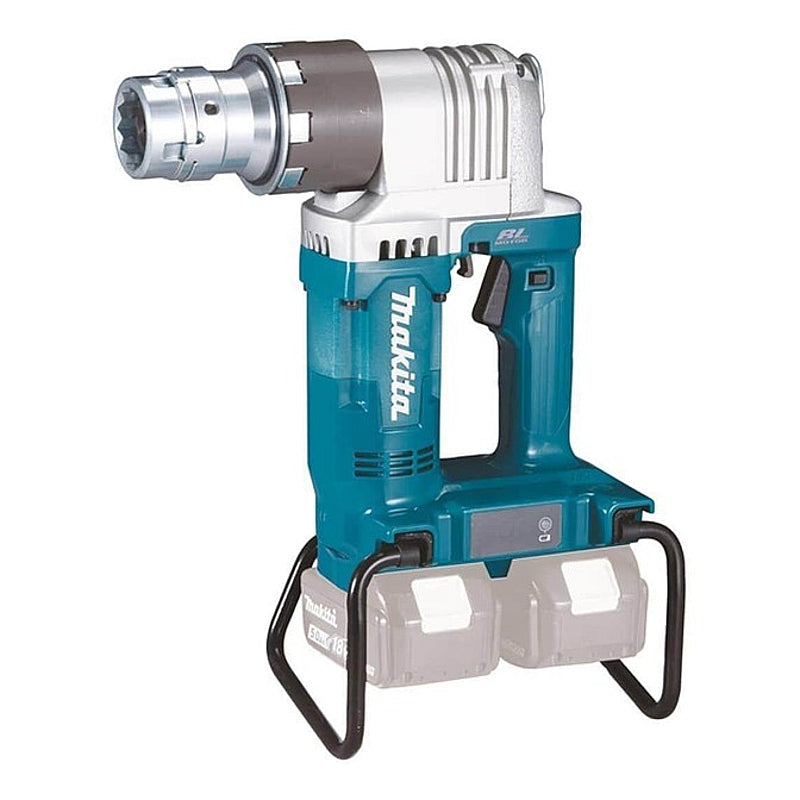

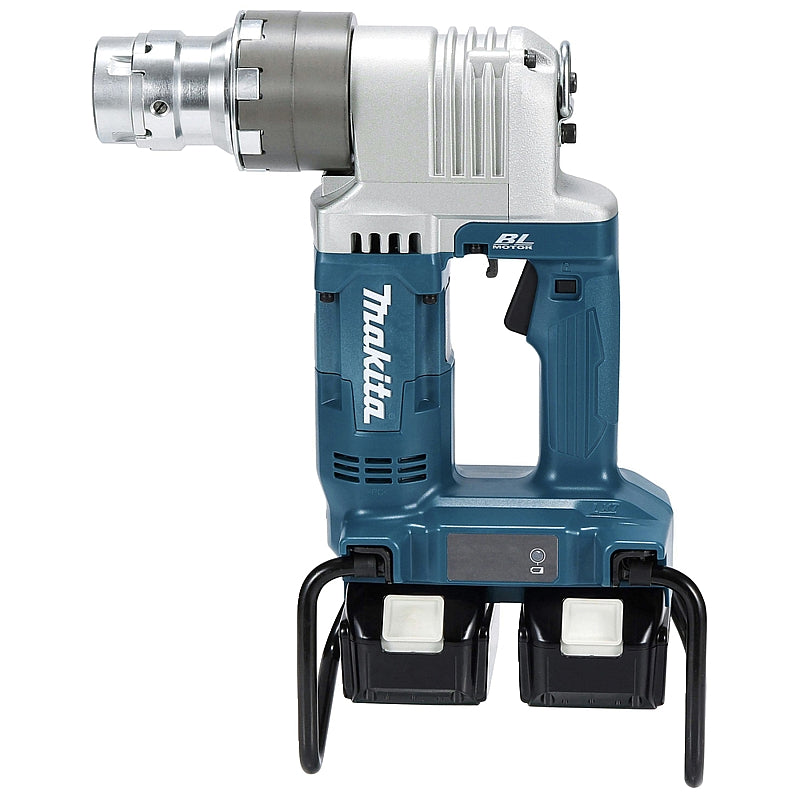

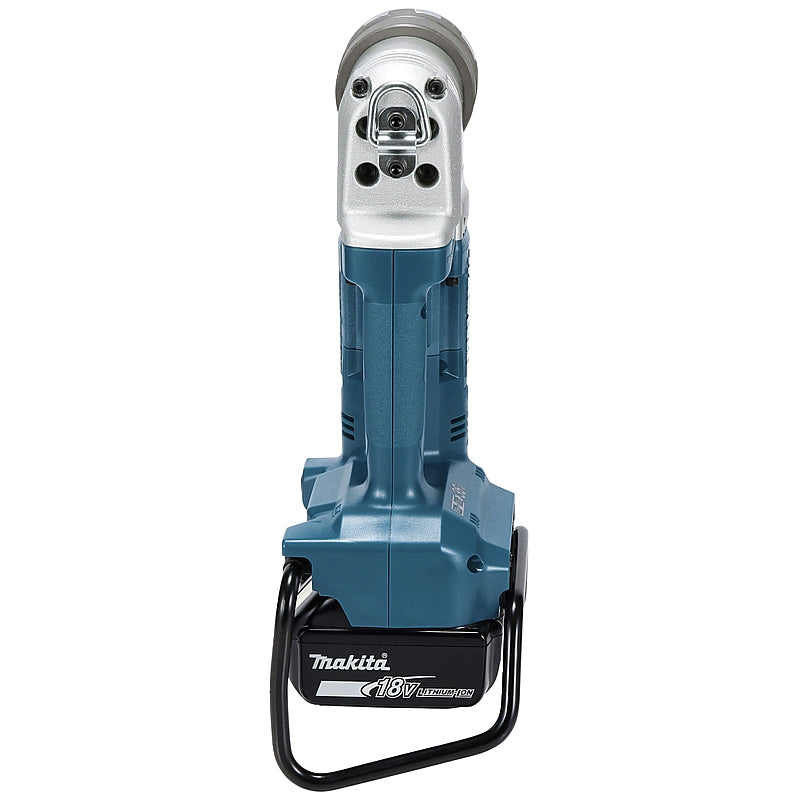

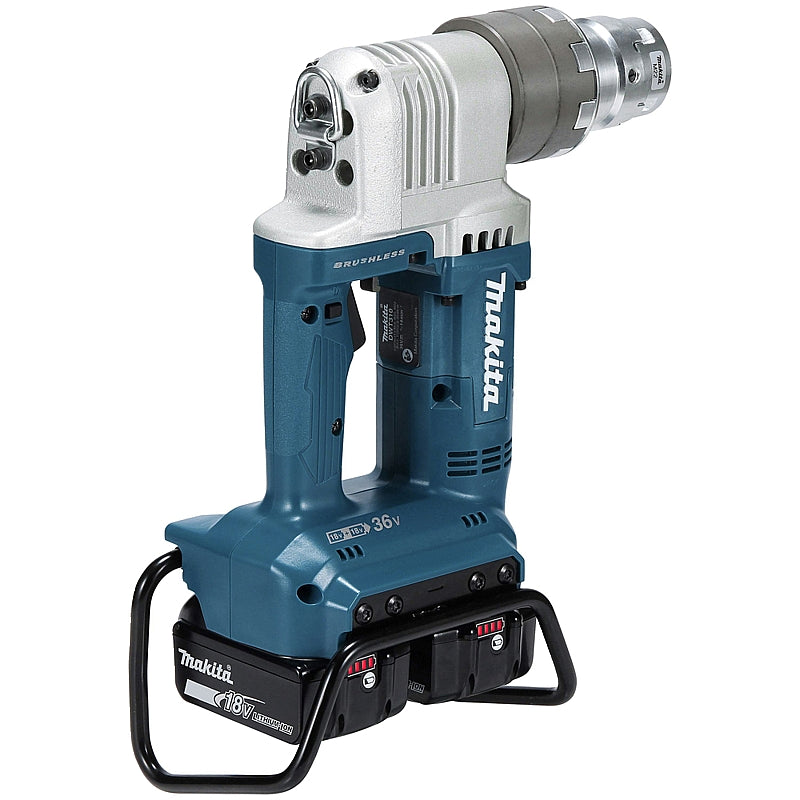

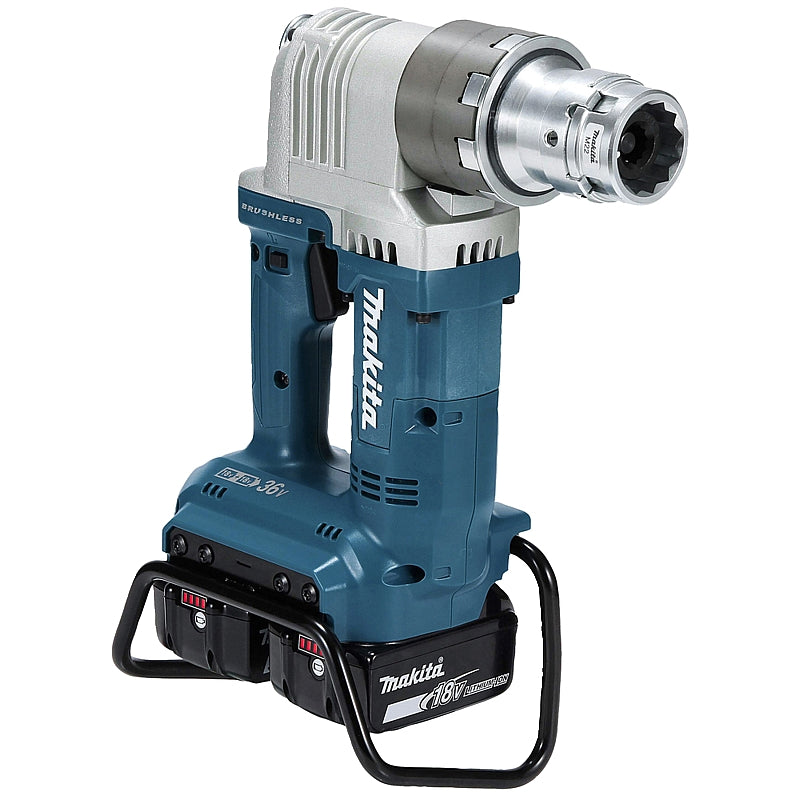

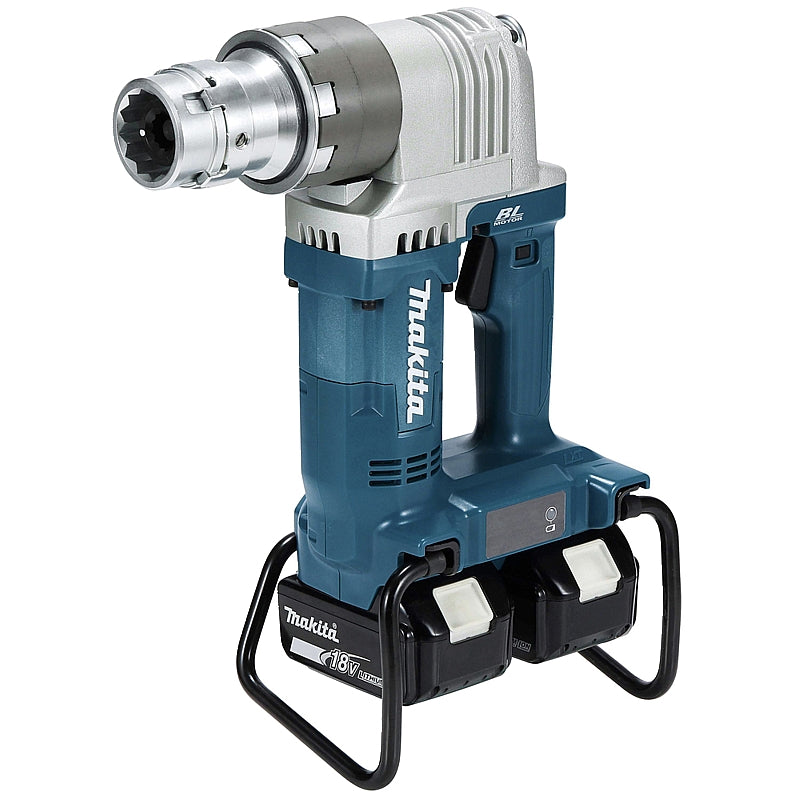

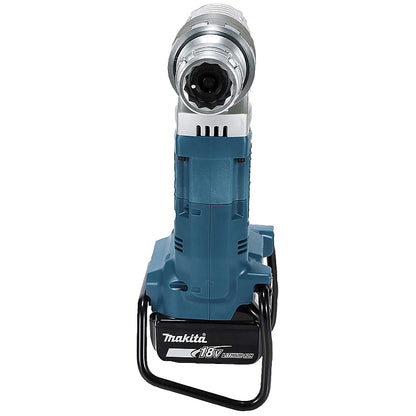

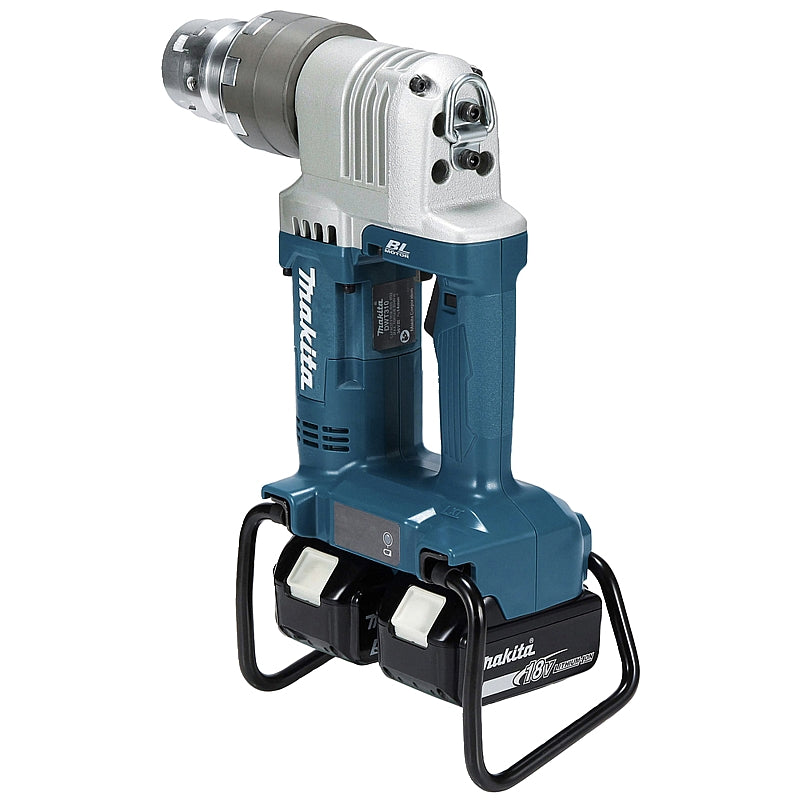

The Makita DWT310ZK 36V (2 x 18V) Cordless Brushless Shear Wrench provides powerful performance for tightening high strength torque shear bolts. Powered by two 18V Li-ion batteries in series, this bare tool drives a strong 36V DC motor through its brushless design. Operators benefit from consistent high power output, while the electric brake delivers fast stopping for improved productivity and safety. The tool also includes a convenient hook for use with a shoulder belt and a battery capacity warning lamp that clearly indicates remaining power.

Features & Benefits:

• Brushless Motor: Delivers high power and longer runtime with maintenance-free operation.
• 36V DC Motor Drive System: Powered by two 18V Li-ion batteries in series for powerful performance.
• High Fastening Torque: Achieves up to 804 Nm for reliable tightening of torque shear bolts.
• Electric Brake: Provides quick stopping for increased safety and productivity.

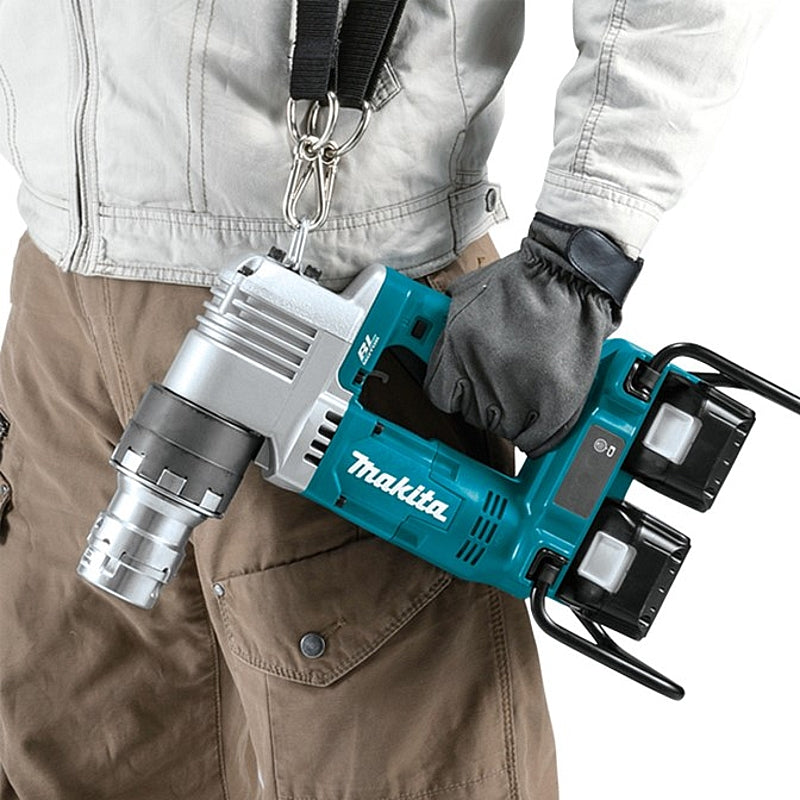

• Hook for Shoulder Belt: Allows convenient hands-free transport on the job site.

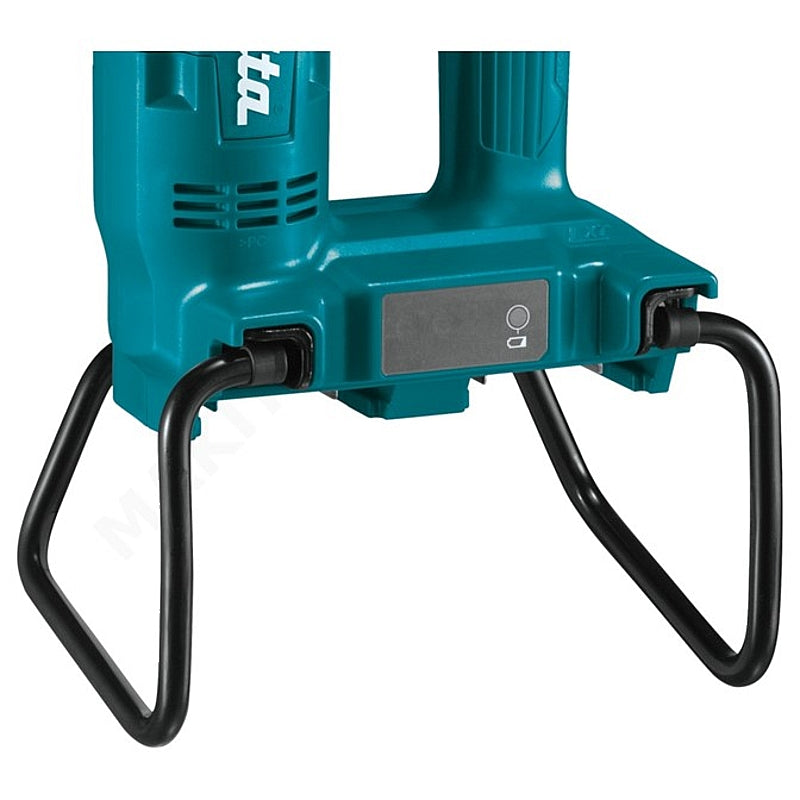

• Battery Capacity Warning Lamp: Clearly shows remaining battery power during use.

Specifications:

• Code: DWT310ZK
• No Load Speed: 14 rpm
• Max Fastening Torque: 804 Nm
• Compatible Bolts - A325: 5/8", 3/4", 7/8"
• Compatible Bolts - A490: 5/8", 3/4"
• Compatible Bolts - High Strength: M16, M20, M22
• Compatible Bolts - Super High Strength: M16, M20
• Vibration Level: 2.5 m/s²
• Vibration K Factor: 1.5 m/s²
• Sound Pressure Level: 83 dB(A)
• Sound Power Level: 94 dB(A)
• Noise K Factor: 3 dB(A)
• Net Weight: 6.5 – 7.1 kg

Scope of Delivery:

• Makita DWT310ZK 36V (2 x 18V) Cordless Brushless Shear Wrench (Bare Tool)

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
