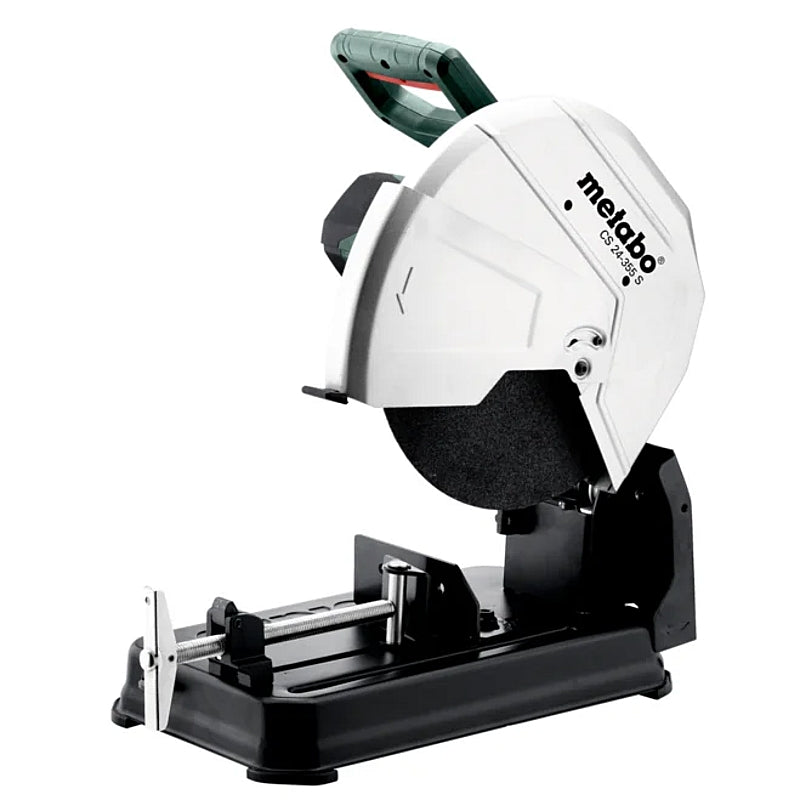

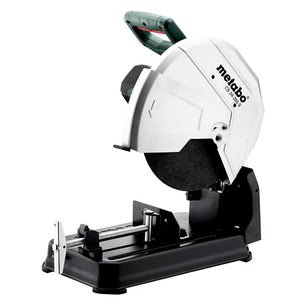

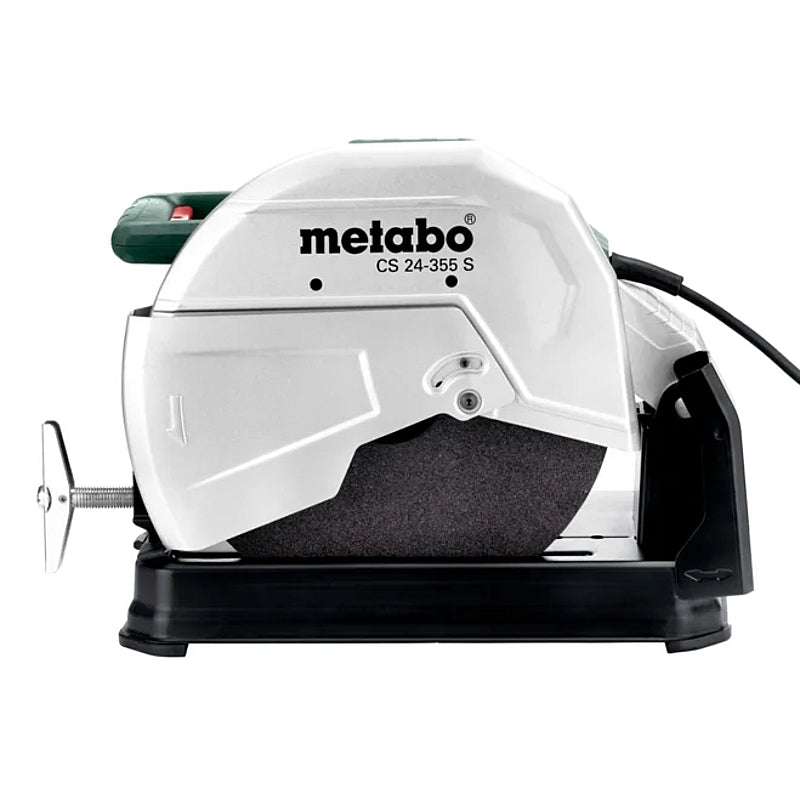

Metabo CS 24-355 S Metal Chop Saw 355mm, 2400W | 601787000

Metabo CS 24-355 S Metal Chop Saw 355mm, 2400W | 601787000.

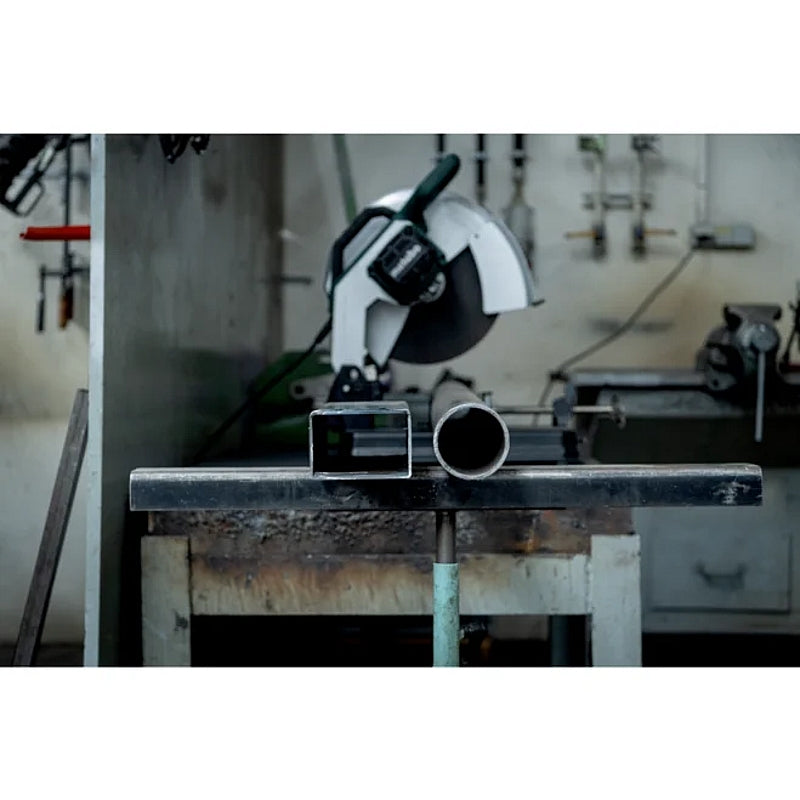

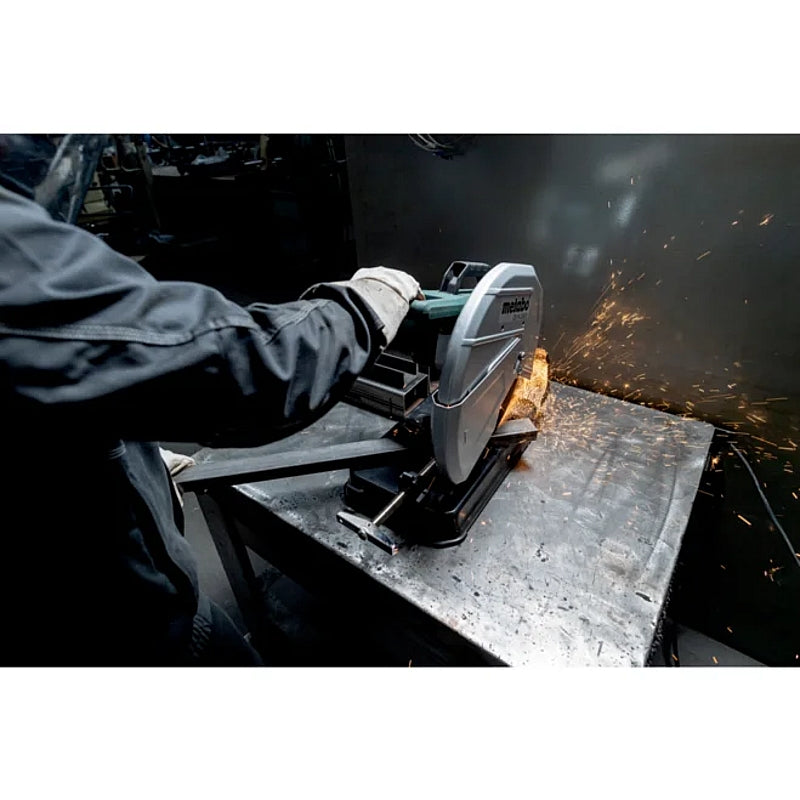

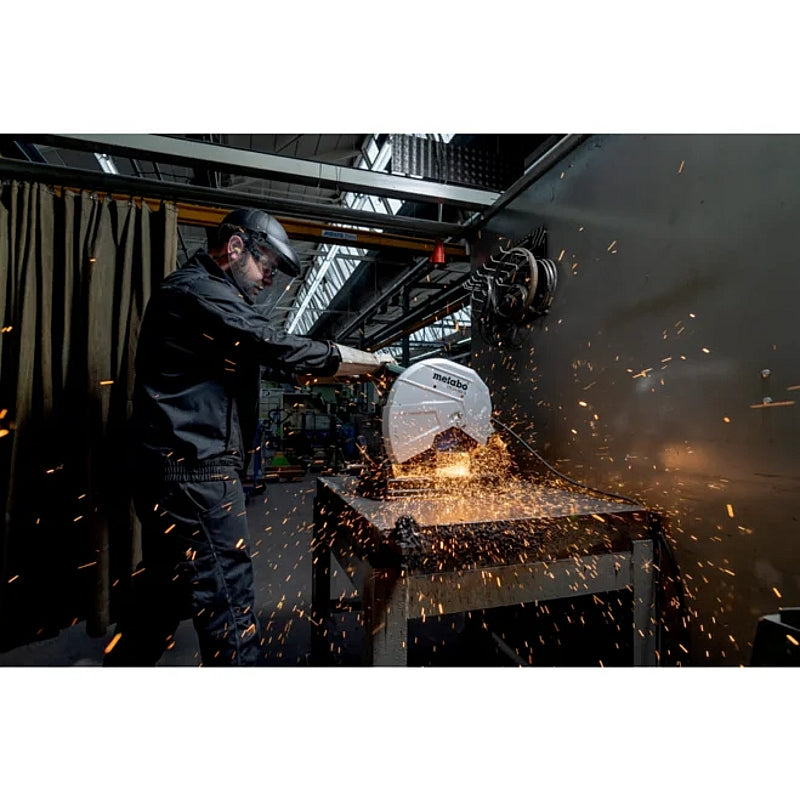

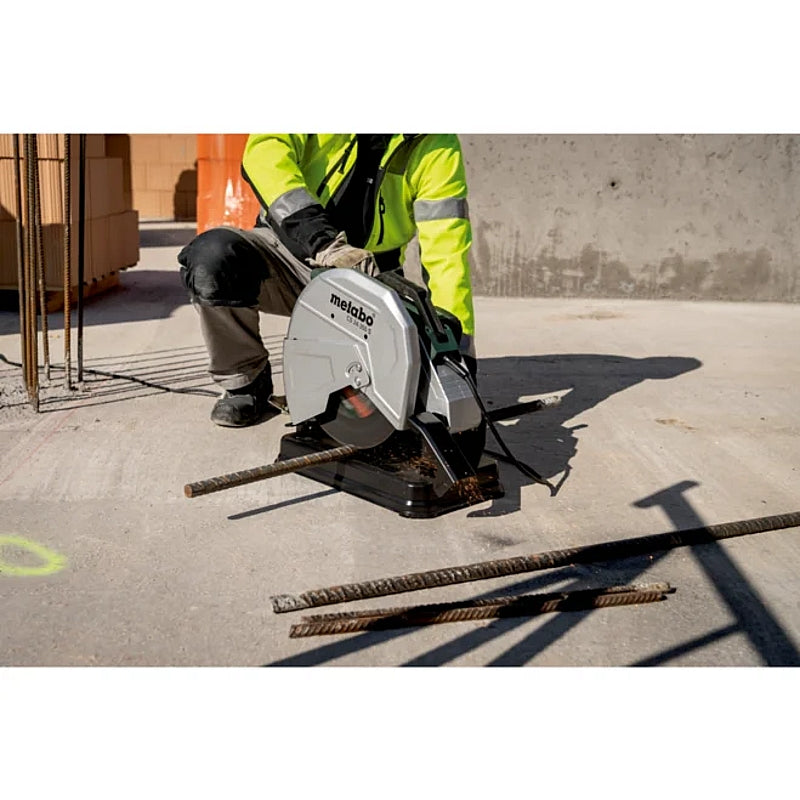

The Metabo CS 24-355 S is a powerful metal chop saw for fast cutting of profiles, pipes and rods made from steel, non-ferrous metals and iron, as well as cast profiles. Its 2400 W motor drives a 355 mm cutting disc at a no-load speed of 3,700 rpm. A quick clamping device with variable mitre adjustment allows angled cuts from -15° to 45°, while the large handle, positioned across the cutting axis, provides effective power transmission during cutting. In addition, the adjustable cutting depth limiter helps optimise use of the cutting disc. Electronic soft start ensures smooth start-up and reduces start-up current, while the spindle lock enables quick, straightforward disc changes. For safe working, the saw combines a swivelling cutting guard, adjustable spark deflector sheet and rubberised base with a safety switch that protects against accidental start-up. Furthermore, the robust, large machine table includes practical storage for hexagonal wrenches, and the built-in carry handle and locking device simplify transport.

Features & Benefits:

• Powerful Metal Cutting: The 2400 W motor supports fast cutting of metal profiles, pipes and rods.
• Versatile Material Applications: Cuts steel, non-ferrous metals, iron and cast profiles.
• Quick Clamping Device: Provides convenient workpiece clamping with variable mitre settings for angled cuts from -15° to 45°.
• Large Cutting Handle: Sits across the cutting axis for effective power transmission while cutting.
• Adjustable Cutting Depth Limiter: Helps optimise use of the cutting disc.
• Electronic Soft Start: Provides smooth start-up and reduces start-up current.
• Spindle Lock: Enables easy, fast cutting disc changes.
• Swivelling Cutting Guard: Supports user safety during cutting.
• Adjustable Spark Deflector: Allows adjustment of the spark deflector sheet for safe cutting.
• Rubberised Base: Supports safe cutting.
• Safety Switch: Protects against accidental start-up.
• Robust Machine Table: Provides a large working platform with practical storage for hexagonal wrenches.

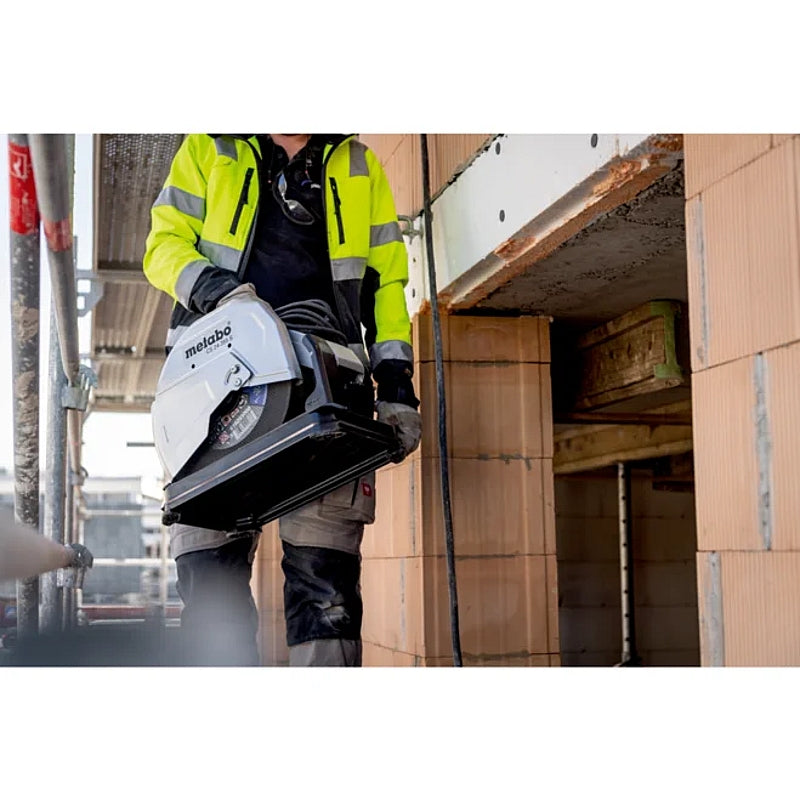

• Convenient Transport: A built-in handle and locking device make the saw easy to transport.

Specifications:

Code: 601787000
Model: CS 24-355 S
Rated Input Power: 2400 W
No-Load Speed: 3,700 rpm
Cutting Disc Diameter: 13 31/32" (355 mm)
Cutting Disc Bore: 1" (25.4 mm)
Mitre Adjustment Range: -15° to 45°
Maximum Round Tube Cutting Capacity: 5 3/16" (132 mm)
Maximum Square Tube Cutting Capacity: 4 23/32" × 4 23/32" (120 × 120 mm)
Maximum Rectangular Tube Cutting Capacity: 3 15/16" × 8 3/16" (100 × 208 mm)
Maximum L-Profile Cutting Capacity: 5 29/32" × 5 29/32" (150 × 150 mm)
Base Plate Dimensions: 17 15/16" × 10 1/16" (456 × 256 mm)
Transport Height: 15 1/2" (394 mm)
Weight: 37 lbs (16.8 kg)
Cable Length: 4 m

Scope of Delivery:

• Metabo CS 24-355 S Metal Chop Saw.
• Hexagonal wrench.
• Inner support flange.
• Flange nut.
• 355 mm cutting disc.

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
