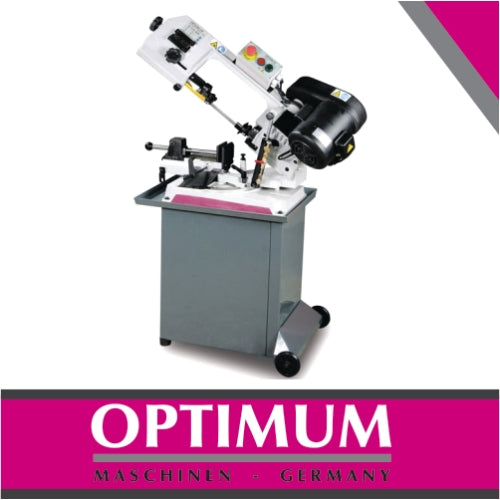

Optimum Band Saw Metal Optimum | S131GH

Metal Band Saw for Easy Sawing

Description

• Metal band saw for easy sawing
• Mitre saws from -45° to 60° via slewable saw bow
• Protector switch for saw band saw belt off and for belt housing
• Separate EMERGENCY-STOP push button
• Low voltage electronics 24 V
• Low-noise running
• Saw band guiding via ball bearing
• Three speed stages for a broad choice of materials
• Micro switch for automatic limit stop
• Scale good read for angle adjustment
• With high-grade bimetallic saw band supplied as standard
• Saw belt tension at the front adjustable via handwheel
• Adjustable material stop for series productions
• Quick-action vice for rapid workpiece clamping
• Switch for saw band saw belt off and for belt housing

Saw bow

• Grey cast-iron
• Slewable on both sides from -45° to 60°

Technical Specifications

Length	965 mm
Width/depth	498 mm
Height	978 mm
Max. length	1085 mm
Max. height	1300 mm
Net weight	78 kg
Drive motor output	1,1 kW
Supply voltage	230 V
Phase(s)	1 Ph
Current type	~
Mains frequency	50 Hz
Clamping range 0° round (full material)	128 mm
Clamping range 0° quadratic (full material)	145 mm
Clamping range 0° rectangle horizontal (full material)	100 x 145 mm
Clamping range -45° round (full material)	90 mm
Clamping range -45° quadratic (full material)	100 mm
Clamping range -45° rectangle horizontal (full material)	70 x 85 mm
Clamping range 45° round (full material)	90 mm
Clamping range 45° quadratic (full material)	100 mm
Clamping range 45° rectangle horizontal	70 x 85 mm
Clamping range 60° round (full material)	45 mm
Schnittbereich 60° quadrat (Vollmaterial)	45 mm
Clamping range 60° rectangle horizontal	45 x 56 mm
Feed	stufenlos einstellbar
Saw band speed(s)	22/31/55 m/min
Saw band length	1638 mm
Saw band width	13 mm
Saw band thickness	0,65 mm
Cutting angle	-45 - 60 degree
Lifting the saw bow	manual



Delivery Information

• Material stop
• Bi-metal saw band
• Substructure
