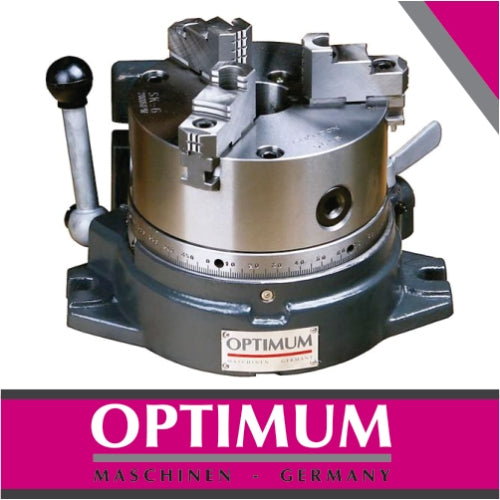

Horizontal-vertical Circular Dividing Tables Including 3-jaw Chuck
RTE 165
*Quality Circular Dividing Tables made of High Quality Meehanite Cast
*Reliable and Precise *Precision Taper Roller Bearing
*Stability Even Under Heavy Load *Large Spindle Hole to Clamp longer Workpieces
*Direct Dividing via Locking Discs for Higher Manufacturing Speed for Mass Parts
*Degree Division on a Scale of 360º (RTE 165)
*Direct Dividing via Locking Disc *24 Positions (15º division) *Three Jaw Chuck
*7Locking Disks for 2/3/4/6/8/12/24 Divisions *Including Clamping Disk with 3 Grooves
| Technical Data | RT 150 | |
| Centring Cone | MT2 | |
| Transmission Ratio | 90:01:00 | |
| Disk Size | mm | 150 |
| Constuction Height | mm | 79 |
| Length | mm | 204 |
| Width | mm | 156 |
| Centre Height | mm | 102 |
| Slot Width | mm | 11 |
| Number Grooves | 4 | |
| Indirect Dividing Equipment | Yes | |
| Nett Weight | kg | 12 |
