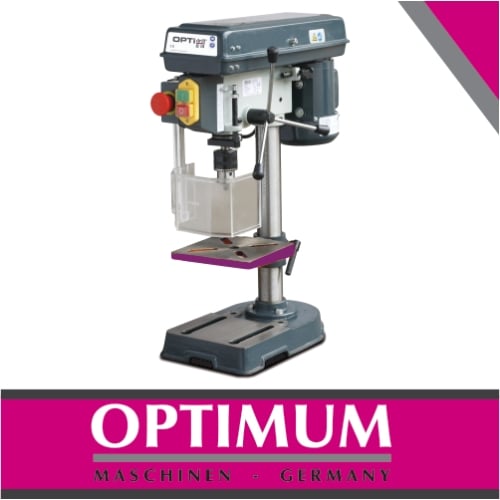

Optimum Drill Machine 13mm Mini 300 W | KS6

Optimum Drill Machine 13mm Mini 300 W | KS6
R 3,769.00 ZAR
R 3,769.00 ZAR
Sale Sold out
VAT included.

SKU:UPP-KS6
Drill Presses
View Product details
product-img
Optimum Drill Machine 13mm Mini 300 W | KS6
R 3,769.00 ZAR
R 3,769.00 ZAR
VAT included.

Mini Drill 13mm Chuck (B13)
Bench drilling machine
Drilling machines with V-belt

Technical Specifications

Electrical connection 230 V / 1 Ph ~50 Hz
Motor power 300W
Drilling capacity in steel (S235JR) 13 mm
Continuous drilling cap. steel 12 mm
Throat depth 104 mm
Spindle stroke 50 mm
Spindle seat fixed/B16
Spindle speeds 520 - 2.620 min-1
Number of steps 5 Steps
Drilling table size length x width 160 x 160 mm
T-slot size (slot width) 14 mm, diagonal
Drilling table slewable /- 45 degree
Drilling table rotatable 360 degree
Distance spindle - table max. 240 mm
Distance spindle - stand max. 325 mm
Stand work surface L x W 135 x 175 mm
Column diameter 46 mm
Length x width x height 420 x 220 x 580 mm
Net weight 18 kg

Description

  • Cost-efficient bench drills and upright drilling machines with V-belt
  • Precisely machined drilling table, can be inclined by ± 45° and turnable by 360°
  • Solid, largely dimensioned base plate with slots, heavily ribbed at the rear side
  • 400 volt types with right-/left-handed rotation cam switch
  • Millionfold proven quality
  • from OPTIdrill B 14: Serial T-slots for vice fixture
  • Ground multi-toothed follower
  • Best power transmission due to aluminium belt pulleys in connection with toothed GATES quality V-belt
  • V-belt cover with safety switch
  • Guaranteed true running accuracy of better than 0.03 mm measured in the drilling spindle
  • Drilling spindle with precision ball bearing
  • OPTIMUM quick-action drill chuck included in the standard scope of delivery
  • Spindle sleeve lever with softgrip handles for safe working
  • Drill depth stop
  • User-friendly switch according to IP 54 with undervoltage release
  • S eparate EMERGENCY-STOP push button

Delivery Information

  • Gear rim drill chuck 1,5 - 13 mm
