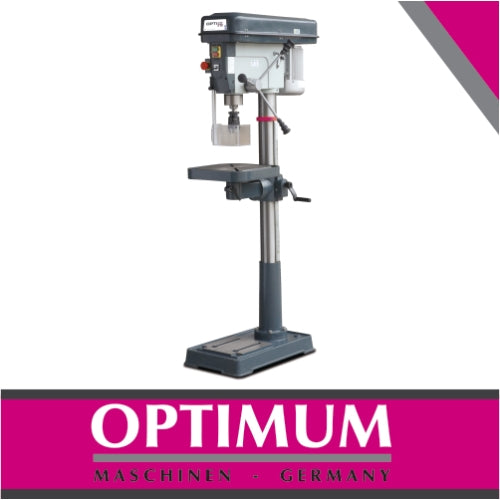

Optimum Drill Pedestal 16mm 380V-1.1Kw | KS25

Name: Optimum Drill Pedestal 16mm 380V-1.1Kw | KS25
Brand: Optimum
SKU: UPP-KS25
Price: 27149.0 ZAR
Availability: OutOfStock

R 27,149.00 ZAR

Sale Sold out

VAT included.

Product variants

SKU:UPP-KS25

Categories: Optimum

Optimum Drill Pedestal 16mm 380V-1.1Kw | KS25

R 27,149.00 ZAR

VAT included.

Pedestal Type 16mm Chuck (B32)
Upright drilling machine
Drilling machines with V-belt

Electrical connection	400 V / 3 Ph ~50Hz
Motor power	1,1 kW
Drilling capacity in steel (S235JR)	32 mm
Continuous drilling cap. steel	28 mm
Throat depth	225 mm
Spindle stroke	125 mm
Spindle seat	MT 4
Spindle speeds	140 - 2.020 min-1
Number of steps	9 Steps
Drilling table size length x width	360 x 360 mm
T-slot size (slot width)	14 mm, diagonal
Drilling table slewable	/- 45 degree
Drilling table rotatable	360 degree
Distance spindle - table	max. 600 mm
Distance spindle - stand	max. 1.170 mm
Stand work surface L x W	260 x 270 mm
Column diameter	92 mm
Length x width x height	790 x 400 x 1.730 mm
Net weight	137 kg

Cost-efficient bench drills and upright drilling machines with V-belt
Precisely machined drilling table, can be inclined by ± 45° and turnable by 360°
Solid, largely dimensioned base plate with slots, heavily ribbed at the rear side
400 volt types with right-/left-handed rotation cam switch
Millionfold proven quality
from OPTIdrill B 14: Serial T-slots for vice fixture
Ground multi-toothed follower
Best power transmission due to aluminium belt pulleys in connection with toothed GATES quality V-belt
V-belt cover with safety switch
Guaranteed true running accuracy of better than 0.03 mm measured in the drilling spindle
Drilling spindle with precision ball bearing
OPTIMUM quick-action drill chuck included in the standard scope of delivery
Spindle sleeve lever with softgrip handles for safe working
Drill depth stop
User-friendly switch according to IP 54 with undervoltage release
S eparate EMERGENCY-STOP push button
