Micro-Tec

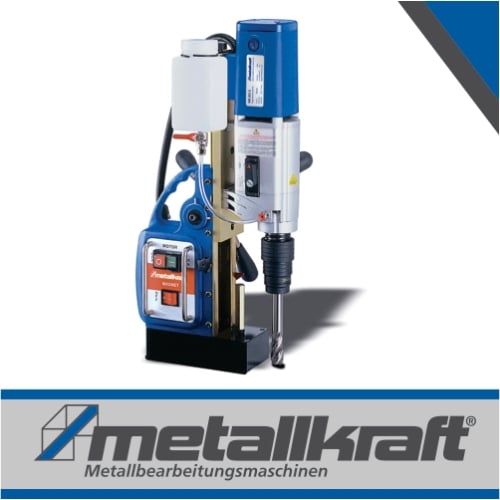

Metalkraft Magnetic Base Drilling Machine 35mm | MB202G

Metalkraft Magnetic Base Drilling Machine 35mm | MB202G
R 35,109.00 ZAR
R 35,109.00 ZAR
Sale Sold out
VAT included.

SKU:UPP-MB202G
Magnetic Base Core Drills
View Product details
product-img
Metalkraft Magnetic Base Drilling Machine 35mm | MB202G
R 35,109.00 ZAR
R 35,109.00 ZAR
VAT included.

Magnetic core drill

Technical specifications

Drill Ø max. with core drill 35 mm
Drilling depth max. with core drill 50 mm
Drill Ø max. Full drill bit with adapter & drill chuck mounted 13 mm
Drilling depth max. Full drill bit with adapter & drill chuck mounted 110 mm
Spindle taper firmly
Recording Weldonschaft 19 mm
Speed ​​(s) 330 1 / min
engine power 1100 W
Electrical voltage 230V
Phase (s) 1 Ph
Current Type ~
power frequency 50 Hz
Magnetic holding power 15000 N
Dimensions magnetic base 180 x 80 mm
Dimension max. 280 x 205 x 395 mm
Weight (device) 13.7 kg
Sound pressure level Lp 94 dB (A)
Sound power level Lw 107 dB (A)
Measurement uncertainty K 3 dB (A)
vibration

description

  • MB - High-quality magnetic core drilling machines for versatile use
  • For core drills with 19 mm Weldon shank
  • Stable drill guide due to the long and especially deep mounted quill holder
  • Device is earthed and double insulated, making it ideal for the job site
  • High magnetic holding force
  • High quality construction
  • The coolant is passed through the drill
  • Conversion from core drilling to full drilling in just a few steps
  • Safe and reliable functions

Special features MB 202 G

  • Integrated and automatic coolant supply
  • Reversal of the direction of rotation of the tap without changing the direction or stopping the motor
  • 3 functions: thread cutting, core drilling and solid drilling

Room amenities:

  • Integrated autom. Coolant supply
  • Change of direction of the tap
  • (without changing direction or stopping the motor) 3 functions: thread cutting, core drilling and solid drilling
  • Optimum stable drill guide due to long-dimensioned and particularly deep mounted quill guide
  • Conversion from core drilling to full drilling in just a few steps

Scope of delivery & equipment

  • 1 coolant tank and coolant line
  • 1 protection device
  • operating tool
  • Plastic carrying case

ON ORDER ONLY
