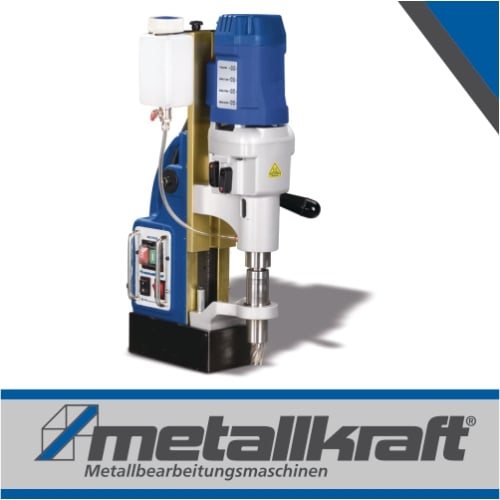

Metalkraft Magnetic Base Drilling Machine 75mm | MB754
R 34,219.00 ZAR
R 34,219.00 ZAR
VAT included.

Magnetic drilling machine

Technical Specifications

Max. drill Ø / Core drilling 75 mm
Max. drilling depth / Core drilling 50 mm
Max. drill Ø / Full drilling directly mounted 32 mm
Max. drilling depth / Full directly mounted 150 mm
Max. drill Ø / Full drilling adapter and drill chuck 16 mm
Max. drilling depth / Full drilling adapter and drill chuck 110 mm
Spindle chuck MK 3
Weldon shaft holder 19 mm
Speed under load 90 / 120 / 180 / 230 rpm
Motor output 2 kW
Electrical connections 230 V
Phase(s) 1 Ph
Kind of current ~
Mains frequency 50 Hz
Magnetic holding force 32000 N
Magnetic foot dimensions 200 x 100 mm
Max. dimension 330 x 125 x 476 mm
Weight 24.8 kg
Sound pressure level 97 dB(A)
Sound power level 110 dB(A)
Uncertainty of measurement K 3 dB(A)
Vibration

Description

  • High-quality magnetic core drilling machines for versatile use. Drilling large diameters economically and rapidly.
  • For core drills with 19 mm Weldon shaft
  • Stable drilling guidance thanks to long and especially deep-mounted spindle sleeve guidance
  • Device is earthed and double isolated, hence ideal for building sites
  • High magnetic holding force
  • Highest-quality design
  • The coolant is routed through the drill
  • Conversion from core to full drilling in just a few actions
  • Safe and reliable function

Special features MB 754

  • 4 speeds
  • with 2000 Watt motor
  • Max. magnetic holding force of 32,000 N
  • With spindle chuck MK 3
  • Clockwise/Anti-clockwise rotation

Features:

  • Four speeds
  • With 2000 Watt motor
  • Max. magnetic holding force of 32,000 N
  • With spindle chuck MK 3
  • Clockwise/Anti-clockwise rotation
  • Multiple speed ranges adjustable
  • Conversion from core to full drilling with just a few actions

Delivery Information

  • Coolant tank and coolant line
  • Protection device
  • Operating tool
  • Plastic carrying case
  • Chain
  • clearing cotter
