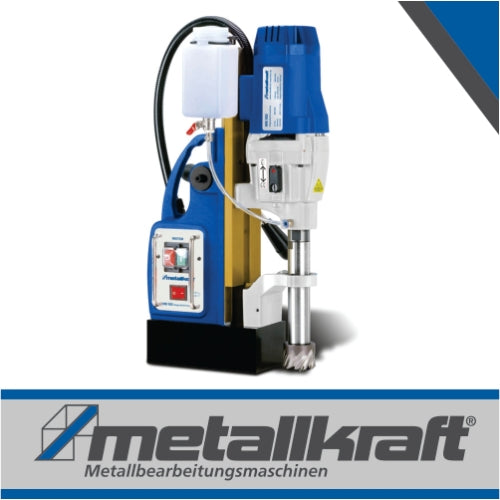

Metalkraft Magnetic Base Drilling Machine 50mm | MB502

Metalkraft Magnetic Base Drilling Machine 50mm | MB502
R 23,289.00 ZAR
R 23,289.00 ZAR
Sale Sold out
VAT included.

SKU:UPP-MB502

Availability : Low stock: 4 left at the External Warehouse!
Best Selling Products Dust Collectors Magnetic Base Core Drills
View Product details
product-img
Metalkraft Magnetic Base Drilling Machine 50mm | MB502
R 23,289.00 ZAR
R 23,289.00 ZAR
VAT included.

Magnetic drilling machine

Technical specifications

Drill Ø max. with core drill 50 mm
Drilling depth max. with core drill 75 mm
Drill Ø max. Full drill bit with adapter & drill chuck mounted 16 mm
Drilling depth max. Full drill bit with adapter & drill chuck mounted 110 mm
Spindle taper M 24
Recording Weldonschaft 19 mm
Speed ​​(s) 230/300 1 / min
engine power 2 kW
Electrical voltage 230V
Phase (s) 1 Ph
Current Type ~
power frequency 50 Hz
Magnetic holding power 32000 N
Dimensions magnetic base 200 x 100 mm
Dimension max. 330 x 125 x 476 mm
Weight (device) 22.9 kg
Sound pressure level Lp 97 dB (A)
Sound power level Lw 110 dB (A)
Measurement uncertainty K 3 dB (A)
vibration

description

  • High-quality magnetic core drilling machines for versatile use. Drill large diameters economically and quickly
  • For core drills with 19 mm Weldon shank
  • Stable drill guide due to the long and especially deep mounted quill holder
  • Device is earthed and double insulated, making it ideal for the job site
  • High magnetic holding force
  • High quality construction
  • The coolant is passed through the drill
  • Quick release for easy change of core bits
  • Conversion from core drilling to full drilling in just a few steps
  • Safe and reliable function

Special features MB 502

  • Two speeds
  • 2,000 watts motor
  • Max. Magnet holding force of 32,000 N

Room amenities:

  • Two speeds
  • 2,000 watts motor
  • Quick release chuck
  • Max. Magnet holding force of 32,000 N
  • Several speed ranges adjustable
  • Quick release chuck
  • Conversion from core drilling to full drilling in just a few steps

Scope of delivery & equipment

  • 1 coolant tank and coolant line
  • 1 protection device
  • operating tool
  • Plastic carrying case
  • 1 chain
