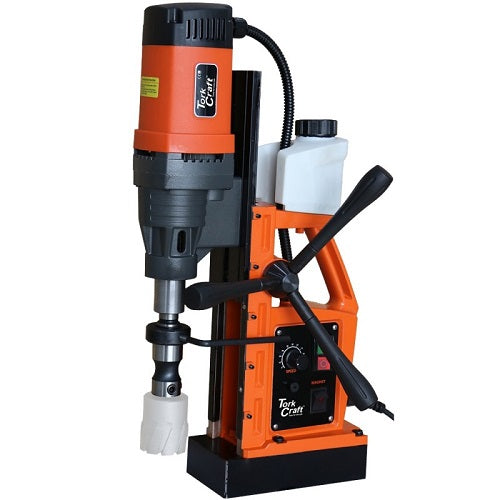

Tork Craft Magnetic Base Core Drill 60mm 1890W | TCMD0068HD

Tork Craft Magnetic Base Core Drill 60mm 1890W | TCMD0068HD.

Magnetic base core drills offer precise, high-speed drilling in construction and metalworking. Portable, versatile, and stable for any job site.

• The magnetic base drill is fitted on a strong dual-coil magnet with a maximum core drill capacity of 60mm. The speed is adjustable electronically between 100-440 rpm.
• Great for horizontal, side face and top face drilling.

Application:

• Building construction
• Bridge construction
• Ship/Marine Construction
• Annular cutters or twist drill bits
• Horizontal or overhead drilling

Features:

• Variable Speed
• Strong dual coil magnet
• With overload protection
• Constant power soft-starting
• Integrated slide and gearbox provides high accuracy and minimal vibration
• High power and light weight
• Electric stepless speed-regulation
• Horizontal level, side face and top face drilling

Getting the best out of a Magnetic base drill:

• Always wear proper safety PPE (Personal Protective Equipment).
• Ensure the machine is switched off and unplugged from the power supply when changing or adjusting the cutting bits.
• During machine operation the cutters and drill bits must be lubricated and cooled with a suitable cutting fluid.
• Ensure the surface where the machine will be placed on is level, rust free and clean of any varnish or paint.
• Do not try and use the magnetic drill on a non-magnetic surface.
• Do not use the magnetic drill on a structure where welding is in progress as it could cause damage to the machine.
• Always use core drill bits with a pilot pin

Technical Data:

Downloads:

TCMD0068HD - Specification Sheet
TCMD0068HD - Instruction Manual
TCMD0068HD - Parts Exploded View
