Optimum Optidrill D23PRO Drilling | OPTI D23 PRO

Optimum Optidrill D23PRO Drilling | OPTI D23 PRO
R 16,659.00 ZAR
R 16,659.00 ZAR
Sale Sold out
VAT included.

SKU:UPP-OPTI D23 PRO
Drill Presses
View Product details
product-img
Optimum Optidrill D23PRO Drilling | OPTI D23 PRO
R 16,659.00 ZAR
R 16,659.00 ZAR
VAT included.

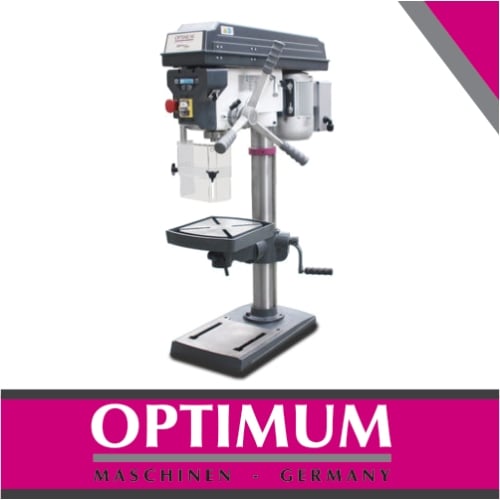

OPTIdrill D 23Pro (230 V)

Bench Drill

Drilling machines with V-belt

Technical Specifications

Dimensions and weights
Column diameter 73 mm
Length 615 mm
Width / depth 330 mm
height 1015 mm
Weight approx. 58 kg
Drilling performance
Drilling performance steel (S235JR) 25 mm
Continuous drilling performance steel (S235JR) 20 mm
Drilling table
Workspace length 280 mm
Workspace width 245 mm
T-groove size 12 mm
rotation 360 °
Angle 45 °
Max. Distance spindle - drilling table 425 mm
Drive output
Main engine 0.75 kW
Electric Data
Supply voltage 230V
Machine base
Max. Distance spindle - machine base 618 mm
Work area length 240 mm
Work area width 250 mm
Machine base T-groove size 16 mm
Machine base T-groove number 2
Machine base T-groove spacing 170 mm
Speed ​​range
Speed ​​range 200-2,440 min¯¹
Number of gears 12 stages
Spindle
Quill stroke 80 mm
Chuck chuck MT 2
Reach 180 mm
VPE 1

 Description

  • Industrial engine
  • Easy to use safety switch according to IP 54
  • Digital drilling depth and speed indicator integrated in the housing
  • Separate emergency stop impact switch
  • Precision Spindle bore
  • Safety electronics in 24 V DC
  • Guaranteed concentricity less than 0.02 mm in the drill quill
  • Drill spindle with precision ball bearings
  • High quality keyless chuck
  • Depth stop
  • Precision machined, stable drill table with diagonal T-slots and circumferential cooling water channel
  • V-belt cover with safety switch
  • One piece cast aluminum die-cast quill lever with softgrip handles
  • Large, height-adjustable protective screen with safety switch
  • Heavy version of the entire machine

From D 23 Pro

  • GATES quality strap

Scope of Delivery

  • Keyless chuck 1 - 16 mm
  • Morse cone MK 2 / B16
  • T-nuts
