Milescraft DrillMatePRO, HD Portable Drill Press | 1348

Milescraft DrillMatePRO, HD Portable Drill Press | 1348.

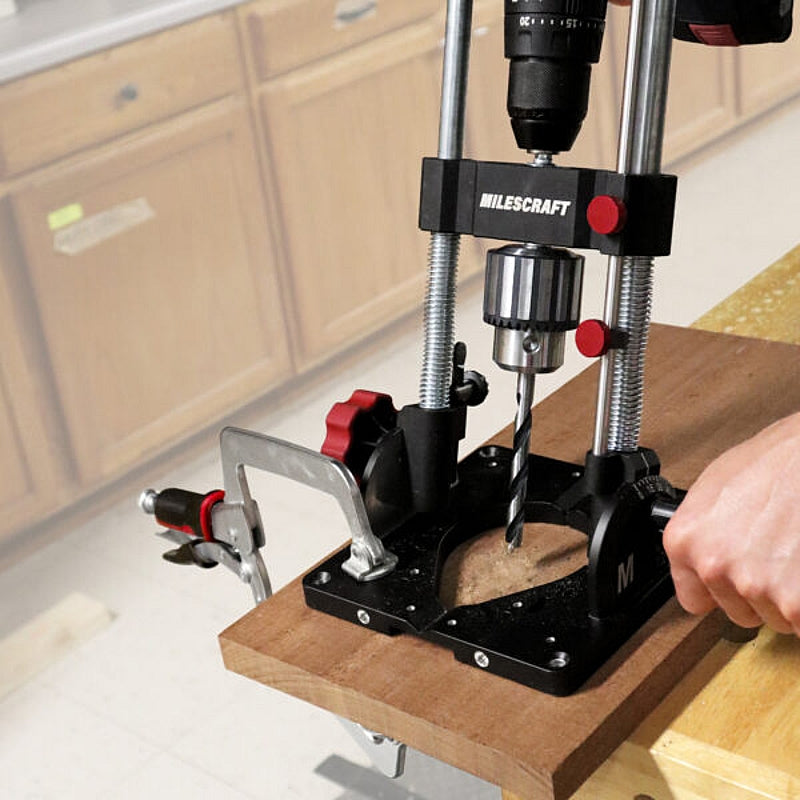

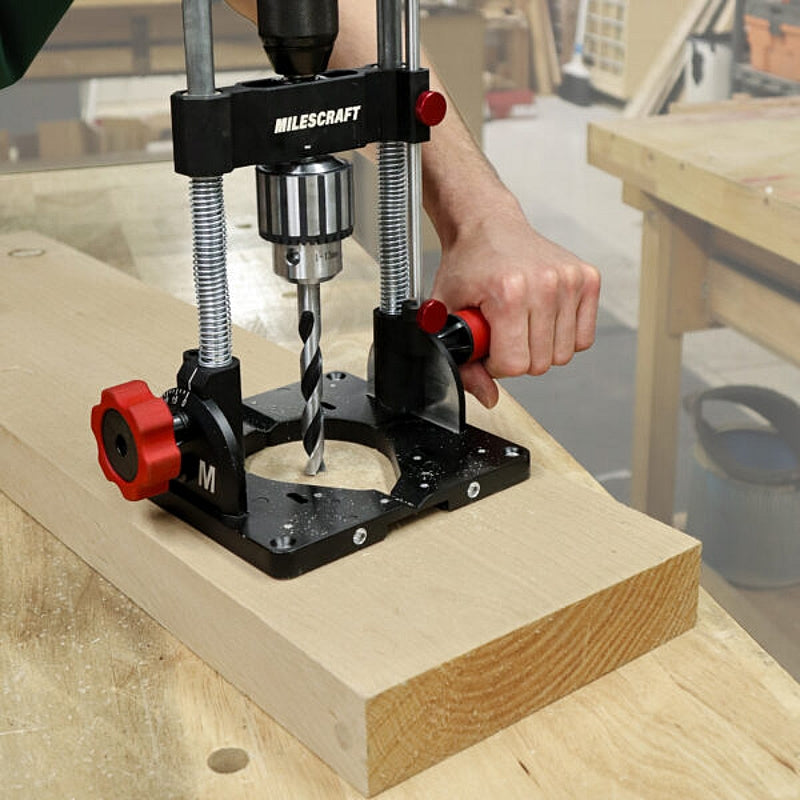

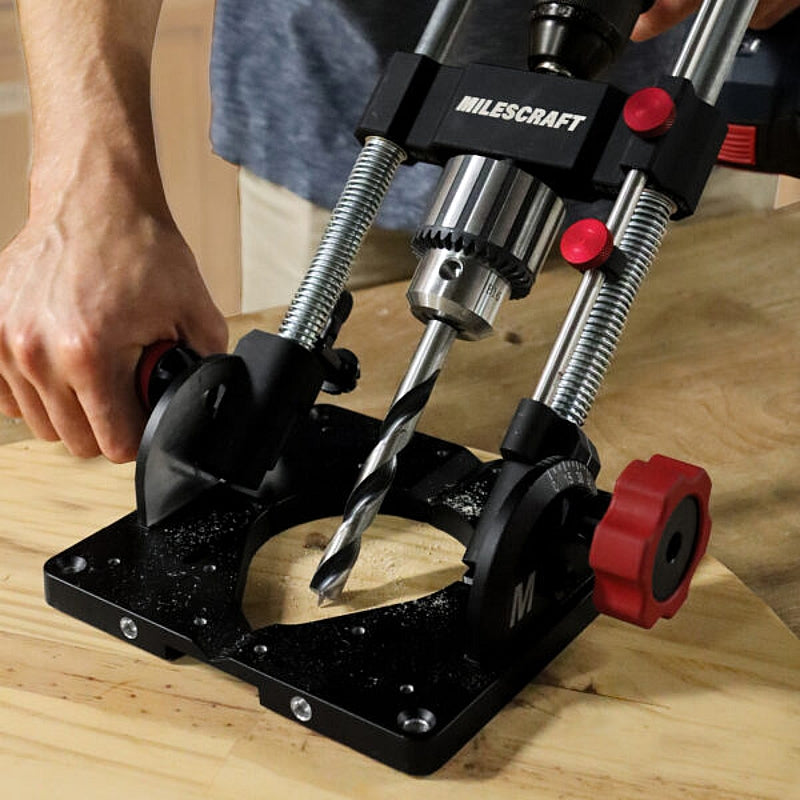

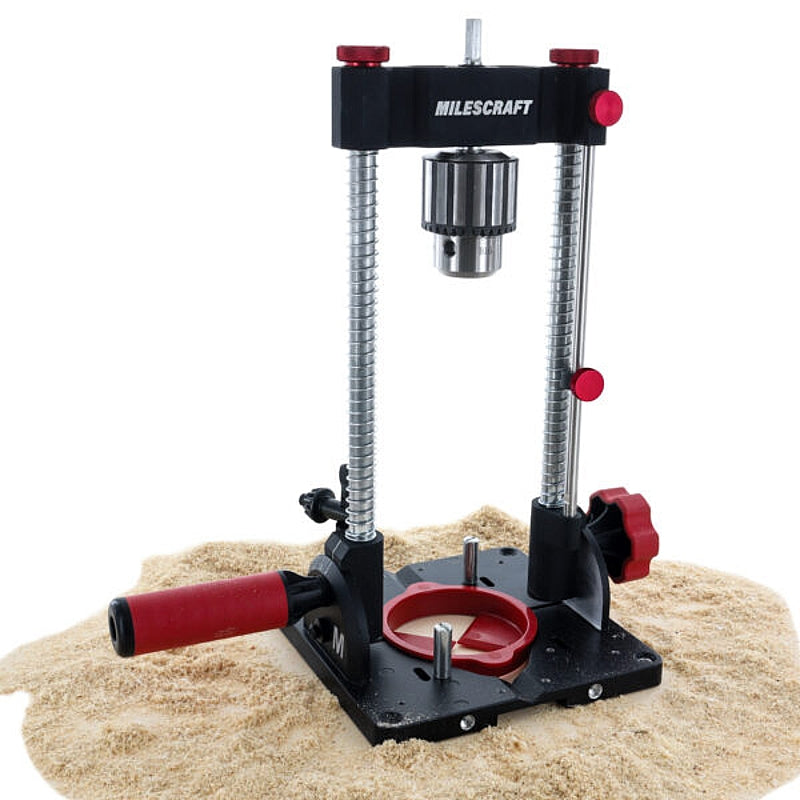

The Milescraft DrillMatePRO™ is a professional-grade portable drill press that brings controlled, drill-press-style accuracy directly to the job. Designed for situations where taking the work to a stationary drill press is not practical, this robust solution allows users to take precision drilling to the workpiece instead.

Moreover, the all-metal construction ensures enhanced durability, stability, and accuracy, while the extruded aluminium guide head with bronze bushings provides smooth, controlled movement with minimal play. The DrillMatePRO™ supports infinite angle adjustments from 0° to 60°, making it suitable for angled drilling tasks across a wide range of applications.

In addition, features such as dual springs for balanced drilling pressure, an independent depth stop for repeatable results, and built-in centring aids for round stock further improve accuracy and ease of use. Supplied fully assembled, the DrillMatePRO™ allows users to get to work immediately, delivering reliable performance for both professional and advanced DIY applications.

Features & Benefits:

• Heavy-Duty All-Metal Construction: Enhances durability, accuracy, and long-term performance.
• ½" Keyed Chuck: Provides secure bit retention for consistent drilling results.

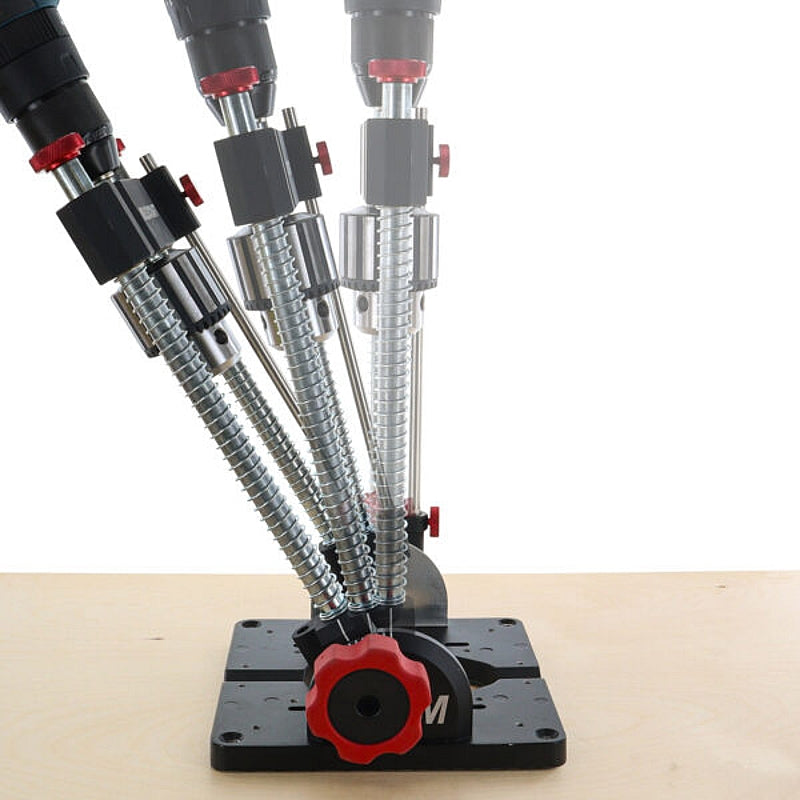

• Adjustable Drilling Angles: Allows drilling at any angle between 0° and 60° for versatile applications.
• Extruded Aluminium Guide Head: Works with bronze bushings to reduce play and improve control.
• Dual Spring Design: Delivers improved balance and smoother drilling action.
• Independent Depth Stop: Enables repeatable drilling depths without interference from springs.

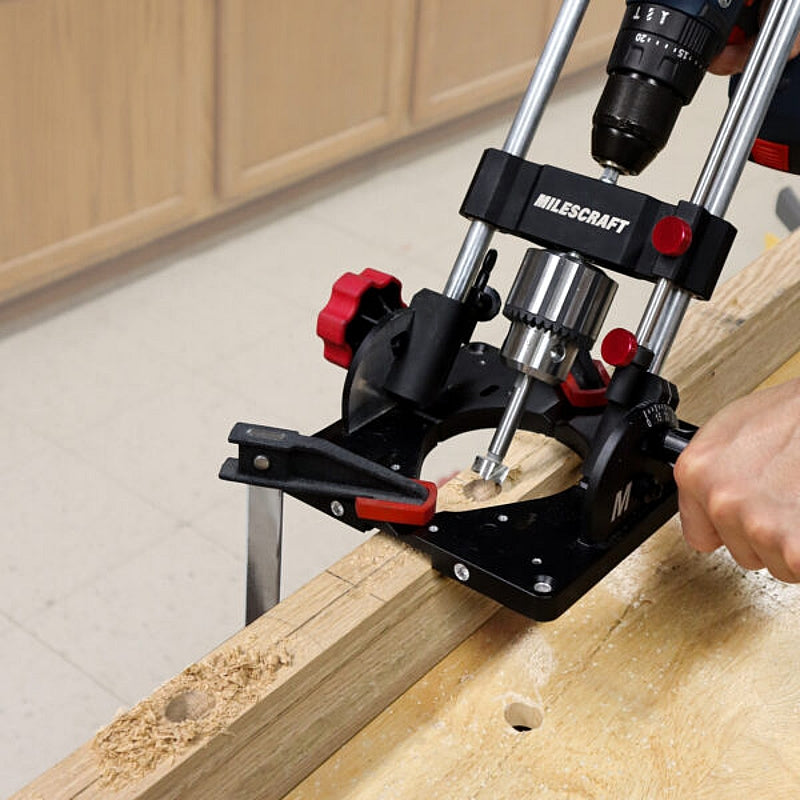

• V-Groove Base Channel: Holds and centres round stock securely during drilling.

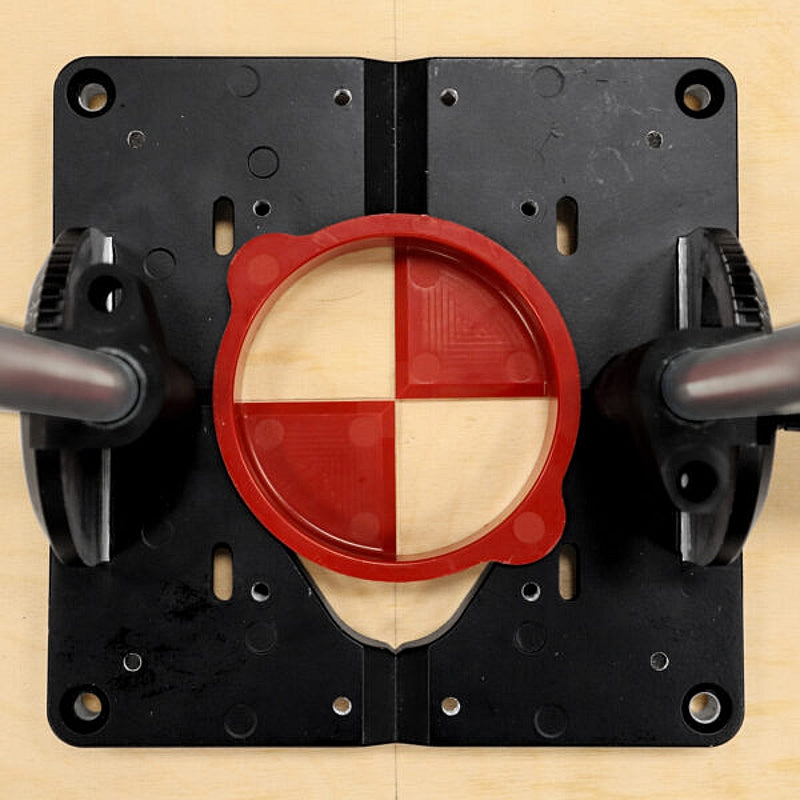

• Integrated Centreing System: Includes centring pins and alignment disk for accurate hole placement.
• Non-Slip Rubber Feet: Prevents movement and protects the workpiece surface.
• Guide Head Lock: Holds position when changing bits or setting drilling depth.
• Large Rubber-Coated Handles: Improves grip and user control.

Specifications:

• Code: 1348
• Barcode: Not provided
• Material: Machined Aluminium
• Chuck: 1/2" Tapered B16 Chuck (13 mm)
• Chuck Key: 1/2" (13 mm)
• Spindle Size: 3/8" Hex (9.5 mm)
• Bearings: Dual Ball Bearing Spindle
• Drilling Angles: 0° to 60°
• Drill Bit Clearance: 9" (229 mm)
• Travel Distance with Springs: 6" (152 mm)
• Travel Distance without Springs: 8" (203 mm)
• Travel Distance without Springs and Depth Stop: 8.5" (216 mm)
• Base Opening: 3.5" (89 mm)
• Base Dimensions: 7-1/16" × 7-1/16" (180 mm × 180 mm)
• Guide Bar Diameter: 0.55" (14 mm)
• Distance Between Guide Bars: 4-3/8" (111 mm)
• Product Height: 13-5/8" (346 mm)

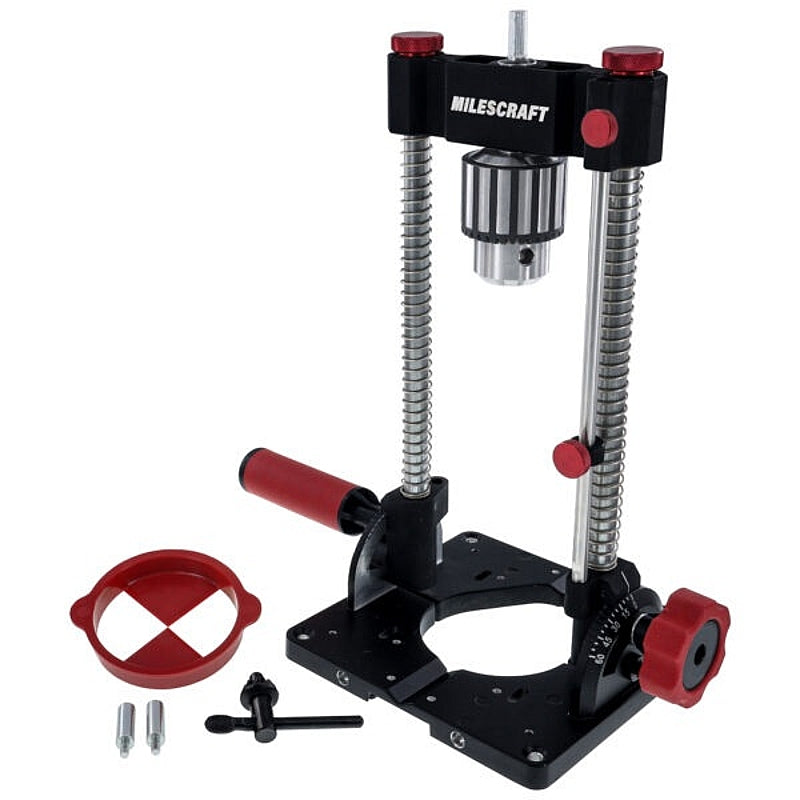

Scope of Delivery:

• Assembled Milescraft DrillMatePRO™
• Angle Adjust Knob
• Support Handle
• Centering Pins (2)
• Alignment Disk
• 1/2" Chuck Key (13 mm)

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
