CNC BASIX - Timing Belt CNC Machine, 1.5M x 2.5M | AXYZ1525T.

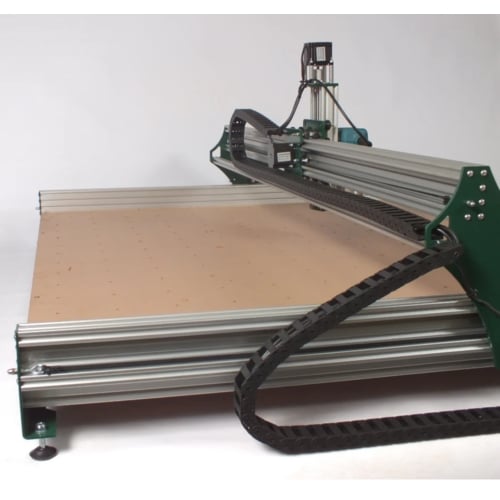

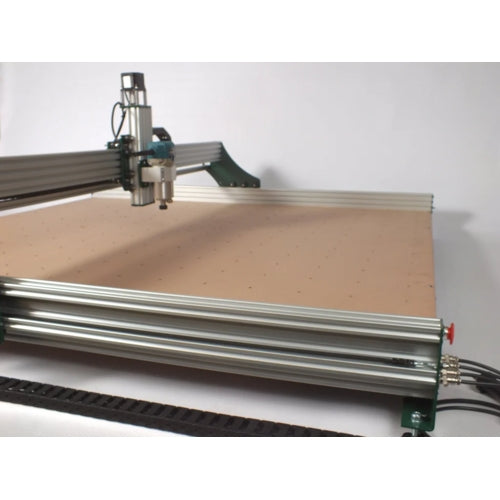

The CNC BASIX - Timing Belt CNC Machine, 1.5M x 2.5M | AXYZ1525T is a versatile and reliable cutting solution for those looking to enter the world of CNC machining. Designed for light to moderate workloads, it is capable of cutting wood, PCBs, and perspex with precision. Depending on the material density and cutting bit used, it can achieve a cutting depth of up to 1mm per pass.

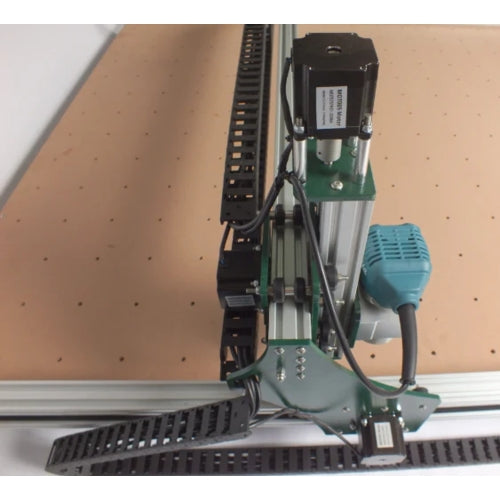

Equipped with a steel-reinforced GT3 timing belt on the X and Y axes, this machine ensures stable and precise movement. Its open-ended design allows for the pass-through of longer materials, providing flexibility for extended workpieces. Built with an all-aluminium frame, it offers durability while maintaining a lightweight structure.

The machine comes with a Makita RT0700C 700W Router, offering manual speed control between 12,000 and 30,000 RPM. Additionally, an MDF wasteboard with fastening clamps is included for enhanced workpiece stability during cutting operations.

Features & Benefits:

• Footprint: 1500mm x 2500mm
• Work Area: 1300mm x 2300mm x 50mm
• Steel-Reinforced GT3 Timing Belt: Ensures smooth and accurate motion along the X and Y axes.
• Dual Motors on Y-Axis: Provides enhanced stability and precision.
• All-Aluminium Frame: Durable yet lightweight for long-term reliability.
• Open-Ended Design: Allows pass-through cutting of longer materials.
• Makita RT0700C Router: A 700W router with adjustable speeds from 12,000 to 30,000 RPM.
• Adjustable Cutting Depth: Up to 50mm, depending on the cutting bit used.
• Electronics Controller Box: Features a USB cable connection for smooth operation.
• Full Cable Management: Includes X & Y axis cable drag chains for organized and secure wiring.
• Includes MDF Wasteboard: Comes with fastening clamps for secure material placement.

Requirements:

• Personal computer or laptop running Windows 7, 8, or 10.
• USB port on the computer.
• Open Builds Operating Software (included).
• Easel 30-Day Free Trial - Online Cloud-Based App used for designing and cutting.

Alternative Designing Software:

• Vectric: Basic training available at additional cost.
• Fusion 360: Basic training available at additional cost.

Specifications:

Footprint: 1500mm x 2500mm
Work Area: 1300mm x 2300mm x 50mm
Cutting Depth: Up to 50mm (depending on the bit used)
Drive System: GT3 reinforced neoprene 3mm pitch timing belts (X & Y axes)
Motors: 4 x Nema23 stepper motors
Controller Board: 4-axis stepper motor driver
Power Supply: 24V 10A 250W
Router Compatibility: Makita RT0700C (65mm spindle mount)
Manual Speed Control: 12,000 – 30,000 RPM
Resolution: Configured to 0.3mm
Collets: 3mm, 6mm

Scope of Delivery:

• CNC BASIX - Timing Belt CNC Machine (AXYZ1525T)
• Makita RT0700C 700W Router
• 5 Cutting Bits (1mm, 1.5mm, 2mm, 2.5mm, 3mm)
• Collets (3mm, 6mm)
• Electronics Controller Box with USB Cable
• MDF Wasteboard with Fastening Clamps
• Full Cable Management System with X & Y Axis Cable Drag Chains

Training & Delivery:

• Compulsory delivery, setup, and minimal training of the machine available at additional cost.
• Delivery available within South Africa only.

Lead Times:

• Gauteng & Surrounding Provinces: 3-5 Weeks
• Northern, Eastern & Western Cape: 5-8 Weeks

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.

Upgrades:

We also have upgrade options available, simply complete the form below with your details, and we will send you a quote or proforma by email! Don’t worry; your information is safe with us! We promise not to share your details with any third parties—your secrets are safe! Plus, we strictly follow our privacy policy to keep everything under wraps.[/vc_column_text]
