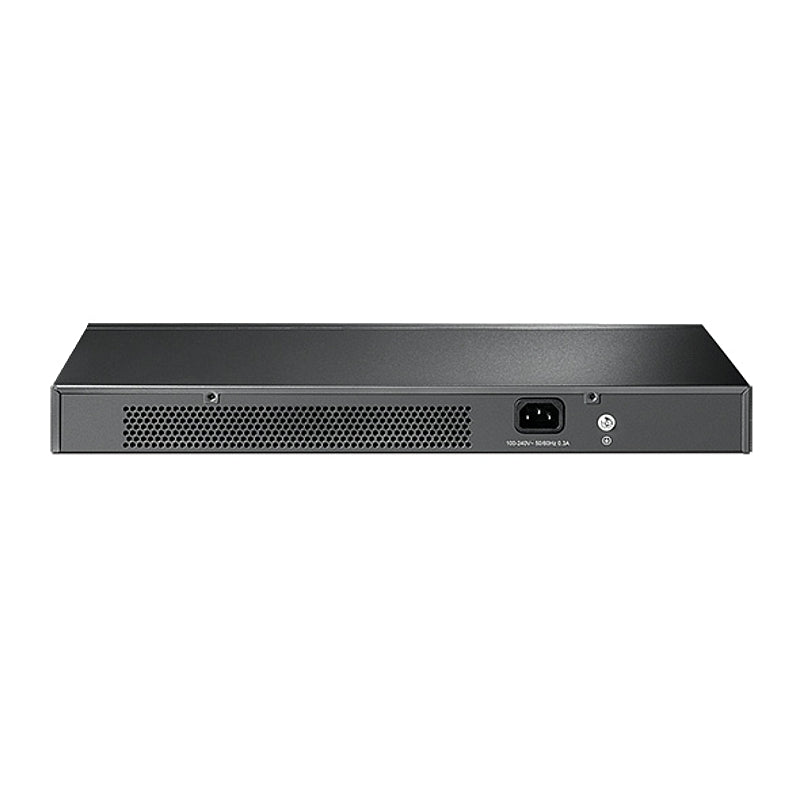

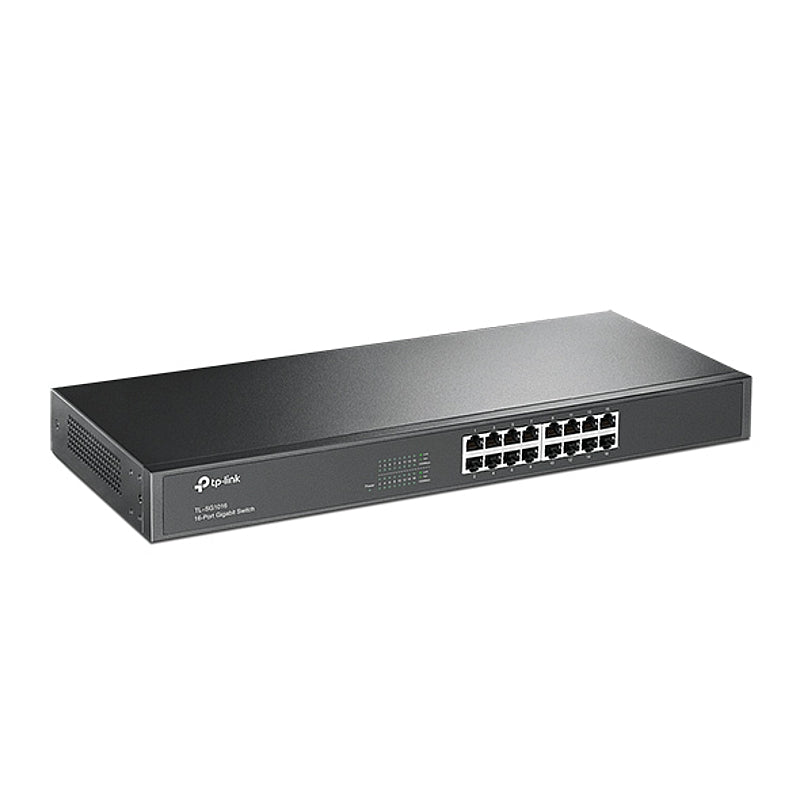

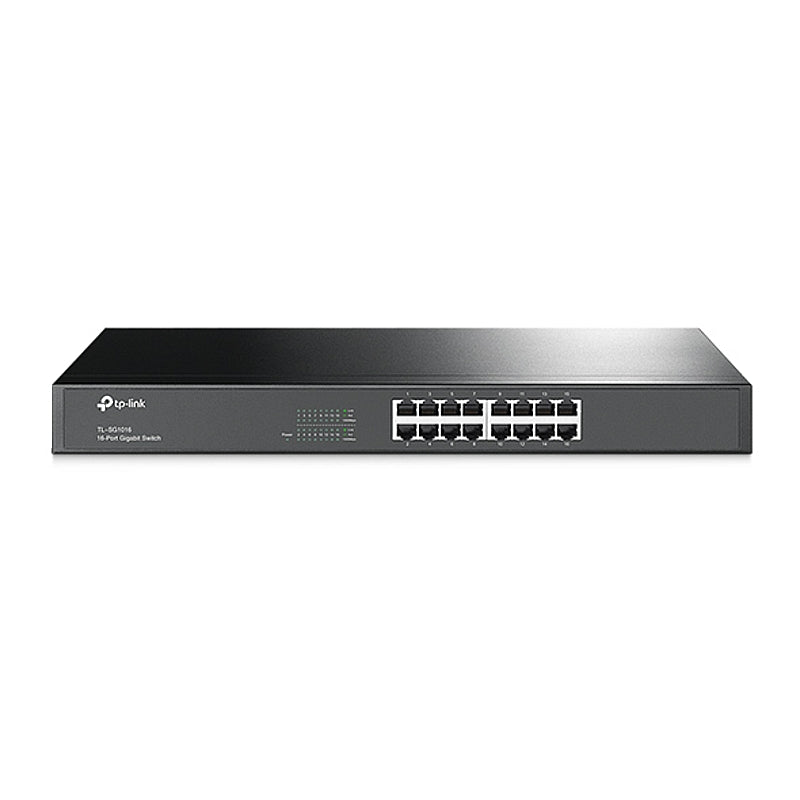

TP-Link 16-Port Gigabit Rackmount Switch | TL-SG1016

TP-Link 16-Port Gigabit Rackmount Switch | TL-SG1016.

The 16-Port Gigabit Rackmount Switch delivers high-speed unmanaged Gigabit Ethernet connectivity with 16 auto-negotiation RJ45 ports, fanless silent operation, isolation and loop prevention modes, jumbo frame support, QoS, green energy-saving technology, and rack-mount design for efficient medium-sized network deployments.

Features & Benefits:

• 16 10/100/1000Mbps RJ45 ports

• Innovative energy-efficient technology saves power consumption

• Supports MAC address self-learning and auto MDI/MDIX

• Standard 19-inch rack-mountable steel case

What This Product Does.

The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-Link Green Technology.

This new generation TL-SG1016 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance.

All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large file transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1016 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use.

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Specifications:

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
• Interface: 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m); 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100 m)
• Fan Quantity: Fanless
• Physical Security Lock: No
• Power Supply: 100-240VAC, 50/60Hz
• Dimensions (W x D x H): 17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm)
• Mounting: Rack Mountable
• Max. Power Consumption: 10.44 W
• Max Heat Dissipation: 35.60 BTU/h
• Switching Capacity: 32 Gbps
• Packet Forwarding Rate: 23.8 Mpps
• MAC Address Table: 8K
• Advanced Features: Isolation Mode: Ports 1-14; Loop Prevention: Ports 1-16; Jumbo Frame 10 KB; QoS 802.1p/DSCP QoS (Only for V12 and later version); Green Technology Yes
• Transmission Method: Store-and-Forward
• Certifications: FCC, CE, RoHS
• Environment - Operating Temperature: 0℃~40℃ (32℉~104℉)
• Environment - Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Environment - Operating Humidity: 10%~90% non-condensing
• Environment - Storage Humidity: 5%~90% non-condensing

Scope of Delivery:

• 16-Port Gigabit Rackmount Switch
• Power Cord
• Installation Guide
• Rackmount Kits
• Rubber Feet
