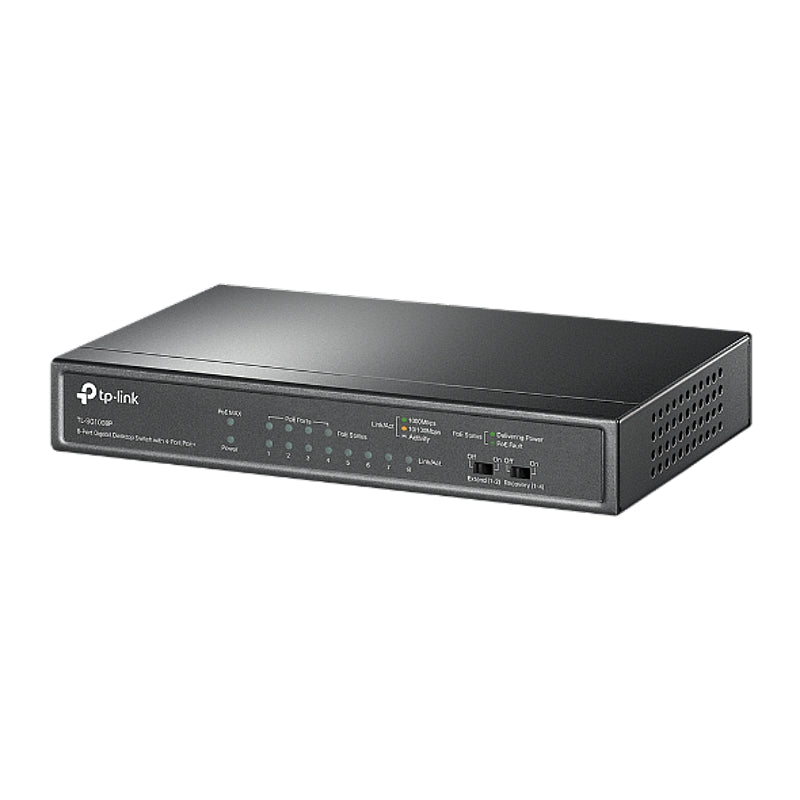

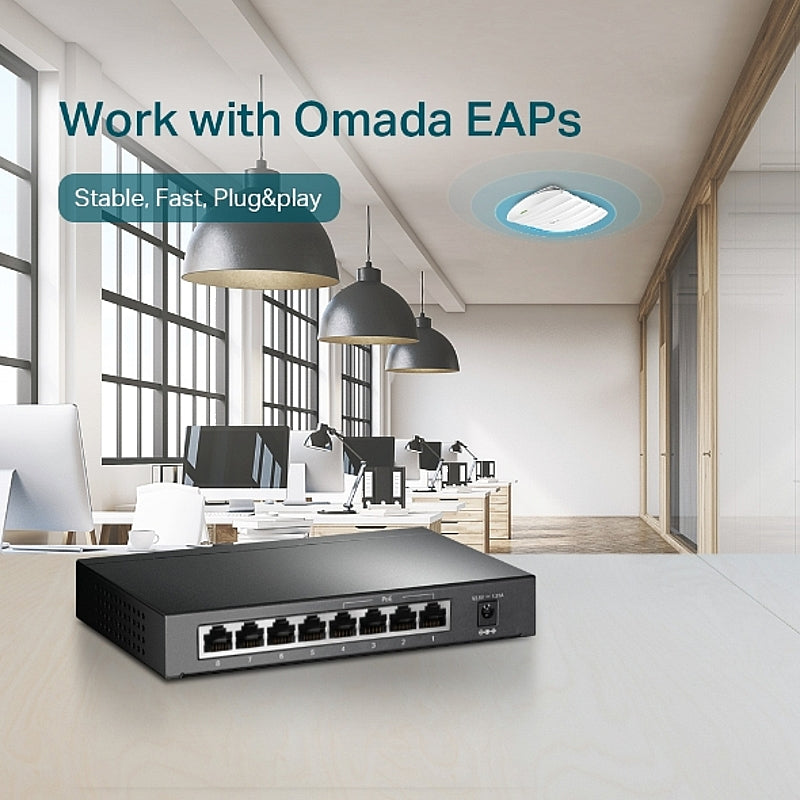

TP-Link 8-Port Gigabit Desktop Switch with 4-Port PoE+ | TL-SG1008P

TP-Link 8-Port Gigabit Desktop Switch with 4-Port PoE+ | TL-SG1008P.

The TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE+ provides high-speed Gigabit connectivity and 64W PoE power on ports 1–4, with fanless design, Extend Mode for 250m PoE reach, auto-recovery, QoS, IGMP Snooping, and compact plug-and-play setup for IP cameras, VoIP, and wireless access points.

Features & Benefits:

• 8× 10/100/1000 Mbps RJ45 ports.

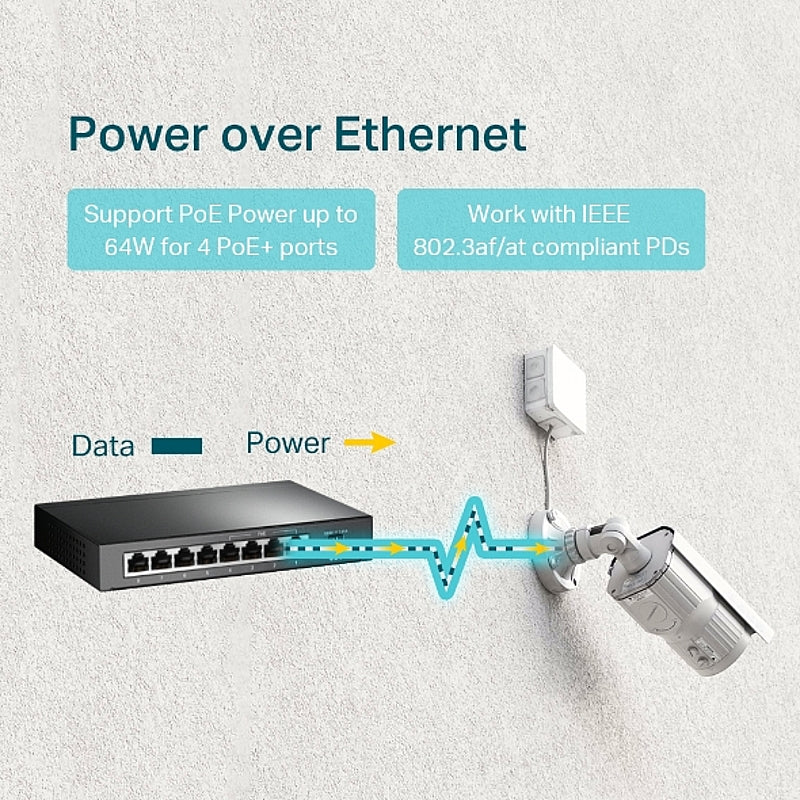

• 4× PoE+ ports transfer data and power on individual cables.

• Works with IEEE 802.3af/at compliant PDs.

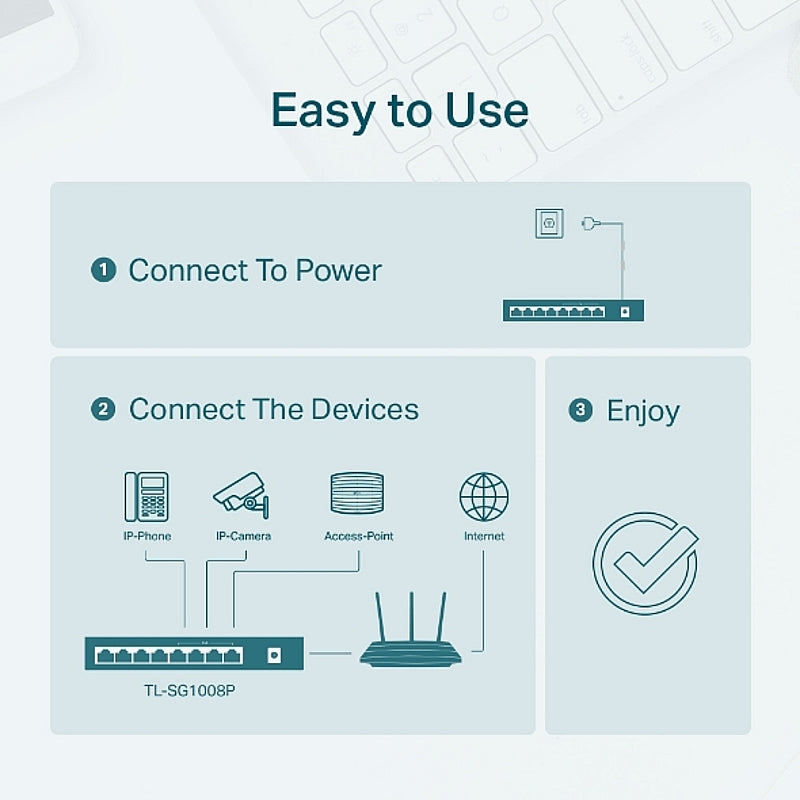

• Plug and Play, no configuration and installation required.

• 802.1p/DSCP QoS enable smooth latency-sensitive traffic.

• Supports PoE power up to 30 W for each PoE port.

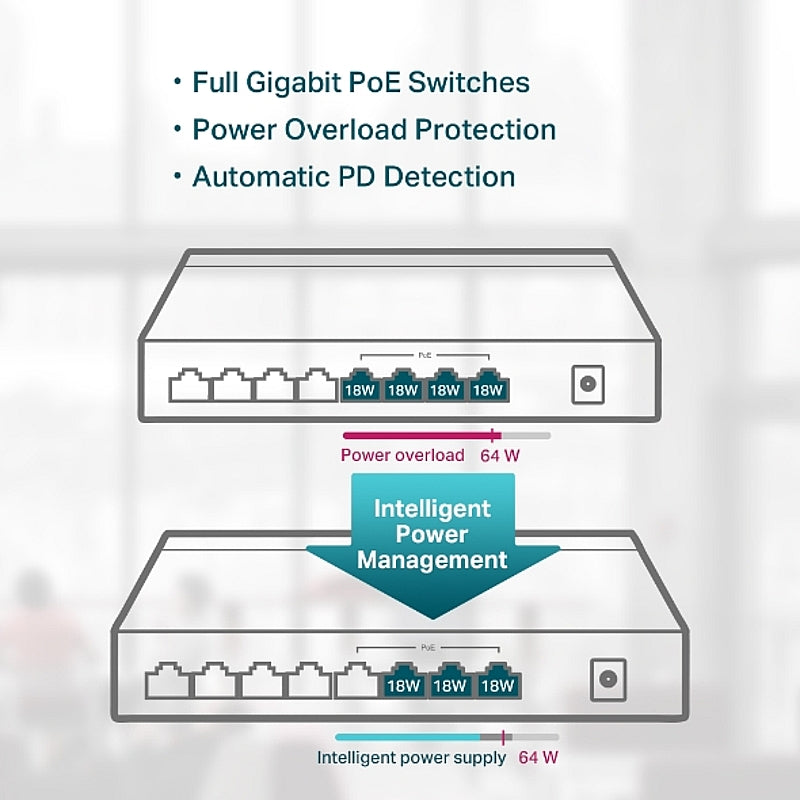

• Supports PoE power up to 64 W for all PoE ports*.

• Up to 250m data and power transmitting range under Extend Mode**

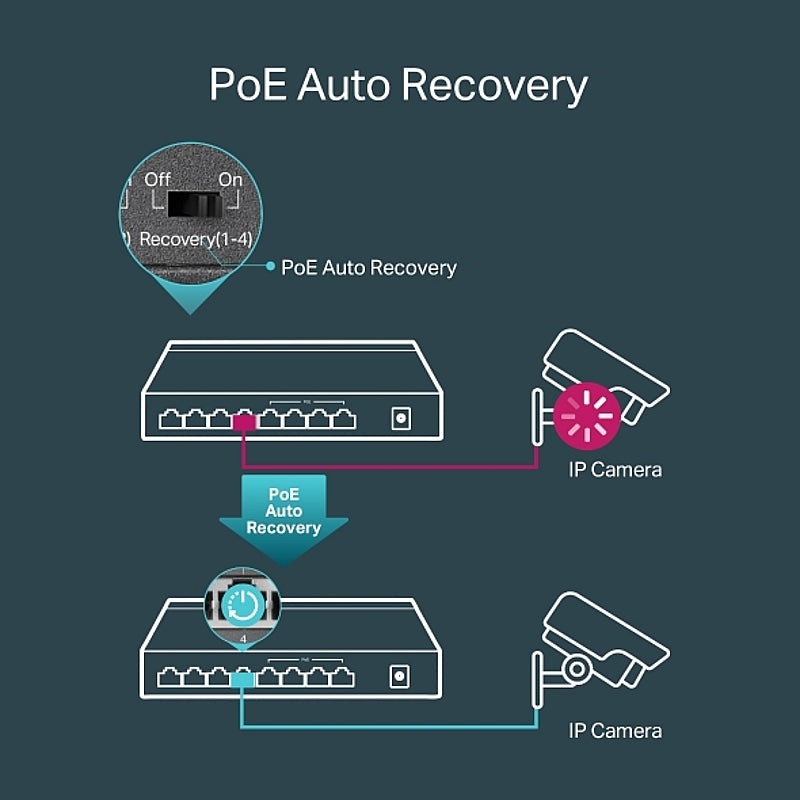

• PoE Auto Recovery guarantees stable operation of PoE devices by automatically
• rebooting the dropped or unresponsive PD devices

Learn more about TP-Link PoE technology >

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

Specifications:

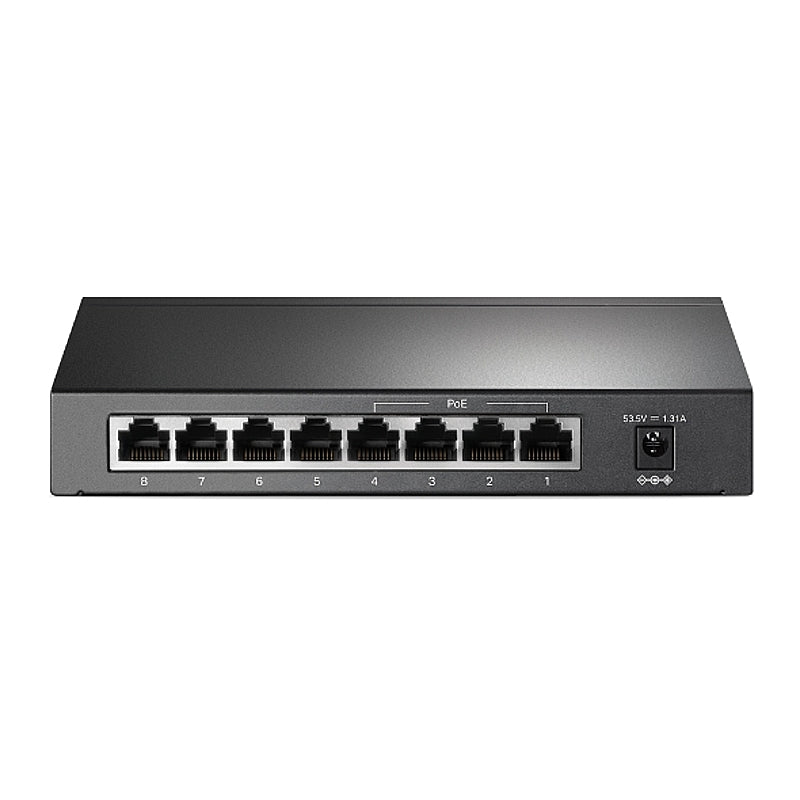

• Interface: 8× 10/100/1000 Mbps RJ45 Ports; AUTO Negotiation; AUTO MDI/MDIX
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m); 100BASE-TX: UTP category 5, 5e cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m); 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m)
• Fan Quantity: Fanless
• Physical Security Lock: Yes
• External Power Supply: External Power Adapter (Output: 53.5VDC / 1.31A)
• Packet Forwarding Rate: 11.904 Mpps
• PoE Ports (RJ45): Standard: 802.3af/at compliant; PoE Ports: Ports 1–4; Power Supply: 64 W
• MAC Address Table: 4K
• Jumbo Frame: 16 KB
• Switching Capacity: 16 Gbps
• Dimensions (W x D x H): 6.7 × 3.9 × 1.1 in. (171 × 98 × 27 mm)
• Max. Power Consumption: 4.7 W (220/50 Hz, no PD connected); 74.39 W (220/50 Hz, with 64 W PD connected)
• Max Heat Dissipation: 16.03 BTU/h (no PD connected); 253.67 BTU/h (with 64 W PD connected)
• Advanced Features: Compatible With IEEE 802.3af/at Compliant PDs; IGMP Snooping; MAC Address Auto-Learning And Auto-Aging; IEEE802.3x Flow Control; 802.1p/DSCP QoS; Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission); PoE Auto Recovery (Ports 1-4)
• Transmission Method: Store-And-Forward
• Certifications: CE, FCC, RoHS
• Environment - Operating Temperature: 0–40 ℃ (32–104 ℉)
• Environment - Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Environment - Operating Humidity: 10–90% RH non-condensing
• Environment - Storage Humidity: 5–90% RH non-condensing

Scope of Delivery:

• TL-SG1008P
• Power Adapter
• Installation Guide
