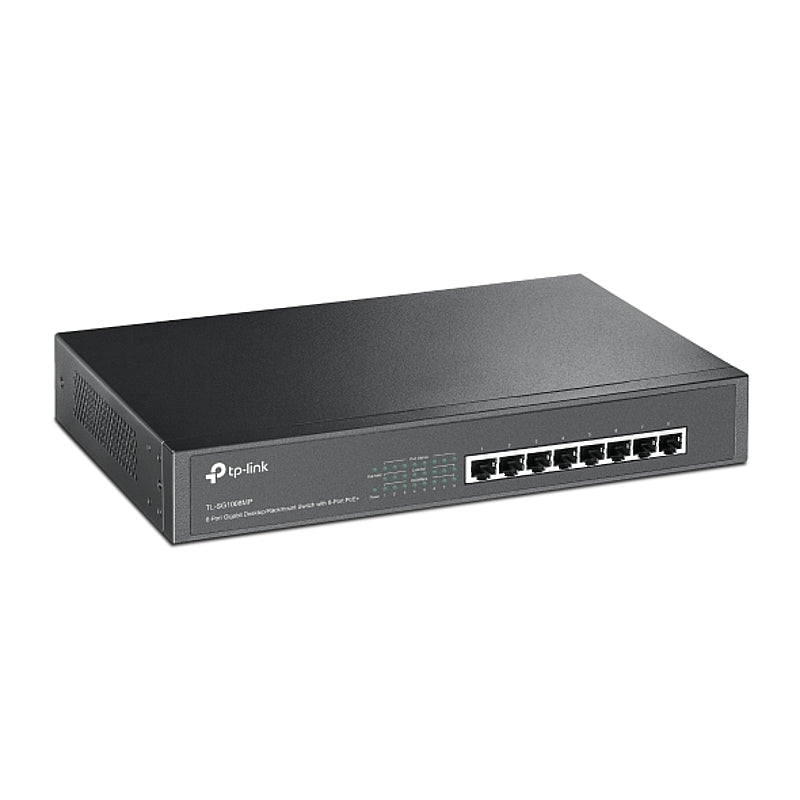

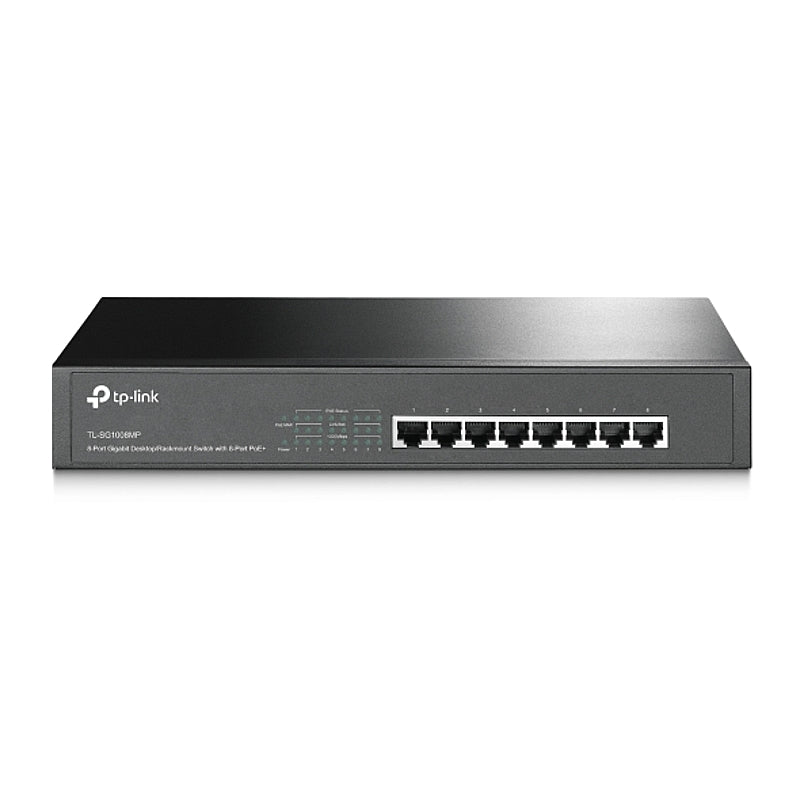

TP-Link 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ | TL-SG1008MP

TP-Link 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ | TL-SG1008MP.

The TL-SG1008MP 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+ delivers full Gigabit speeds and 153W PoE power across all 8 ports, supporting IEEE 802.3af/at devices, fan-cooled design, QoS, flow control, jumbo frames, and rack-mount flexibility for IP cameras, VoIP phones, and wireless access points in small to medium networks.

Features & Benefits:

• 8 10/100/1000Mbps RJ45 ports

• Equipped with 8 PoE+ supported ports to transfer data and power over a single cable

• Works with IEEE 802.3af/at compliant devices, expanding home and office networks

• Innovative energy-efficient technology reduces power consumption by up to 75%*

• Supports PoE+ standard with total power budget of 126W and up to 30W per port

• Plug and play design, no configuration required

*Actual data may vary in different usage environment.

Learn more about TP-LINK PoE technology >

Specifications:

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
• Interface: 8 10/100/1000Mbps RJ45 Ports; AUTO Negotiation/AUTO MDI/MDIX
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m); 100BASE-TX: UTP category 5, 5e cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m); 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m)
• Fan Quantity: 1
• Physical Security Lock: No

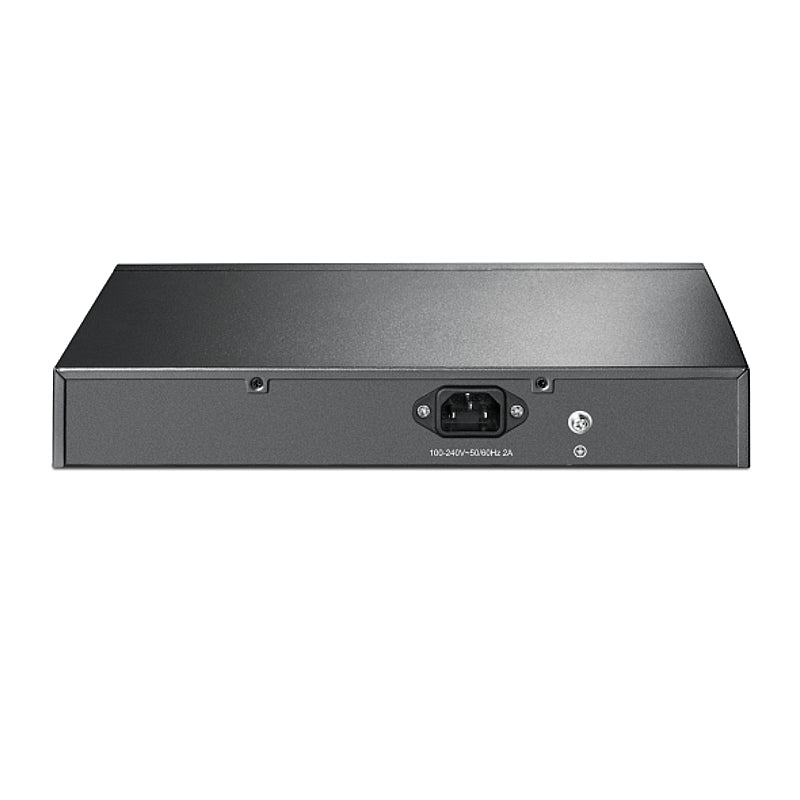

• Power Supply: 100-240VAC, 50/60Hz
• Packet Forwarding Rate: 11.904 Mpps
• PoE Ports (RJ45): Standard: 802.3af/at compliant; PoE+ Ports: 8 Ports; Power Supply: 153W
• MAC Address Table: 4K
• Buffer Size: 1.5 Mbits
• Jumbo Frame: 16 KB
• Switching Capacity: 16 Gbps
• Dimensions (W x D x H): 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)
• Mounting: Desktop/Rack Mountable
• Max. Power Consumption: 8.57 W (220V/50Hz, no PD connected); 173.65 W (110V/60Hz, with 153W PD connected)
• Max Heat Dissipation: 29.22 BTU/h (no PD connected); 592.15 BTU/h (with 153W PD connected)
• Advanced Features: Compatible With IEEE 802.3af/at Compliant PDs; Priority Function; MAC Address Auto-Learning And Auto-Aging; IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
• Transmission Method: Store-And-Forward
• Certifications: FCC, CE, RoHS
• Environment - Operating Temperature: 0℃~50℃ (32℉~122℉)
• Environment - Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Environment - Operating Humidity: 10%~90% non-condensing
• Environment - Storage Humidity: 5%~90% non-condensing

Scope of Delivery:

• TL-SG1008MP
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet

For More Information, Visit Link Below:

TP-Link 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
