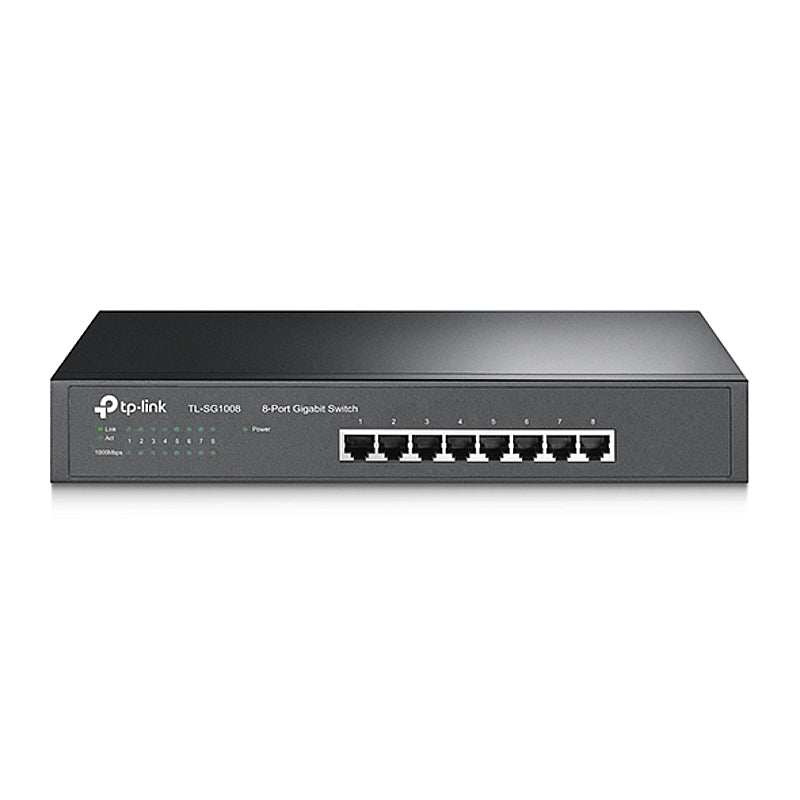

TP-Link 8-Port Gigabit Desktop/Rackmount Switch | TL-SG1008

TP-Link 8-Port Gigabit Desktop/Rackmount Switch | TL-SG1008.

The 8-Port Gigabit Desktop/Rackmount Switch provides high-speed Gigabit Ethernet connectivity with 8 auto-negotiation RJ45 ports, fanless silent operation, QoS support, flow control, jumbo frames, and rack-mount capability for efficient small to medium network expansion.

Features & Benefits:

• 8 10/100/1000Mbps RJ45 ports

• Supports MAC address auto-learning and auto-aging and auto MDI/MDIX

• Standard 13-inch rackmount steel case

• 802.1p/DSCP QoS1 enable smooth latency-sensitive traffic

What This Product Does.

The TL-SG1008 8-Port Gigabit desktop/rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1008 can save the power consumption, making it an eco-friendly solution for your business network.

TP-LINK Green Technology.

This new generation The 8-Port Gigabit Desktop/Rackmount Switch TL-SG1008 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance.

The TL-SG1008 features non-blocking wire-speed architecture with a 16Gbps switching capacity for maximum data throughput. An 4K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.

Ease to Use.

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis. TL-SG1008 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

Specifications:

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, 802.1p
• Interface: 8 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m); 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100 m)
• Fan Quantity: Fanless
• Power Supply: 100-240VAC, 50/60Hz
• Max. Power Consumption: Maximum: 4.08 W (220V/50Hz); 4.3 W (220V/50Hz)
• Dimensions (W x D x H): 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)
• Mounting: Rack Mountable
• Max Heat Dissipation: 14.67 BTU/h
• Switching Capacity: 16 Gbps
• Packet Forwarding Rate: 11.9 Mpps
• MAC Address Table: 4K
• Jumbo Frame: 16 KB
• Transmission Method: Store-and-Forward
• Advanced Features: MAC address auto-learning and auto-aging; IEEE802.3x Flow control; 802.1p/DSCP QoS
• Certifications: FCC, CE, RoHS
• Environment - Operating Temperature: 0℃~40℃ (32℉~104℉)
• Environment - Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Environment - Operating Humidity: 10%~90% non-condensing
• Environment - Storage Humidity: 5%~90% non-condensing

Scope of Delivery:

• 8-Port Gigabit Desktop Switch
• Power Cord
• Installation Guide
• Rackmount kit
• Rubber Feet
