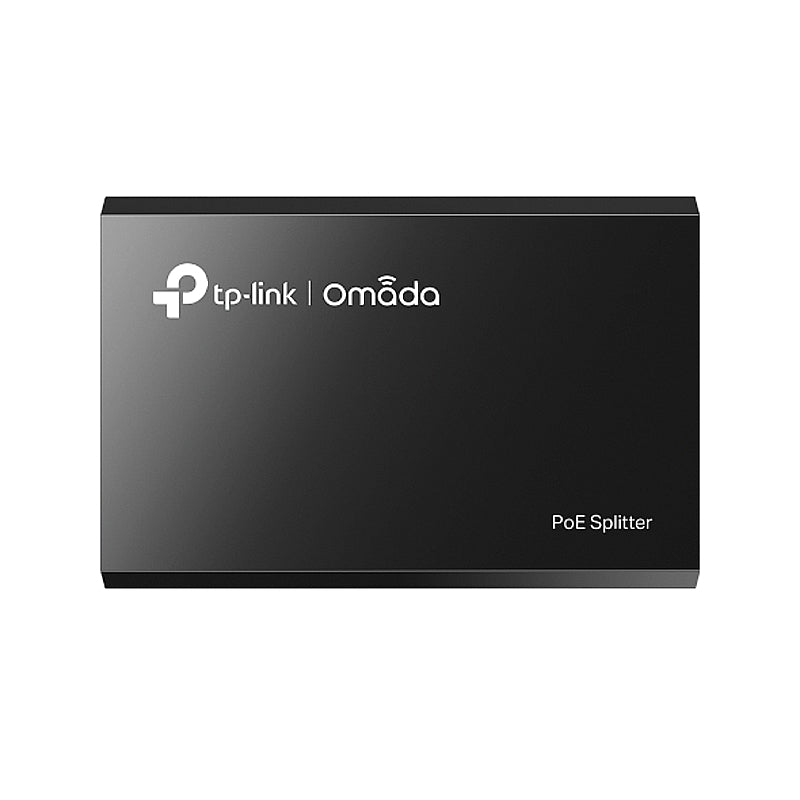

TP-Link Omada PoE Splitter | TL-POE10R.

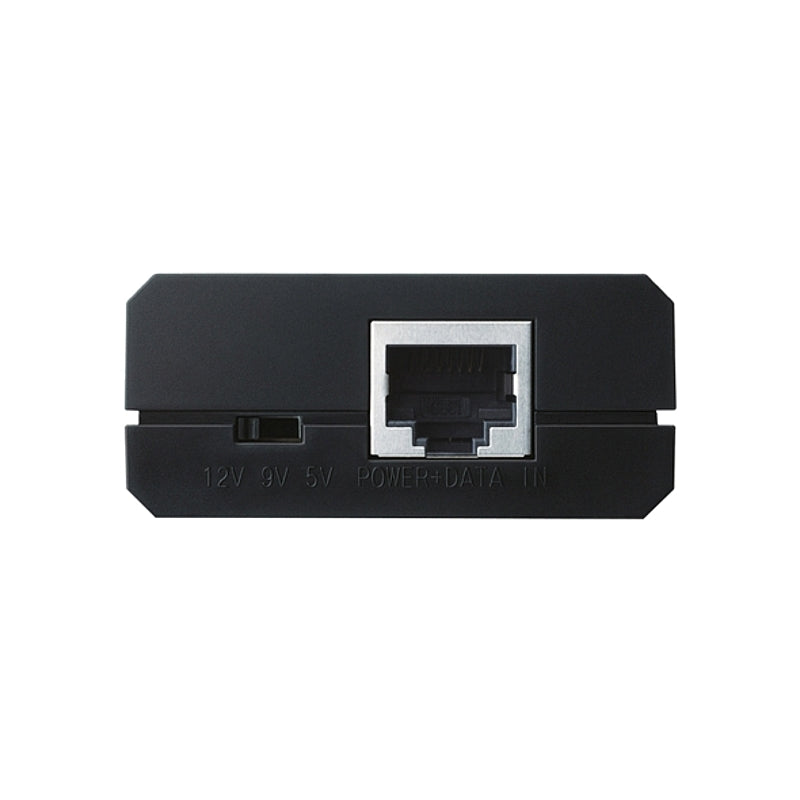

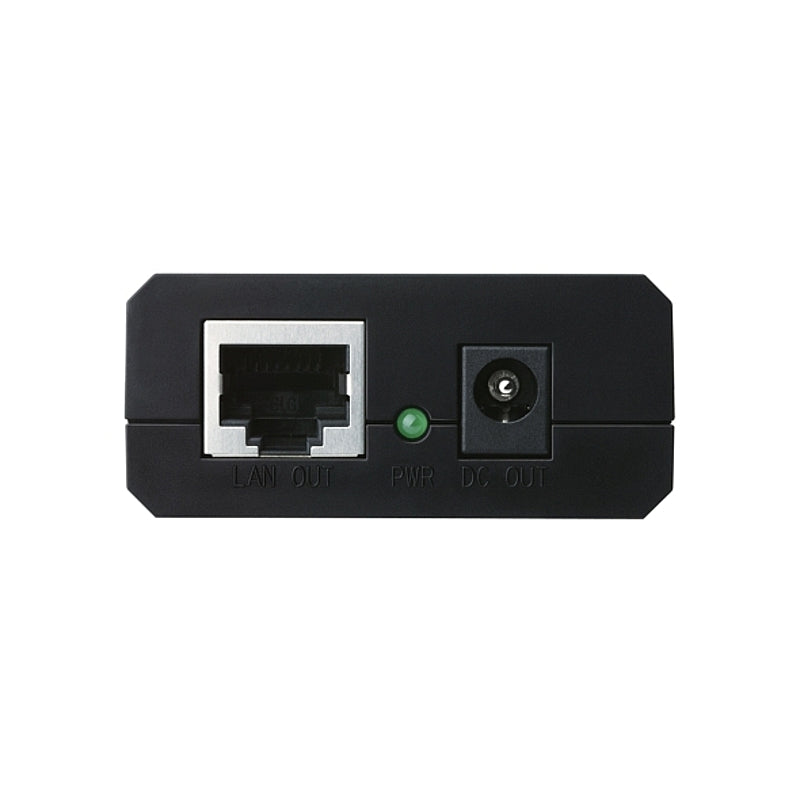

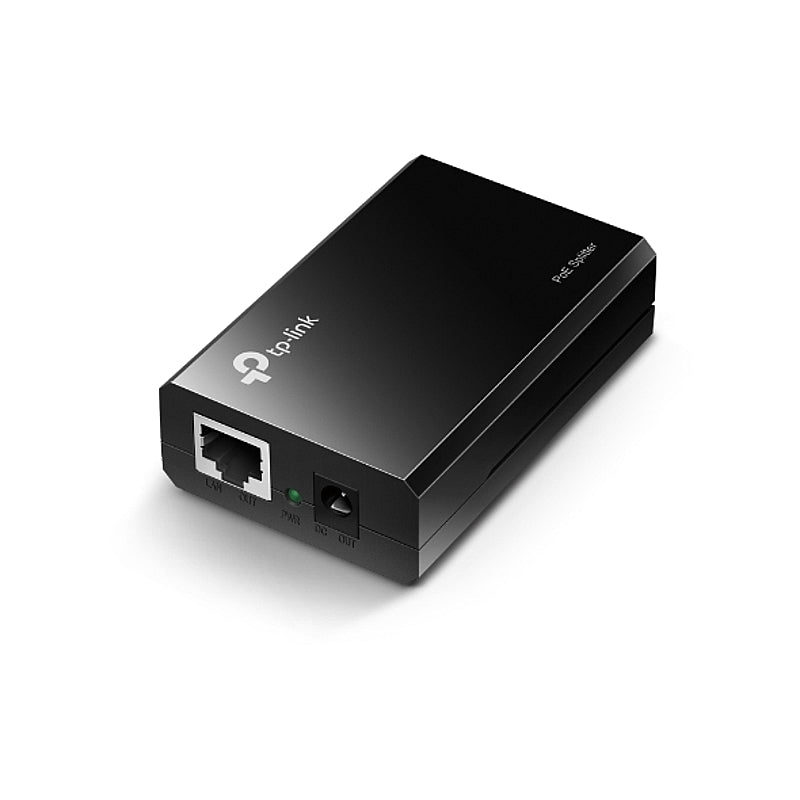

The TL-POE10R Gigabit PoE Splitter converts 802.3af PoE input to selectable 12V/9V/5V DC output with Gigabit data, delivering power up to 100 meters over a single cable for non-PoE devices like IP cameras, VoIP phones, or wireless APs from PoE switches or injectors.
Features & Benefits:
- IEEE 802.3af compliant
- Output: 12VDC 1A, 9VDC 1A, 5VDC 2A selectable
- Gigabit speed support
- Plug-and-Play, requires no configuration
What This Product Does:
The PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK's T1600G-52PS, TL-SG1008PE or TL-POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
Specifications:
-
Interface: 2 10/100/1000Mbps RJ45 Port; AUTO Negotiation/AUTO MDI/MDIX; 1 POWER OUTPUT PORT (5.5 mm round barrel)
-
Network Media: 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m); EIA/TIA-568 100Ω STP (Max 100 m); 100BASE-TX: UTP category 5, 5e cable (Max 100 m); EIA/TIA-568 100Ω STP (Max 100 m); 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
-
Power Supply: 12VDC 1A, 9VDC 1A, 5VDC 2A selectable
-
Basic Function: Compatible With IEEE 802.3af Compliant PSEs; Delivers Power Up To 100 Meters; Optional 12VDC, 9VDC or 5VDC Power Output; Compatible with IEEE 802.3af compliant power sources (PSE); Delivers power up to 100 meters; Selectable 12VDC, 9VDC or 5VDC power output
-
LED Indicator: PWR
-
Dimensions (W x D x H): 3.2 × 2.1 × 0.9 in. (81 × 54 × 24 mm)
-
Certifications: FCC, RoHS
-
Environment - Operating Temperature: 0℃~40℃ (32℉~104℉)
-
Environment - Storage Temperature: -40℃~70℃ (-40℉~158℉)
-
Environment - Operating Humidity: 10%~90% non-condensing
-
Environment - Storage Humidity: 5%~90% non-condensing
Scope of Delivery:
- PoE Splitter TL-POE10R
- Power Cord
- RJ45 Cable
- Installation Guide
For More Information, Visit Link Below:
TP-Link Omada PoE Splitter
Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
