Axminster Workshop Cyclone Interceptor (AW118CI ) | 034105844

Axminster Workshop Cyclone Interceptor (AW118CI) | 034105844

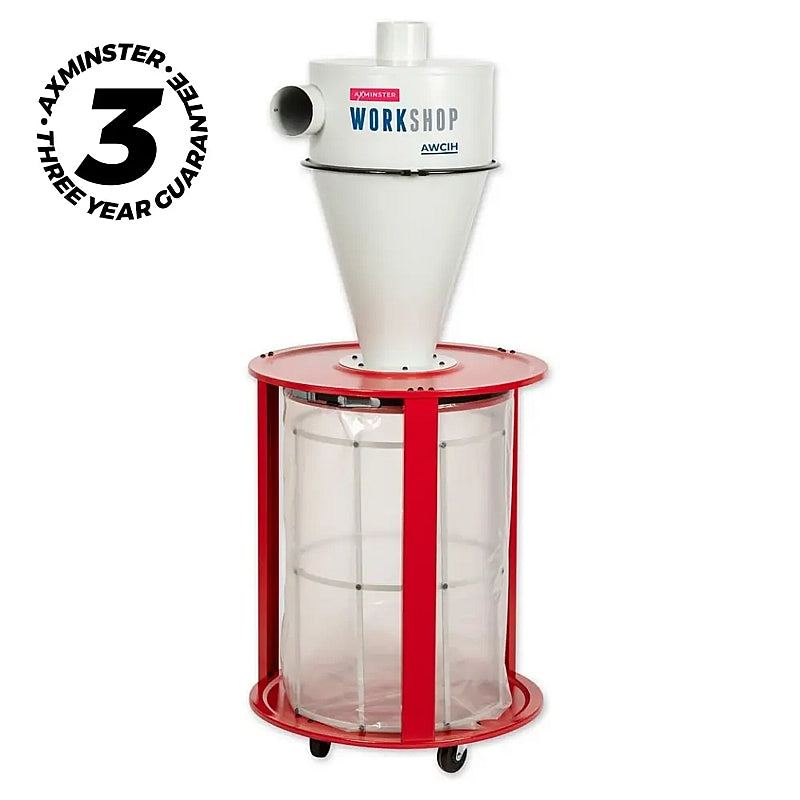

The Axminster Workshop AW118CI is a stand-alone, unpowered cyclone dust collector and interceptor designed for use with a standard High Volume Low Pressure chip extractor. Using the cyclone body and waste bin from the Craft AC118CE Cyclone Dust Extractor, this unit provides efficient dust and chip separation before the airflow reaches the extractor.

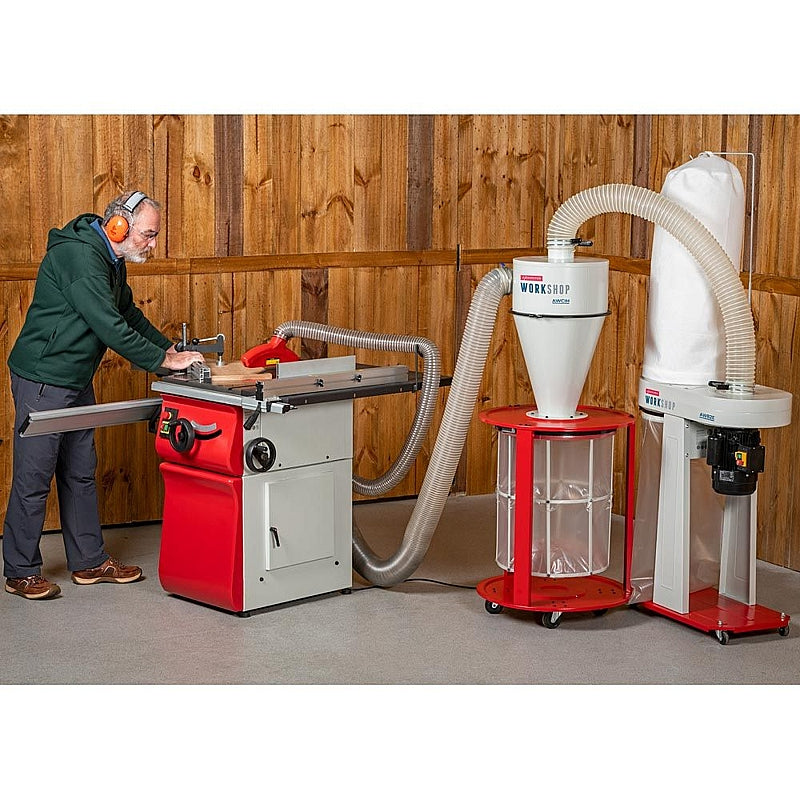

Furthermore, the AW118CI helps create an effective wood dust and chip extraction system capable of handling even fine dust generated by drum sanders and belt sanders. It can either upgrade an existing workshop chip extraction setup with a standard bag filter or operate alongside sanding machines to intercept fine dust particles more effectively.

The interceptor features a generous 118 litre waste container, reducing the need for frequent emptying during operation. In addition, integrated castor wheels provide easy mobility around the workshop, allowing flexible positioning wherever extraction is required.

Fitted with 100mm inlet and outlet connections, the AW118CI suits many common woodworking machines. The manufacturer recommends using a High Volume Low Pressure chip extractor with at least a 1.5hp motor, such as the AW153E. Please note that this unit is not suitable for use with High Pressure Low Volume vacuum-type extractors.

NB: This cyclone requires dust bags measuring 785mm x 940mm.

Features & Benefits:

• Unpowered Cyclone Interceptor: Works with a compatible chip extractor to improve dust and chip separation.
• Efficient Dust Separation: Removes wood waste and fine dust from the airflow before reaching the extractor.
• 118 Litre Waste Container: Offers generous waste capacity for longer working periods.
• Easy Workshop Mobility: Castor wheels allow smooth movement and flexible positioning.
• Versatile Machine Compatibility: Suitable for use with machines ranging from thicknessers to sanders.
• 100mm Inlet and Outlet Ports: Fits many common woodworking extraction systems.
• Ideal Workshop Upgrade: Enhances existing chip extraction systems using standard bag filters.

Specifications:

• Code: 034105844
• Model: AW118CI
• EAN Barcode: 5052511115501
• Container Volume: 118 litre
• Hose Diameter: 100 mm
• Overall Dimensions (L x W x H): 1,450 mm x 726 mm x 730 mm
• Nett Weight: 21 kg
• Rating: Regular Use
• Recommended Extractor Type: High Volume Low Pressure chip extractor
• Recommended Motor Size: Minimum 1.5 hp
• Dust Bag Size Required: 785 mm x 940 mm

Scope of Delivery:

• 1 x Axminster Workshop Cyclone Interceptor (AW118CI)
• 1 x 118 Litre Waste Bin
• Integrated Castor Wheels

Axminster 3 Year Guarantee:

The Axminster 3 Year Guarantee is designed to provide added peace of mind and reflects Axminster’s confidence in the quality and reliability of its machinery.

Covered products are intended for businesses with occasional periods of continuous work and must be maintained regularly and serviced annually. Please note that the guarantee becomes void if the machine is used for industrial applications or as part of a production line.

You do not need to register your machine to benefit from the guarantee. Simply retain your proof of purchase or receipt.

Additionally, the guarantee includes free parts and labour for a period of three years, subject to the terms and conditions outlined below.

Guarantee Coverage:

• The product must be purchased for the correct intended purpose in accordance with Axminster classification guidelines.
• The product must be operated correctly and used as intended.
• The product must be maintained and serviced according to the manufacturer’s instructions. Proof of servicing may be required.
• All qualifying repairs include free parts and labour during the guarantee period.

Guarantee Exclusions:

• Products used outside the recommended classification guidelines, such as workshop products used for business production purposes.
• Consumable items including original blades, knives, drive belts and abrasives.
• Issues resulting from normal wear and tear, misuse or neglect.
• Damage caused by blunt or incorrect tooling.
• Products that have been modified.

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
