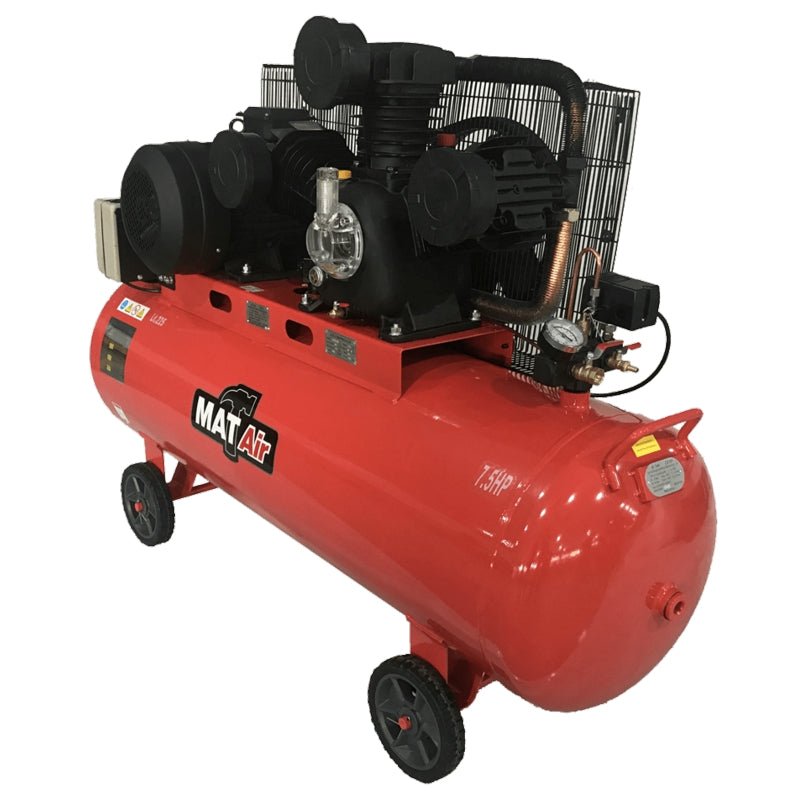

MATair 225L Air Compressor, 5.5kW/7.5HP, 380V/3P | AIR2180

MATair 225L Air Compressor, 5.5kW/7.5HP, 380V/3P | AIR2180.

The MATair 225L Air Compressor is engineered for professional use, delivering reliable single-stage air compression. It features a three-cylinder W piston configuration, ensuring efficient and steady air output. The compressor incorporates splash lubrication, forced ventilation, cast iron cylinders, steel valve plates, and steel valves for durability and long-term performance. It includes overload protection with manual reset, an ON/OFF pressure switch, a pressure reducer with one or two cocks, and a condensate drain cock for convenient maintenance. This model offers a free air delivery of 508 L/min (18 CFM) at a maximum pressure of 8 bar (115 PSI), operating at 950 RPM, making it suitable for demanding professional applications.

Features & Benefits:

• Professional Use: Ideal for craftsmen who require a reliable, high-capacity air supply.
• Efficient Single-Stage Design: Three-cylinder W piston arrangement ensures consistent air delivery.
• Durable Construction: Cast iron cylinders, steel valve plates, and steel valves provide long-lasting performance.
• Maintenance-Friendly: Splash lubrication, forced ventilation, and condensate drain cock simplify upkeep.
• Safety Features: Overload protection with manual reset and ON/OFF pressure switch allow secure operation.
• Pressure Management: Includes pressure reducer with one or two cocks for controlled air flow.

Specifications:

• Code: AIR2180
• Barcode: 6921696507861
• Capacity: 225 L
• Voltage / Phase: 380 V / 3P
• Horse Power: 7.5 HP
• Power: 5.5 kW
• Displacement: 725 L/min (25 CFM)
• Free Air Delivery (FAD): 508 L/min (18 CFM)
• Maximum Pressure: 8 bar (115 PSI)
• Speed: 950 RPM
• Cylinder Configuration: 3W
• Weight: 204 kg

Scope of Delivery:

• 1 x MATair 225L Air Compressor, 5.5kW/7.5HP, 380V/3P | AIR2180

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
