Kobe Red Line 1/4" Square Drive Mini Speed Air Ratchet, 27Nm (R7722) | KBE2704010K

Kobe Red Line 1/4 in (6.35 mm) Square Drive Mini Speed Air Ratchet, 27Nm | R7722 | KBE2704010K.

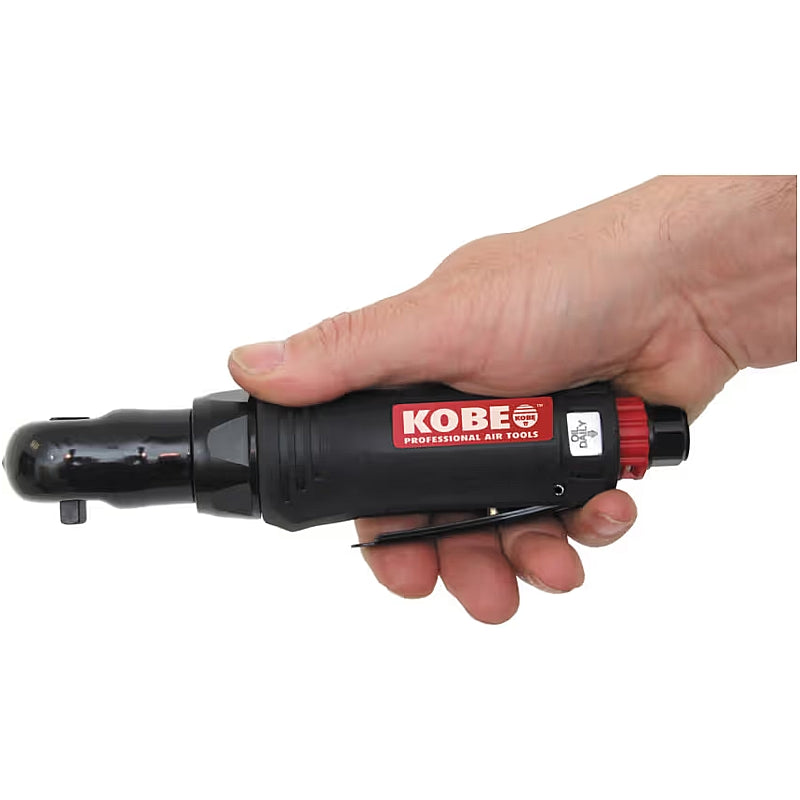

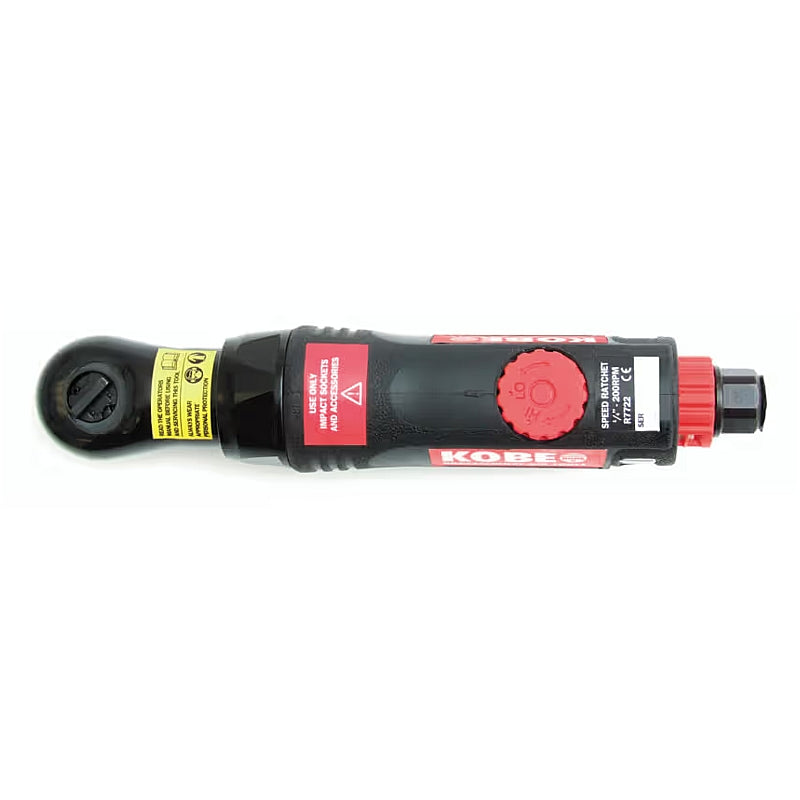

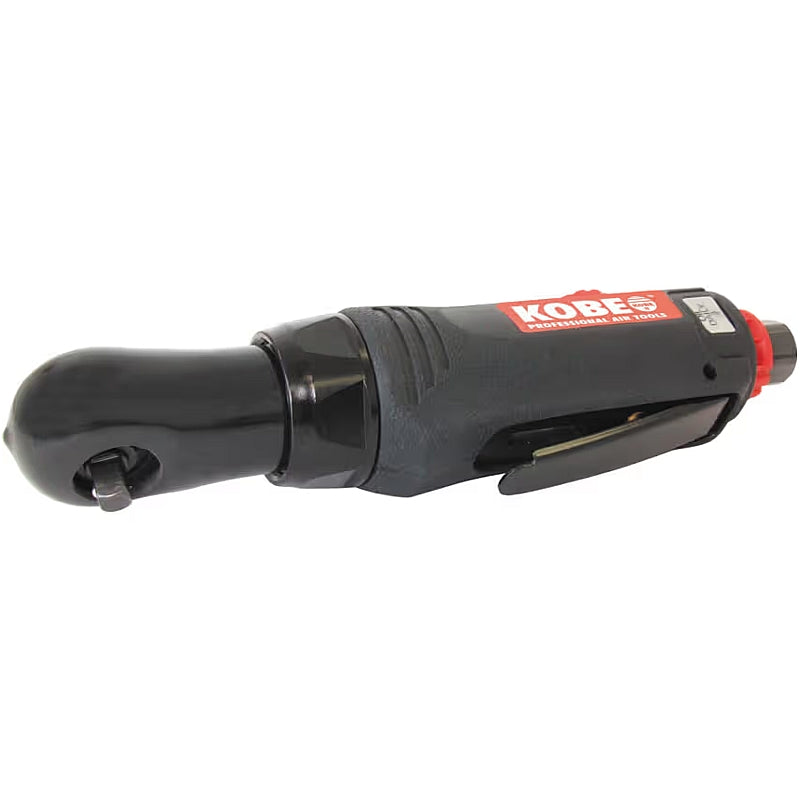

This Kobe Red Line Mini Speed Air Ratchet is designed for efficient removal and installation of threaded fasteners in demanding workshop environments. It features a reversible hardened steel 1/4 in square drive and a compact short-body design, allowing access into restricted spaces. Furthermore, the planetary gear system enhances durability while ensuring smoother operation during use. The low-profile throttle provides precise speed control, while the rotating air inlet helps prevent air hose tangling for improved handling and flexibility. As a result, this air ratchet delivers reliable performance, particularly in confined automotive and mechanical applications.

Features & Benefits:

• Compact short-body design: Allows access into tight and hard-to-reach areas.
• Reversible hardened steel drive: Enables efficient fastening and removal of threaded fasteners.
• Planetary gear system: Improves durability and ensures smoother running performance.

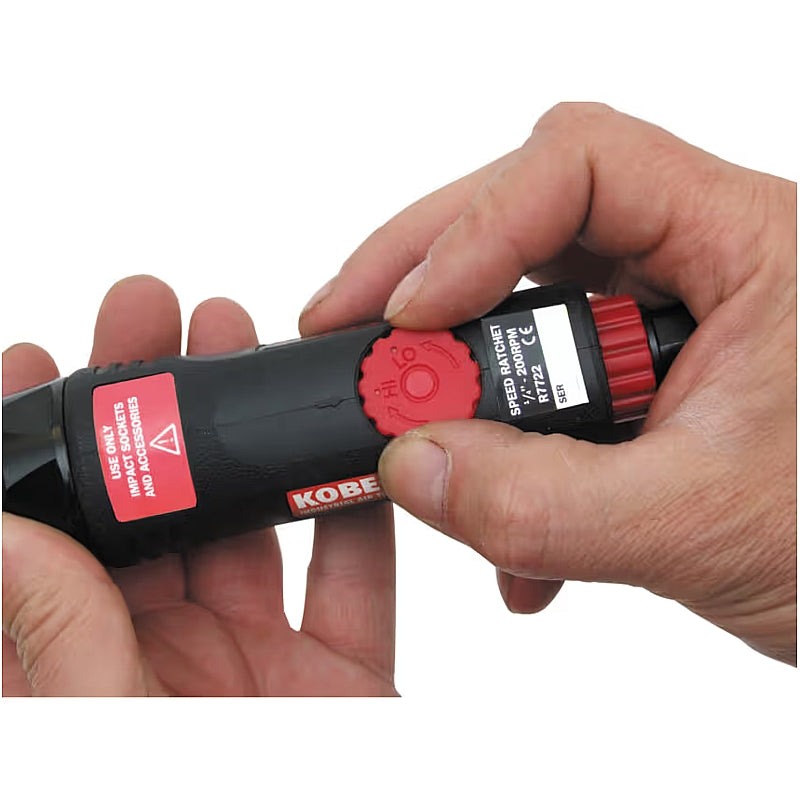

• Low-profile throttle: Provides precise speed control for accurate operation.

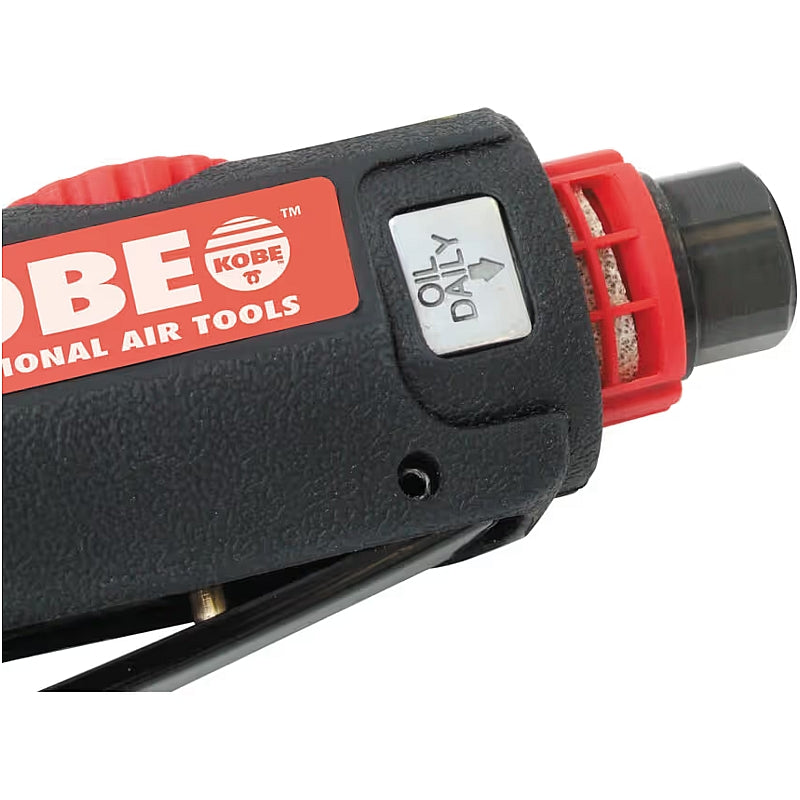

• Rotating air inlet: Helps prevent hose tangling during use.
• Ergonomic composite body: Improves grip comfort and reduces hand chill during extended use.

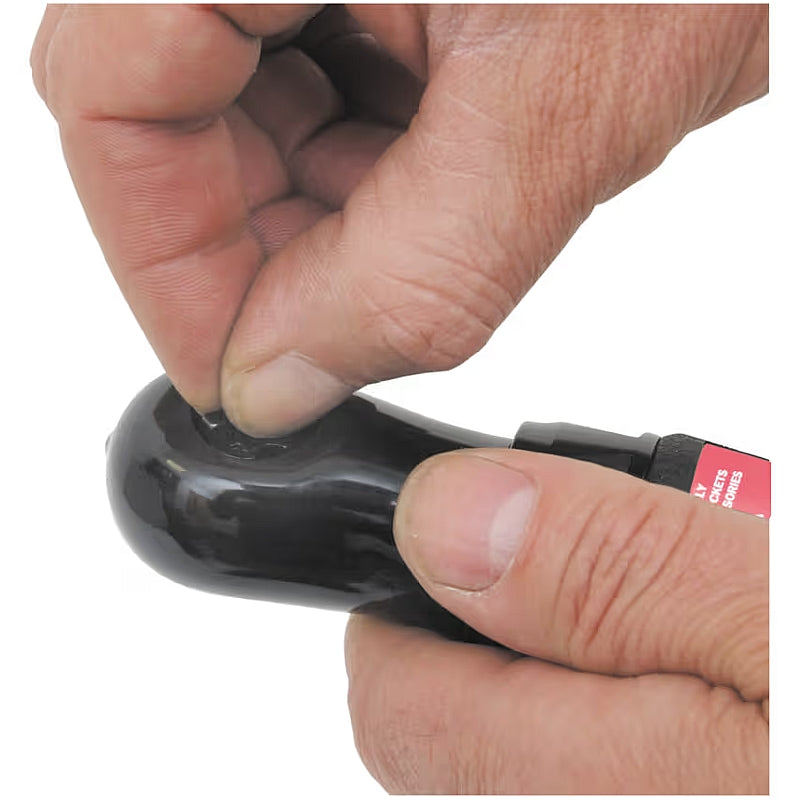

• Protective rubber head cover: Helps protect both tool and work surface from damage.

Standards:

• EN ISO 12100:2010 / Safety of machinery: General principles for design - Risk assessment and risk reduction (ISO 12100:2010)
• EN ISO 11148-4:2012 / Hand-held non-electric power tools: Safety requirements - Assembly power tools for threaded fasteners (ISO 11148-6:2010)
• EN ISO 28927-10:2011 / Hand-held portable power tools: Test methods for evaluation of vibration emission - Wrenches, nut runners and screwdrivers (ISO 28927-2:2009)
• EN ISO 15744:2008 / Hand-held non-electric power tools: Noise measurement code - Engineering method (ISO 15744:2002)

Specifications:

• Code: KBE2704010K
• Barcode: 5036140075238
• Air Inlet Size: 1/4 in NPT (6.35 mm)
• Air Pressure: 90 psi (6.2 bar)
• Drive Size: 1/4 in (6.35 mm)
• Maximum Torque: 27 Nm
• Working Torque Range: 7–27 Nm
• No Load Speed: 200 rpm
• Air Consumption: 1.88 L/s
• Compatible Hose Inner Diameter: 10 mm
• Overall Length: 200 mm
• Weight: 0.65 kg
• Sound Pressure Level: 84 dBA
• Sound Power Level: 88 dBA
• Vibration Level: 1.8 m/s² (K: 1.08 m/s²)
• Power Source: Air
• Product Type: Air Ratchet Wrench

Scope of Delivery:

• 1 x Kobe Red Line 1/4 in Square Drive Mini Speed Air Ratchet (R7722)

View Datasheet

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
