Optimum Metal Bandsaw 230V | S100G

Name: Optimum Metal Bandsaw 230V | S100G
Brand: Optimum
SKU: UPP-S100G
Price: 17239.0 ZAR
Availability: OutOfStock

R 17,239.00 ZAR

Sale Sold out

VAT included.

Product variants

SKU:UPP-S100G

Quantity

Categories: Bandsaws

View Product details

Optimum Metal Bandsaw 230V | S100G

R 17,239.00 ZAR

VAT included.

Product Description
Additional information

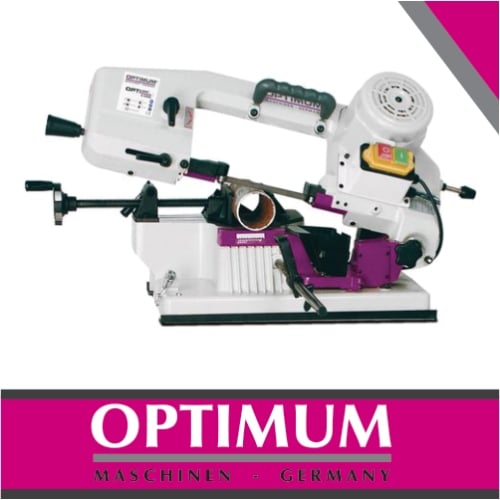

The metal cutting OPTIsaw S 100G

Light and handy. Ideal for universal use on construction sites, assembly,
in the customer service car, in the workshop, in the hobby room and in agriculture.

Technical Data

Dimensions and weights
Max. length (product) ca.	950mm	Max. height (product) ca.	820mm
Max. width/depth (product) ca.	660mm	Height (product) approx.	680mm
Length (product) approx.	850mm	Net weight approx.	23kg
Width/depth (product) approx.	300mm

Electric Data
Drive motor output	0,37kW	Current type	AC
Supply voltage	230V	Mains frequency	50Hz
Phase(s)	1Ph

Machine data
Saw band speed(s)	45m/min	Saw band thickness	0.65mm
Saw band length	1470mm	Cutting angle	0 – 45°
Saw band width	13mm

Cutting ranges
Clamping range 0° round (full material)	100mm	Clamping range 45° round (full material)	65mm
Clamping range 0° quadratic (full material)	100mm	Clamping range 45° quadratic (full material)	60mm
Clamping range 0° rectangle horizontal (full material)	100 x 150mm	Clamping range 45° rectangle horizontal (full material)	60 x 100mm

Description

Quick-action vice for fast workpiece clamping
Saw bar can be swiveled from 0 ° to 45 ° to allow angled saw cuts
Easy to read scale for angle adjustment
Micro switch for automatic limit switch
Automatic lowering of the saw bar via three-stage adjustable saw bar lowering pressure
As standard with high-quality bi-metal saw band
Large, handy handle and low weight allows easy transport to the construction site
Adjustable material stop for serial work
Fully equipped machine; The user can work productively immediately after commissioning
transport safety
