Oneida Super Dust Deputy 4/5 Deluxe Cyclone Kit | AXD152045

Oneida Super Dust Deputy 4/5 Deluxe Cyclone Kit | AXD152045.

The Oneida Super Dust Deputy 4/5 Deluxe Cyclone Kit is designed to enhance the performance of 0.5-3HP single-stage dust collectors. By separating over 99% of fine dust and debris from the incoming airstream, it prevents clogged filters, suction loss, and protects your dust collector from large wood chunks or hardware. This system prolongs the lifespan of your filter while keeping your workshop cleaner and safer.

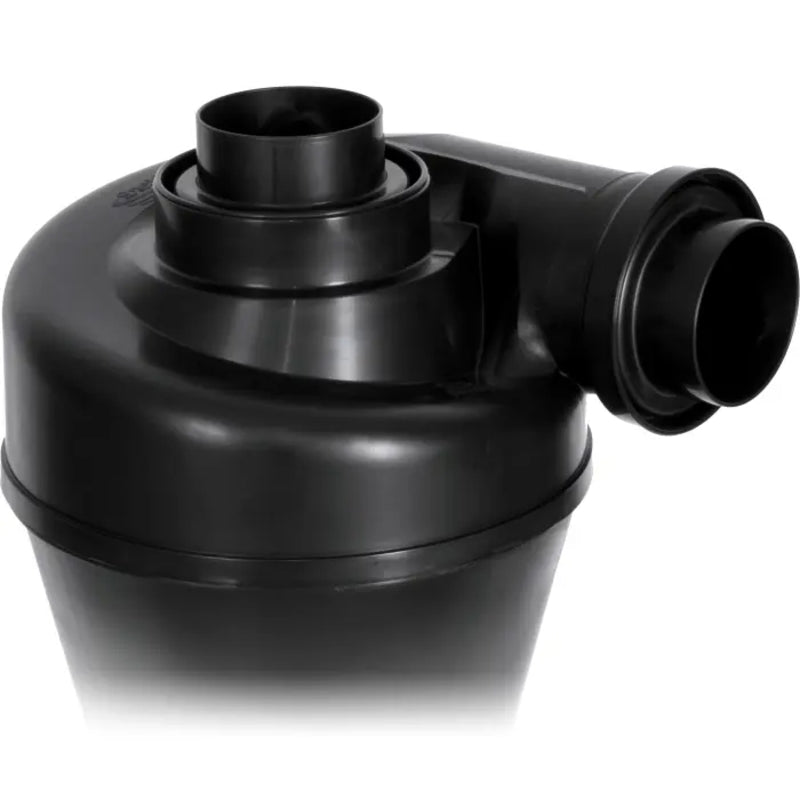

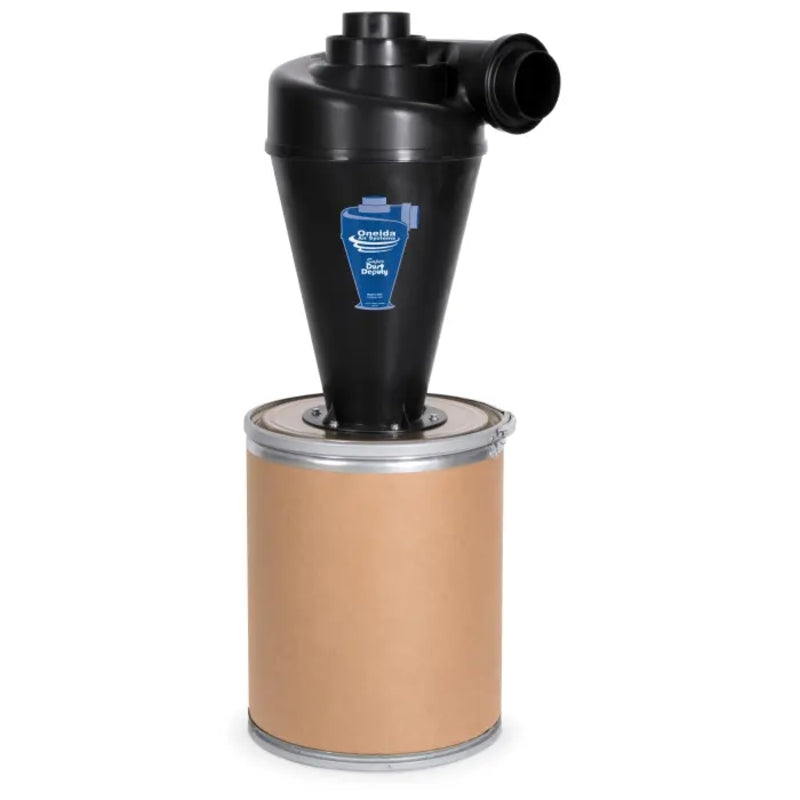

The deluxe kit includes a lightweight, 15-gallon (56.8 litres) fiberboard dust bin with quick-release latch, ensuring easy collection and disposal of dust. The cyclone features an integrated air ramp, neutral-vane inlet, and tapered intake and exhaust ports for simple friction-fit hose connections. Its static dissipative construction safely conveys static electricity to ground, preventing harmful discharges. The kit is compatible with most single-stage dust collectors, including Delta, Grizzly, Harbor Freight, and Jet models.

Features & Benefits:

• High Efficiency Dust Separation: Removes over 99% of fine dust and debris before reaching your dust collector.
• Protects Collector & Filter: Prevents suction loss and filter clogging, extending filter lifespan.
• Deluxe Dust Bin: 15-gallon (56.8 litres) fiberboard drum with quick-release latch for easy dust disposal.
• Plug & Play Connections: Tapered intake and exhaust ports fit 4" or 5" hoses for flexible installation.
• Static Dissipative Construction: Safely conveys static electricity, preventing harmful discharges.

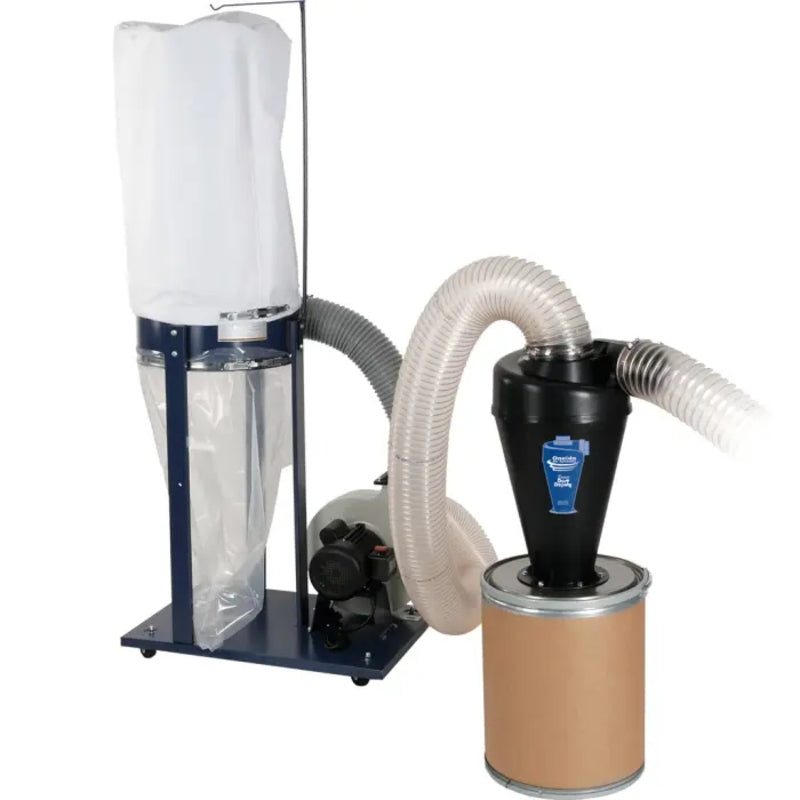

• Compatible Design: Works with most single-stage dust collectors (0.5hp–3hp, minimum 350 CFM airflow).
• Robust Build: Industrial abrasion-resistant HDPE cyclone for durable, long-term performance.

Specifications:

SKU: AXD152045
Cyclonic Separation Efficiency: Removes over 99% of fine wood dusts
Horsepower Rating: 0.5hp – 3hp
Airflow Rating: Minimum 350 CFM (9.9 m³/min)
Waste Capacity: 15 Gallons (56.8 litres)

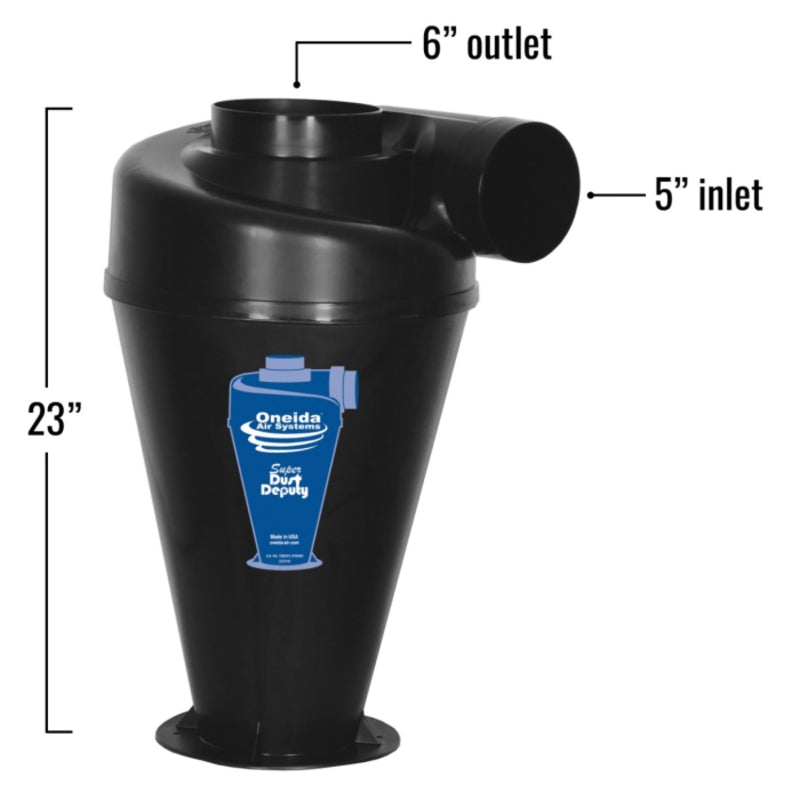

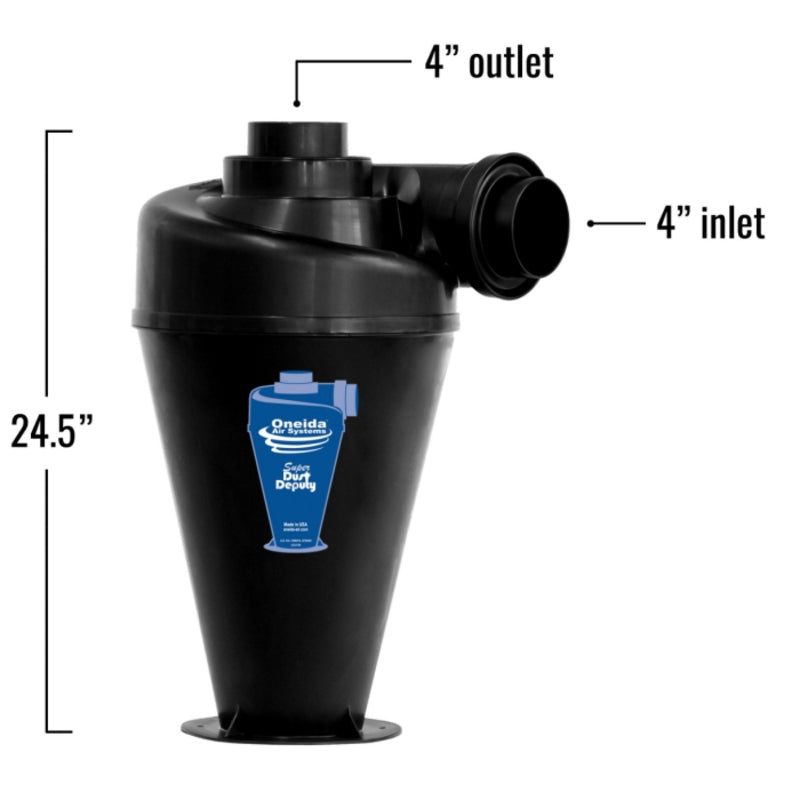

Inlet Size: Without Adapters: 5” O.D., 4-3/4” I.D. (127mm / 121mm), With Adapters: 4" O.D., 3-3/4" I.D. (102mm / 95mm)
Outlet Size: Without Adapters: 6” O.D., 5-3/4” I.D. (152mm / 146mm), With Adapters: 4" O.D., 3-3/4" I.D. (102mm / 95mm)
Discharge Size: 8-3/16" O.D., 6" I.D. (208mm / 152mm)
Primary Build Materials: Static Dissipative Polyethylene, Fiberboard
Static Resistance Rating: Static Dissipative
Color: Black
Width: 16-1/16" (408mm)
Depth: 16-1/2" (419mm)
Height: 43-5/8" (1,108mm)
Height to Center of Inlet: 39-3/16" (996mm)
Actual Weight: 16 kg
Product Compatibility: 1/2hp to 3hp Single-Stage Dust Collectors (Minimum 350 CFM)

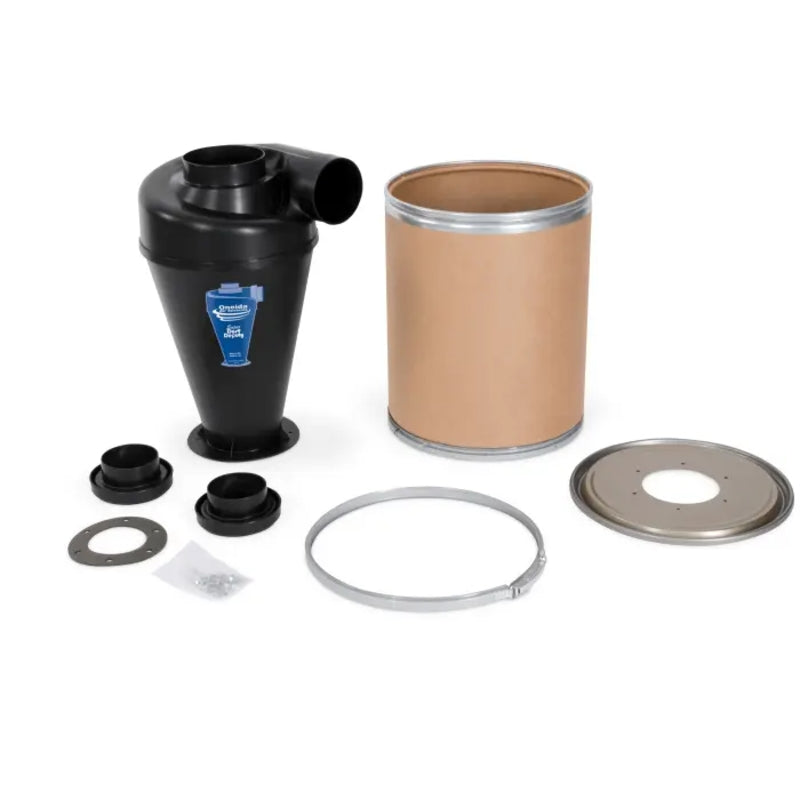

Contents: Cyclone, 2x 4" Adapters, Fiber Drum, Lid Clamp, Gasket, Hardware
Manufacturer: Oneida Air Systems
Warranty Information: 1 Year Limited Warranty

Scope of Delivery:

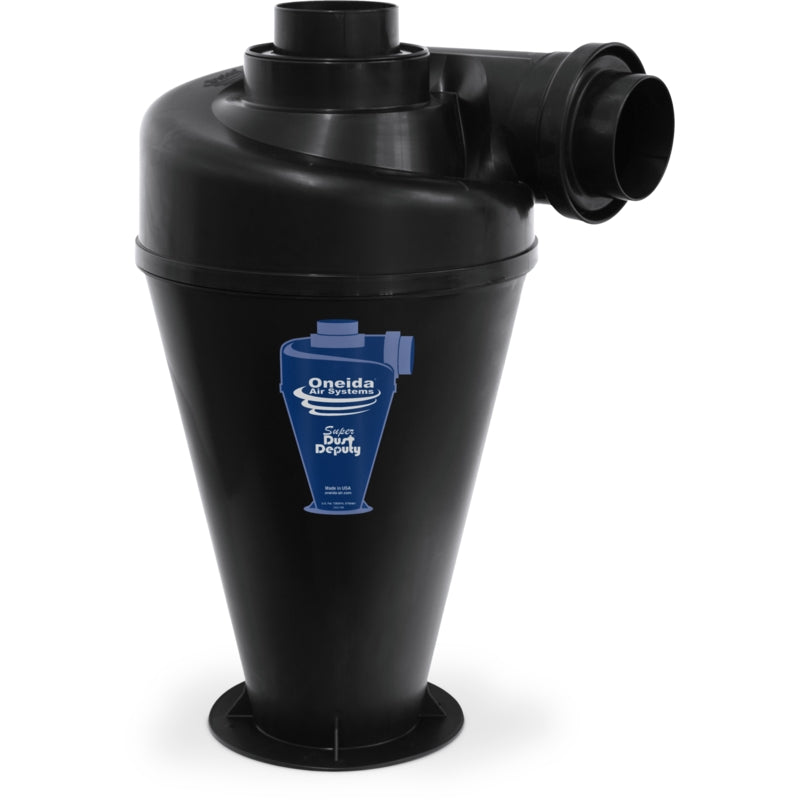

• 1 x Super Dust Deputy 4/5 Cyclone
• 2 x 4" Hose Adapters
• 1 x 15-Gallon Fiber Drum
• 1 x Lid Clamp
• 1 x Gasket
• Hardware for installation

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
