Optimum OPTIdrill DQ 18 Bench Drill, 450W (1-Ph) | DQ18

Optimum OPTIdrill DQ 18 Bench Drill, 450W (1-Ph) | DQ18.

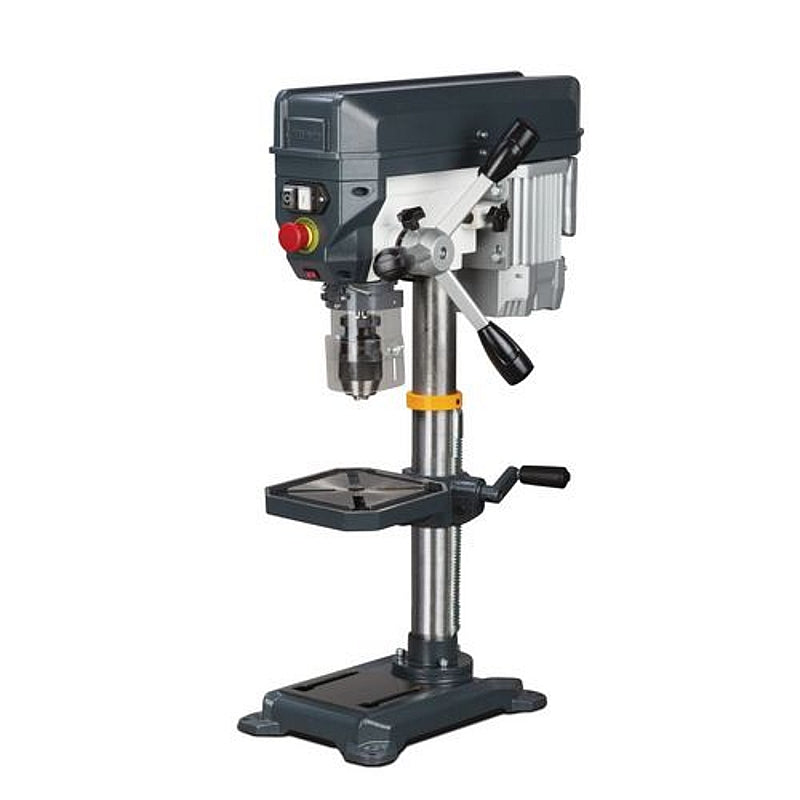

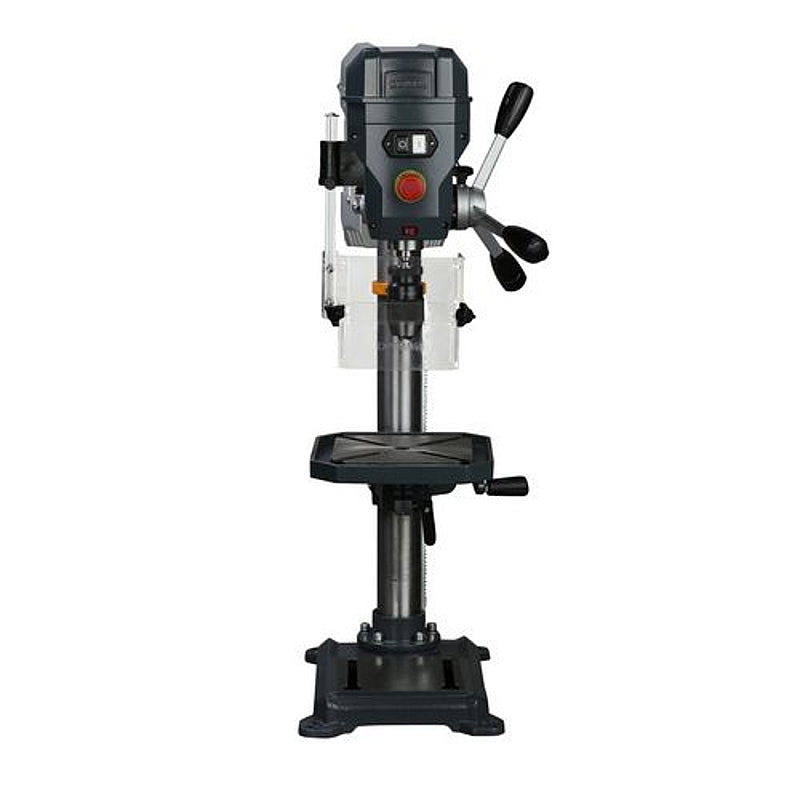

The Optimum OPTIdrill DQ 18 Bench Drill is engineered to provide precise, reliable drilling performance for a wide range of workshop tasks. Its precision drilling spindle, supported by pre-precision ball bearings, delivers smooth operation and a guaranteed concentricity accuracy of less than 0.03 mm when measured in the drilling sleeve. Furthermore, the high-quality quick-action drill chuck enables fast and convenient drill bit changes, helping to improve productivity.

The precisely machined drilling table features diagonally running T-slots and a circumferential cooling water trough, making it suitable for accurate workpiece positioning and efficient drilling operations. In addition, the table rotates through 360° and tilts up to ±45°, allowing greater flexibility when drilling at various angles. The one-piece die-cast aluminium quill lever with soft-grip handles ensures comfortable operation, while the integrated drilling depth scale supports accurate and repeatable drilling depths.

Safety and durability are equally important. Therefore, the machine incorporates 24 V DC safety electrics together with a separate emergency stop switch for enhanced operator protection. A high-quality GATES belt provides dependable power transmission, while the generously sized, heavily ribbed base plate with T-slots offers excellent stability and secure workpiece mounting.

Features & Benefits:

• Precision drilling spindle: Provides highly accurate drilling with a guaranteed concentricity accuracy of less than 0.03 mm when measured in the drilling sleeve.
• Pre-precision ball bearings: Ensure smooth spindle operation and dependable performance.

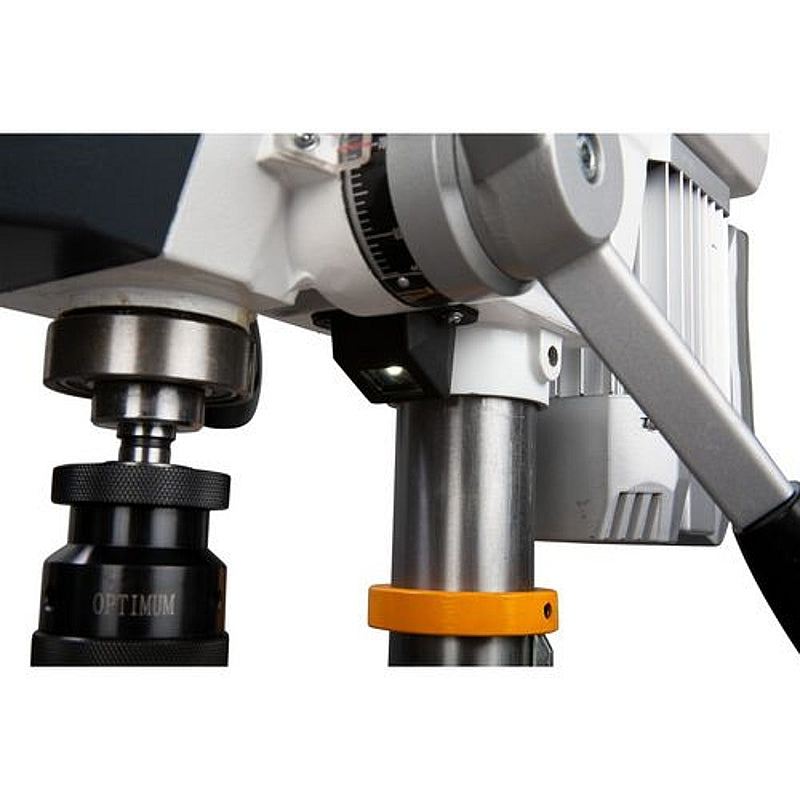

• Quick-action drill chuck: Enables fast and convenient drill bit changes.
• Precision-machined drilling table: Offers a stable working surface for accurate drilling.
• Diagonal T-slots: Allow secure positioning and clamping of workpieces and accessories.
• Circumferential cooling water trough: Helps contain coolant during drilling operations.

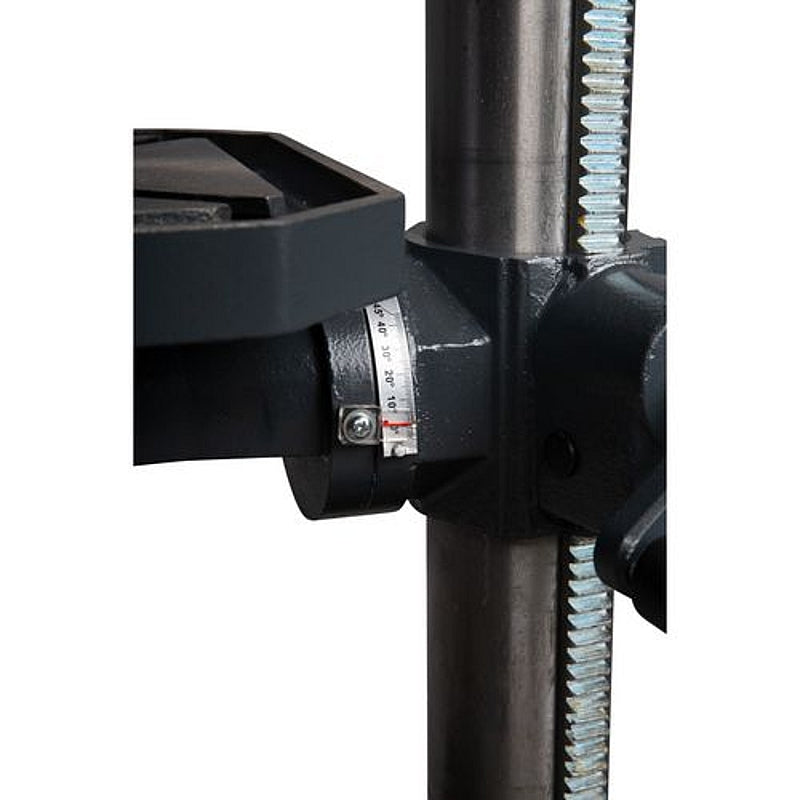

• Adjustable drilling table: Rotates through 360° and tilts up to ±45° for versatile drilling applications.

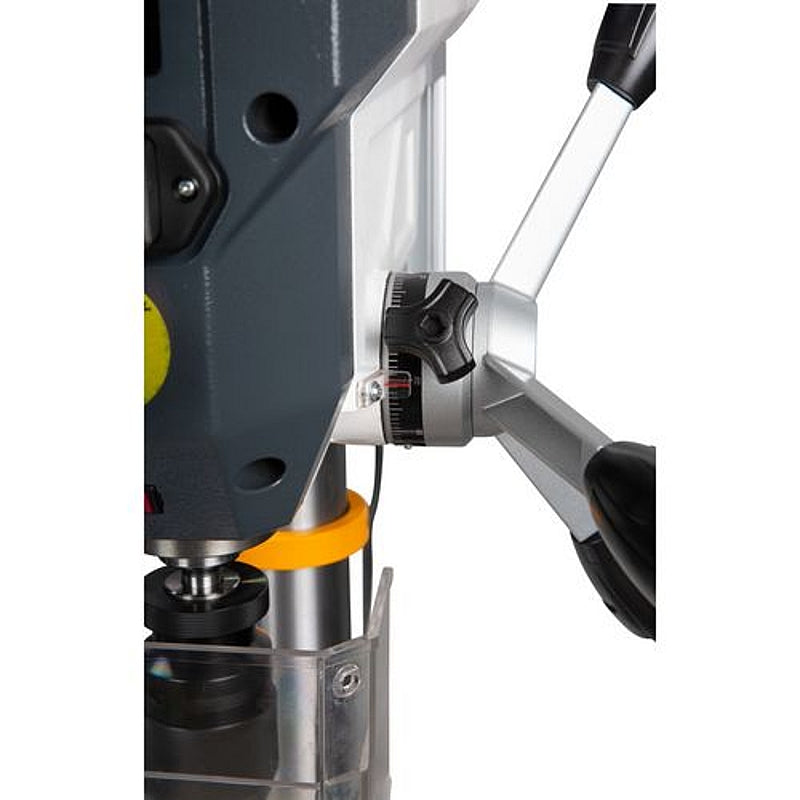

• Drilling depth scale: Enables accurate and repeatable drilling depths.
• One-piece die-cast aluminium quill lever: Features soft-grip handles for comfortable operation and improved control.
• 24 V DC safety electrics: Enhance operational safety.
• Separate emergency stop switch: Allows the machine to be stopped quickly when required.

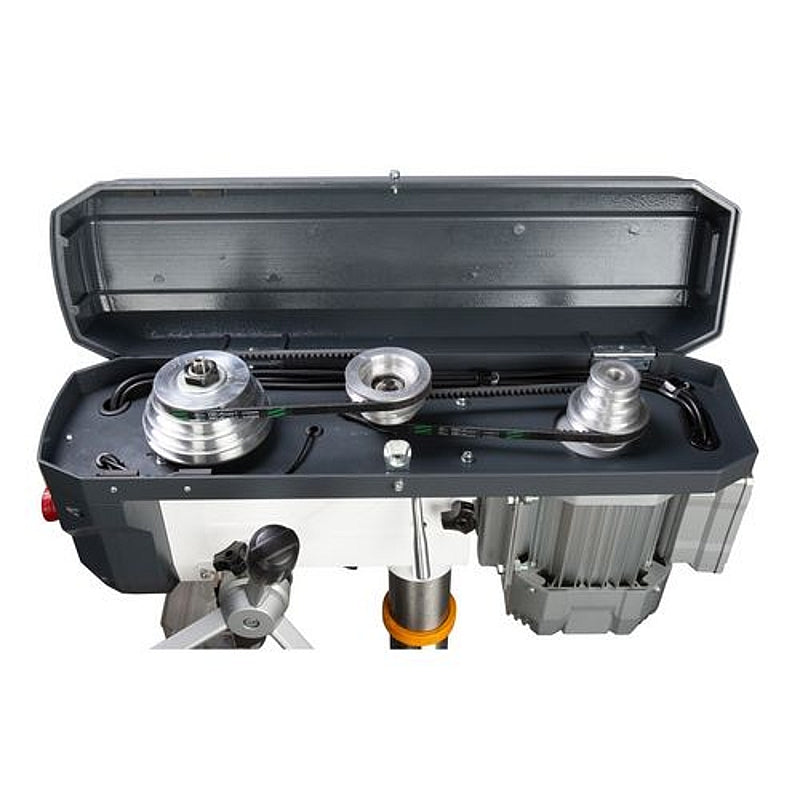

• GATES quality belt: Delivers reliable and efficient power transmission.
• Large ribbed base plate: Provides excellent stability and includes T-slots for secure workpiece mounting.

Specifications:

Code: DQ18
Drive Motor Output: 0.45 kW (450 W)
Supply Voltage: 230 V
Mains Frequency: 50 Hz
Speed Range: 600–2400 min¯¹
Number of Speed Steps: 5
Drilling Performance in Steel (S235JR): 15.9 mm
Continuous Drilling Performance in Steel (S235JR): 14 mm
Quill Stroke: 65 mm
Spindle Chuck: MT2
Reach: 127 mm
Guaranteed Concentricity Accuracy: Less than 0.03 mm (measured in the drilling sleeve)
Column Diameter: 60 mm
Machine Length: Approx. 568 mm
Machine Width/Depth: Approx. 319 mm
Machine Height: Approx. 849 mm
Machine Weight: Approx. 28.5 kg
Drilling Table Workspace: 200 × 200 mm
Drilling Table Rotation: 360°
Drilling Table Tilt: ±45°
Drilling Table Load Capacity: 12 kg
T-Groove Type: Diagonal
T-Groove Size: 14 mm
Number of T-Grooves: 2
Maximum Distance from Spindle to Drilling Table: 319 mm
Maximum Distance from Spindle to Machine Base: 518 mm
Machine Base Work Area: 145 × 143 mm
Packaging Unit: 1 Piece

Scope of Delivery:

• Optimum OPTIdrill DQ 18 Bench Drill
• Quick-action drill chuck (1–16 mm)
• Morse taper MT2/B16
• T-nuts

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
