Optimum OPTIdrill DQ 25 Upright Drill, 750W (1-Ph) | DQ25

Optimum OPTIdrill DQ 25 Upright Drill, 750W (1-Ph) | DQ25.

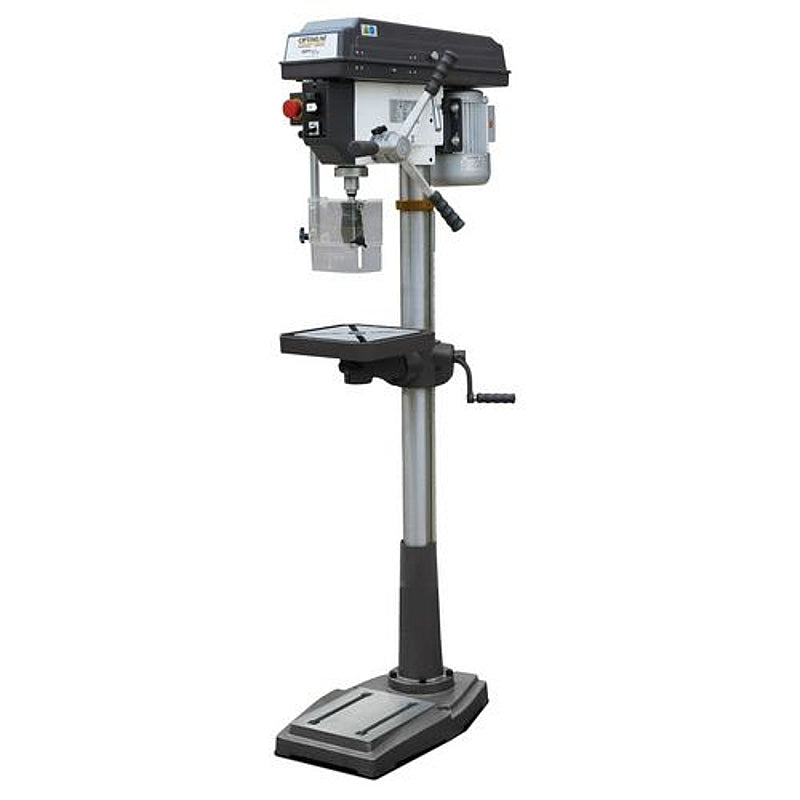

The Optimum OPTIdrill DQ 25 Upright Drill combines precision, durability, and performance for professional drilling applications. Its drill spindle runs on precision ball bearings and delivers a guaranteed concentricity accuracy of better than 0.03 mm when measured in the drill spindle, ensuring consistently accurate drilling results. Furthermore, the quick-action drill chuck supplied as standard allows for fast and convenient drill bit changes.

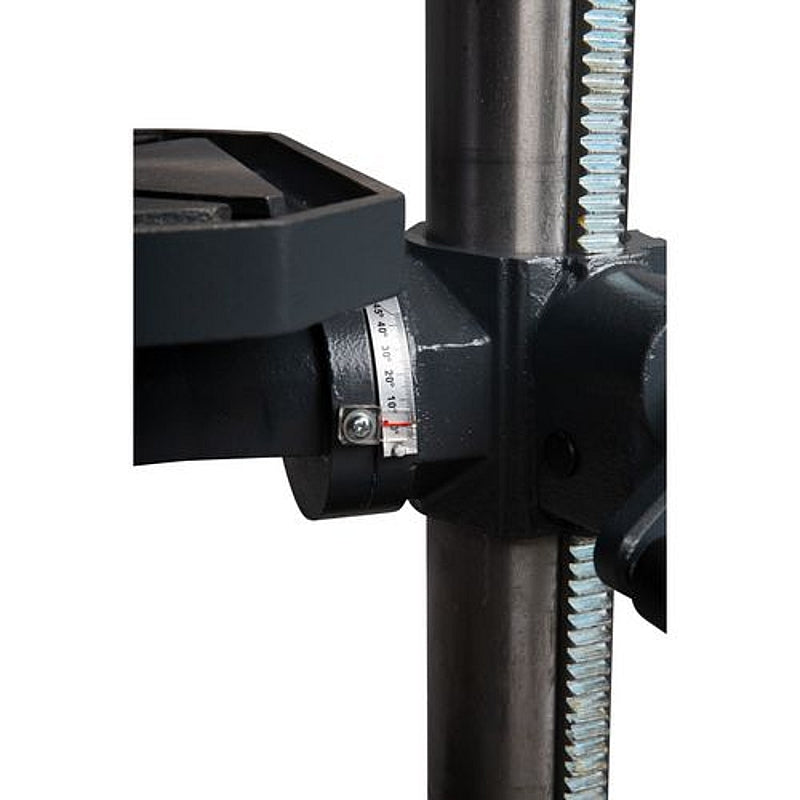

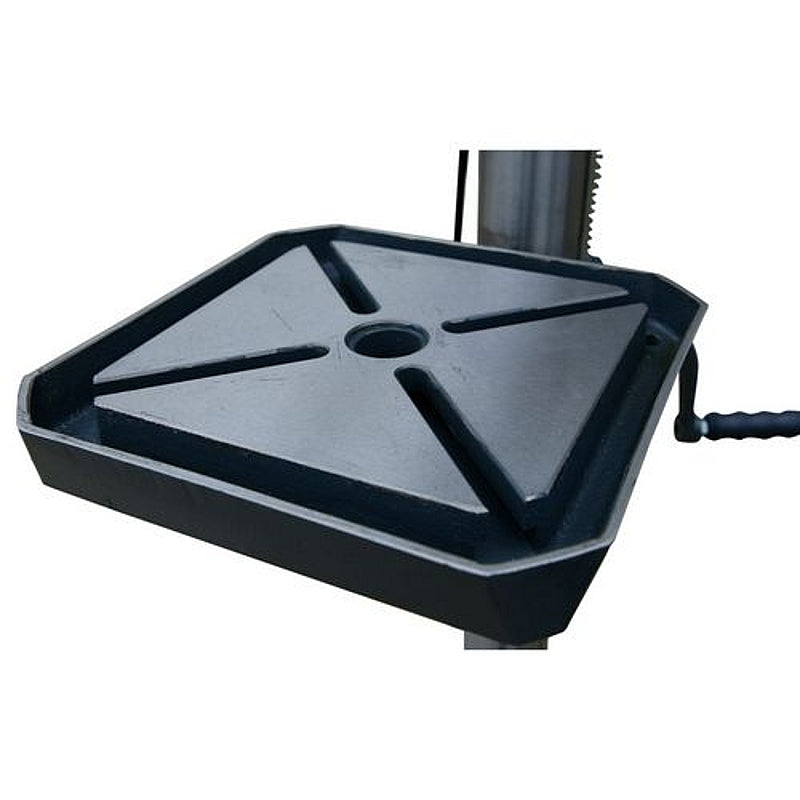

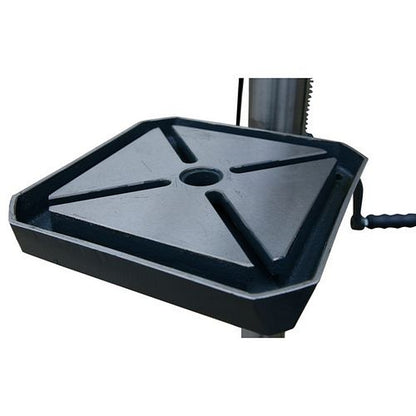

The precisely machined drilling table rotates through 360° and tilts up to ±45°, providing excellent flexibility when positioning workpieces. In addition, the massive base plate features grooves and a heavily ribbed rear side to provide exceptional rigidity and stability during operation. The machine also incorporates a ground multi-tooth driver and aluminium pulleys combined with a high-quality toothed GATES V-belt to achieve efficient and reliable power transmission.

Designed with operator safety and ease of use in mind, the drill includes an easy-to-operate IP54-rated switch, a belt cover fitted with a safety switch, and a separate emergency stop push-button for enhanced protection during operation.

Features & Benefits:

• Precision drill spindle: Delivers highly accurate drilling with guaranteed concentricity accuracy better than 0.03 mm when measured in the drill spindle.
• Precision ball bearings: Provide smooth spindle operation and long-lasting performance.
• Quick-action drill chuck: Enables quick and convenient drill bit changes.
• Precision-machined drilling table: Provides a stable working surface for accurate drilling operations.
• Adjustable drilling table: Rotates through 360° and tilts up to ±45° for increased versatility.
• Massive ribbed base plate: Offers outstanding stability and incorporates grooves for secure workpiece mounting.
• Ground multi-tooth driver: Supports reliable machine operation.
• Aluminium pulleys with GATES toothed V-belt: Ensure efficient and dependable power transmission.
• IP54-rated operating switch: Provides reliable operation in workshop environments.
• Belt cover with safety switch: Enhances operator safety during use.
• Separate emergency stop push-button: Allows the machine to be stopped quickly when necessary.
• 12-speed gearbox: Offers a wide range of spindle speeds for different drilling applications.

Specifications:

Code: DQ25
Drive Motor Output: 0.75 kW (750 W)
Supply Voltage: 400 V
Mains Frequency: 50 Hz
Speed Range: 200–2440 min¯¹
Number of Speed Steps: 12
Drilling Performance in Steel (S235JR): 25 mm
Continuous Drilling Performance in Steel (S235JR): 20 mm
Quill Stroke: 80 mm
Spindle Chuck: MT3
Reach: 181 mm
Guaranteed Concentricity Accuracy: Better than 0.03 mm (measured in the drill spindle)
Column Diameter: 73 mm
Machine Length: Approx. 700 mm
Machine Width/Depth: Approx. 350 mm
Machine Height: Approx. 1,620 mm
Machine Weight: Approx. 71 kg
Drilling Table Workspace: 280 × 280 mm
Drilling Table Rotation: 360°
Drilling Table Tilt: ±45°
Drilling Table Load Capacity: 40 kg
T-Groove Type: Diagonal
T-Groove Size: 14 mm
Number of T-Grooves: 2
Maximum Distance from Spindle to Drilling Table: 690 mm
Maximum Distance from Spindle to Machine Base: 1,200 mm
Machine Base Work Area: 500 × 300 mm
Machine Base T-Groove Size: 15 mm
Machine Base T-Groove Quantity: 2
Machine Base T-Groove Spacing: 120 mm
Packaging Unit: 1 Piece

Scope of Delivery:

• Optimum OPTIdrill DQ 25 Upright Drill
• Quick-action drill chuck (1–16 mm)
• T-nuts
• Drift punch

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
